Showtec TR-512 INSTALL DMX Trigger / Recorder

TR-512-INSTALL



Product Code: TR-512-INSTALL

Brand: Showtec



Showtec TR-512 INSTALL DMX Trigger / Recorder

Brand: Showtec

Showtec TR-512 INSTALL DMX Trigger / Recorder

Product Code: TR-512-INSTALL

£162.00

100 in stock

4 to 5 Working Days Delivery

Qty

User Manual

Download now

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later

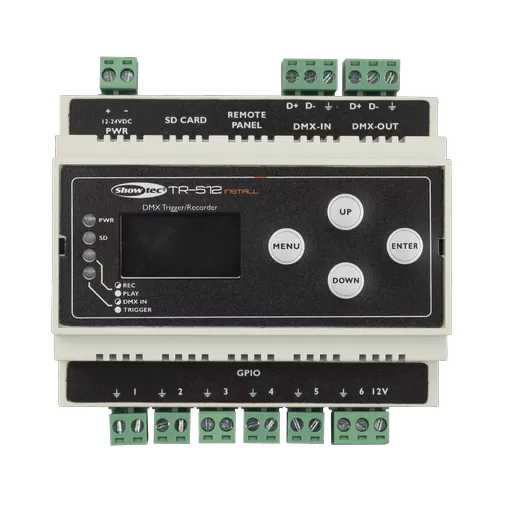

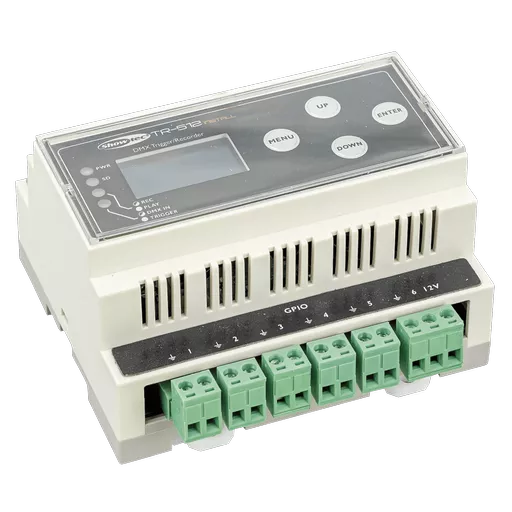

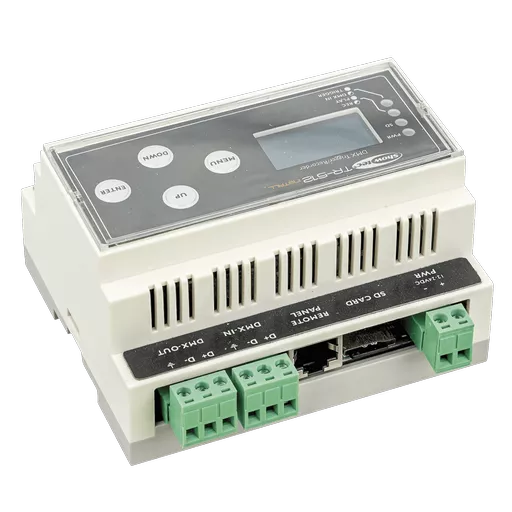

The Showtec TR-512 Install is the ideal compact fixed-installation DMX Recorder/Playback unit which can trigger any lightshow in a simple way.

The TR-512 Install can record and playback several shows which can be stored on the included micro-SD card. Each show can be played in loop mode ore single play. Even an auto start on power-up or delayed start can be set in order to have precise control over your show.

There are 6 GPIO pins available to start or stop your shows by external triggers like switches or motion detection sensors. Also a dedicated wall remote panel can easily be connected by normal cat-5 cable. The din-rail mounted TR-512 is the right product to trigger your shows or scenes in theme parks, museums, shops or other system integration projects.

Please note that this DMX Recorder/Playback unit is ONLY for use with Wall Panel Remote.

  • Compatible with Wall Panel Remote (50827/50828)
  • Bi-directional communication to wall panel
  • 6 external universal triggers (GPIO)
  • Optical isolated DMX ports
  • Record and playback function

  • Bi-directional communication to wall panel
  • 6 external universal triggers (GPIO)
  • Optical isolated DMX ports
  • Record and playback function
  • Power Supply 12 VDC
  • Power Consumption 6W
  • Power Connector in Phoenix
  • DMX Connector Phoenix In/Out
  • DMX Connector in Phoenix
  • DMX Connector out Phoenix
  • Connector 1 RJ45
  • Length (mm) 106 mm
  • Width (mm) 87 mm
  • Height (mm) 58 mm
  • Weight 0.18 kg
  • IP Rating IP20 (indoor use only)
