Showtec TR-512 Pocket Compact DMX Trigger Recorder

Brand: Showtec

Showtec TR-512 Pocket Compact DMX Trigger Recorder

Product Code: TR-512-POCKET

£146.00

100 in stock

4 to 5 Working Days Delivery

Qty

User Manual

Download now

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later

455 reviews on

Product Details

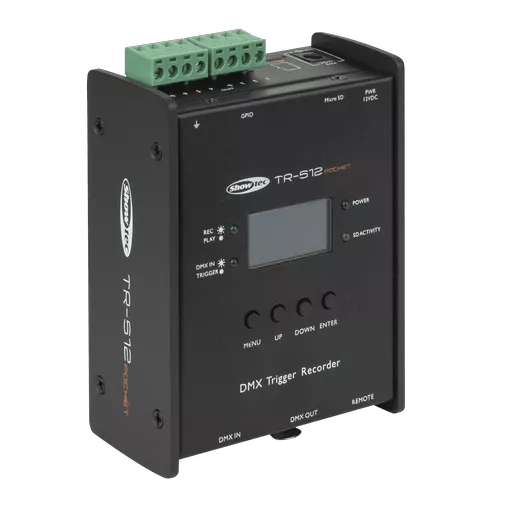

The Showtec TR-512 Pocket is a compact DMX Recorder/Playback unit that can trigger your light show in an uncomplicated way.

The TR-512 Pocket can record and playback several shows, which are stored on the included micro-SD card. The card is big enough to hold shows lasting 24 hours. Each show can be played in loop mode or single play. An auto start on power-up or delayed start can be set. There are 6 GPIO pins available to start or stop your shows using external triggers, like regular switches, relays, motion detection sensors, et cetera.

Bidirectional communication with the dedicated Wall Panel Remote for TR-512 (order codes 50827, 50828) can be set up via the RJ45 terminal using regular CAT5 cable. The TR-512 Pocket is the right product for triggering your shows or scenes in theme parks, museums, shops, and other system integration projects.

Please note that this TR-512 Pocket is NOT suitable for the TR-512 Wallpanel.

Compatible with TR-512 Install/Pocket (50827/50828)
Bi-directional communication to Wall Panel Remote

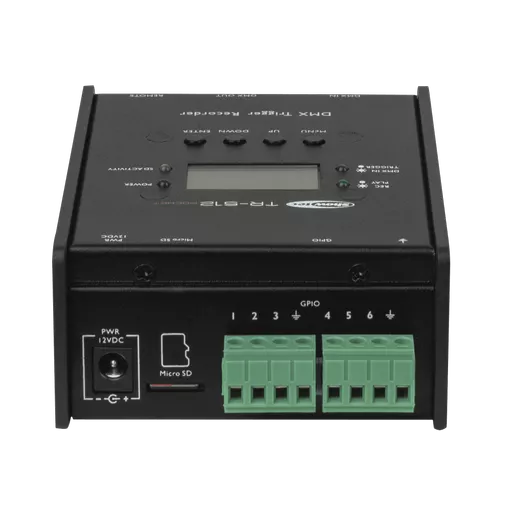

6 External universal triggers (GPIO)
Optically isolated DMX ports
Record and playback function

Bi-directional communication to Wall Panel Remote
6 External universal triggers (GPIO)
Dedicated Wall Panel Remote for TR-512 Install/Pocket (50827/28)
Optically isolated DMX ports
Record and playback function
Power Supply 12 VDC
Power over Ethernet (PoE) No
Power Consumption 6W
Power Connector in - Low Voltage DC plug

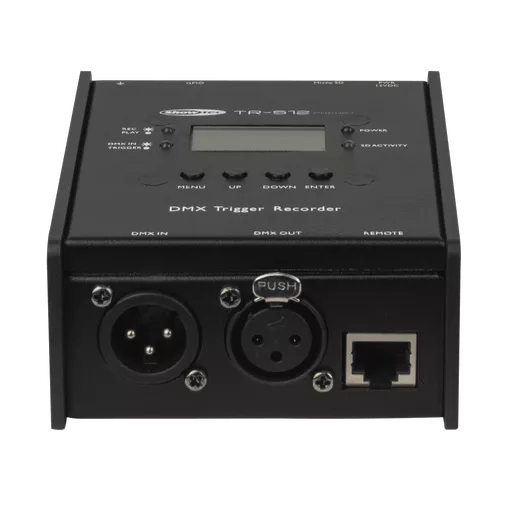

DMX Connector - XLR 3P In/Out
Data Connector in - RJ45
Length (mm) 115 mm
Width (mm) 85 mm
Height (mm) 45 mm
Weight 0.45 kg
IP Rating IP20 (indoor use only)
Housing Metal
Colour Black
LED Indicators
Operation mode, Power, Signal
Control Mode DMX, GPIO, Manual, Remote
DMX Channels 512
Protocols DMX
Display OLED
Universes 1

Showtec TR-512 Pocket Compact DMX Trigger Recorder

Showtec TR-512 Pocket Compact DMX Trigger Recorder

£146.00
