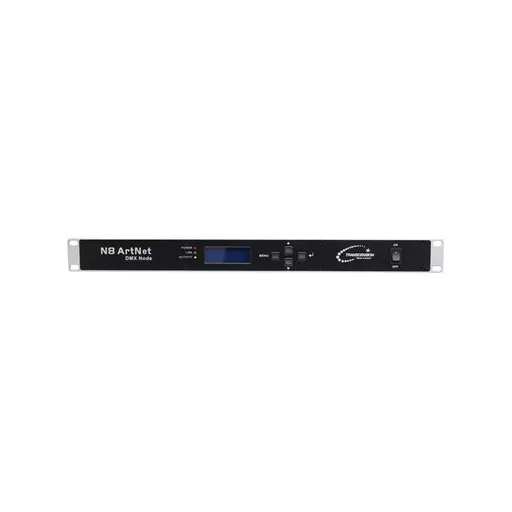

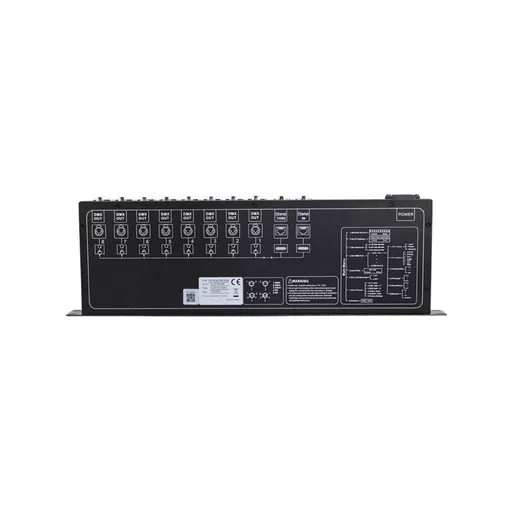

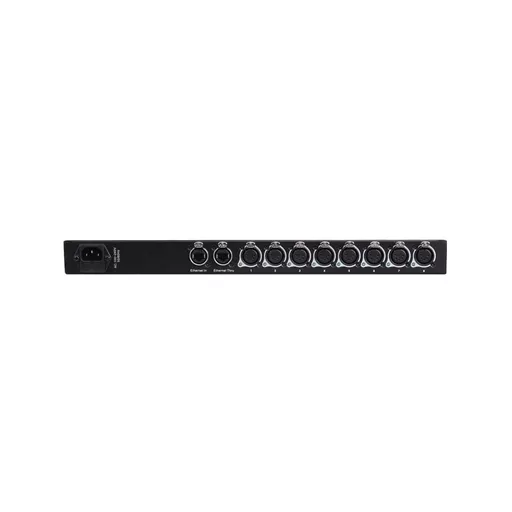

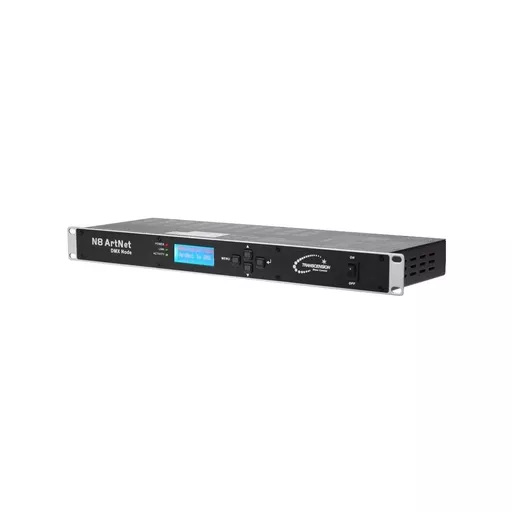

Transcension N8 Art-Net / DMX Node MKII Processor

CONT26



Product Code: CONT26



Transcension N8 Art-Net / DMX Node MKII Processor

Transcension N8 Art-Net / DMX Node MKII Processor

Product Code: CONT26

£495.00

130 in stock

2 to 3 Working Days Delivery

Qty

User Manual

Download now

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later




This fully configurable, multipurpose Art-Net™ node features 8 universes, allowing users to transmit data through an Ethernet network, with up to 512 DMX channels per universe. This solution makes light work of controlling LED fixtures that use multiple channels, and has three modes of operation: Art-Net to DMX node, 8 universe DMX to Art-Net processor or DMX splitter/buffer. It has 8 optically isolated DMX outputs via 5-Pin XLR, Neutrik etherCON input/through and a fused IEC mains input. LEDs on the front panel provide constant activity status information regarding the network, input data and triggered universes.




  • 8-way Art-Net to DMX processor
  • Art-Net input/through via etherCON RJ45
  • 4096 channels
  • 4 button menu with LCD display
  • 6 user presets
  • 10/100M LAN interface
  • Supports TCP/IP protocol
  • Manual IP address selection
  • 8 x DMX outputs via 5-Pin XLR
  • RDM Support
  • Electronically isolated inputs and outputs
  • IEC power input
  • 19”/1U rack mountable
  • Power supply: 100~240V, 50/60Hz
  • Dimensions (H x W x D): 44 x 483 x 152mm
  • Weight: 1.98kg
