The ADJ Focus CMY Compact is a professional hybrid LED moving head combining beam, spot and wash capabilities in a compact, touring-ready fixture. Its powerful 400W LED engine produces up to 14,500 lumens, making it suitable for concert stages, theatres, corporate productions, live venues and houses of worship.

A motorised 3°–52° zoom and motorised focus provide the flexibility to create narrow aerial beams, defined gobo projections or wide wash effects. Fast 3-phase pan and tilt motors, 16-bit positioning and automatic movement correction deliver the speed and precision required for professional lighting designs.

CMY Colour Mixing and Creative Effects

Full CMY colour mixing provides a broad selection of colours without relying solely on fixed filters. Variable CTO adjustment from 3200K to 8500K makes it easier to coordinate the fixture with warm or cool lighting, while the seven-colour dichroic wheel includes a High CRI filter for applications requiring improved colour rendering.

Two gobo wheels provide a choice of rotating, indexable patterns and static designs. These can be combined with the circular or linear rotating prisms to produce layered aerial effects. Separate light and heavy frost filters help transform the focused output into a softer, wider wash.

Professional Control and Connectivity

The Focus CMY Compact supports DMX, RDM, Art-Net and sACN control, alongside Aria X2 wireless management and cable-free DMX. NFC configuration, a six-button touch control panel and a reversible full-colour display make setup and fixture addressing more convenient.

Locking power, five-pin DMX and RJ45 network connections are provided for professional installations and touring systems. Pan and tilt transit locks and included quick-release omega clamps also help simplify transportation and rigging.

Key Features

• Professional beam, spot and wash hybrid moving head
• 400W LED engine producing up to 14,500 lumens
• 6900K output colour temperature, ±350K
• Motorised 3°–52° zoom
• Motorised focus
• Full CMY colour mixing
• Variable CTO adjustment from 3200K to 8500K
• Seven-colour dichroic wheel with High CRI filter
• CRI 64, with CRI 80 or 90 options using the HCRI filter
• Eight interchangeable, rotating and indexable gobos
• Ten static gobos
• Rotating six-facet circular and six-facet linear prisms
• Light and heavy frost filters
• Smooth 0–100% dimming and variable strobe
• 3-phase pan and tilt motors with automatic position correction
• 16-bit pan and tilt positioning
• 540° or 630° pan and 270° tilt
• DMX, RDM, Art-Net and sACN control protocols
• Three DMX operating modes: Basic, Standard and Extended
• Aria X2 wireless management and cable-free DMX
• NFC configuration system
• Six-button touch control panel
• Full-colour 180° reversible LCD display

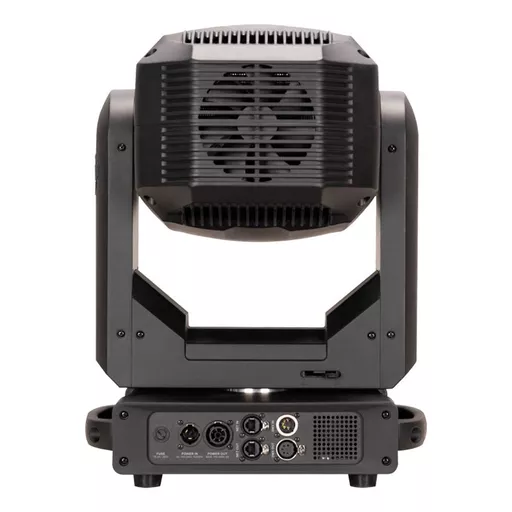

• Five-pin XLR DMX and locking RJ45 network In/Thru connections
• IP65-rated power-locking In/Thru connections
• Pan and tilt transit locks
• Quick-release omega clamps included
• Fan-cooled operation
• 100–240V, 50/60Hz power supply
• 450W power consumption
• Dimensions (H × W × D): 597 × 360 × 234mm
• Weight: 20.2kg

Frequently Asked Questions

Q: Can the ADJ Focus CMY Compact produce beam, spot and wash effects?

A: Yes. Its motorised 3°–52° zoom, motorised focus and two frost filters allow it to produce narrow beams, focused projections and wide wash effects.

Q: Does it have full CMY colour mixing?

A: Yes. The fixture provides full CMY colour mixing, variable CTO adjustment from 3200K to 8500K and a seven-colour dichroic wheel containing a High CRI filter.

Q: What gobos are included?

A: It has two gobo wheels. One contains eight interchangeable, rotating and indexable gobos, while the second contains ten static gobos.

Q: What prism effects are available?

A: The fixture includes a rotating six-facet circular prism and a rotating six-facet linear prism. These can be used to split and expand projected beams and gobo effects.

Q: Does the Focus CMY Compact support wireless DMX?

A: Yes. Aria X2 provides cable-free DMX alongside wireless fixture management and monitoring. Wired DMX, RDM, Art-Net and sACN control are also supported.
