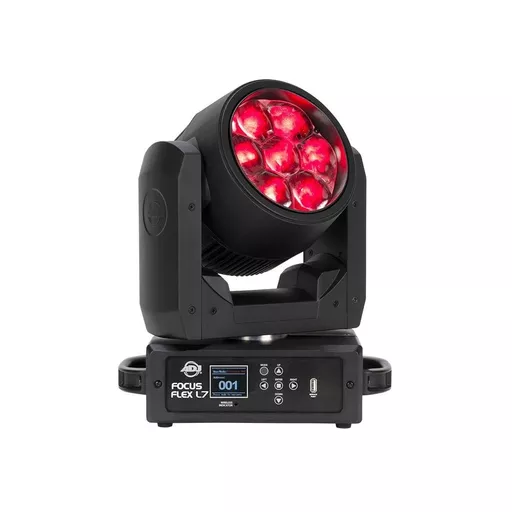

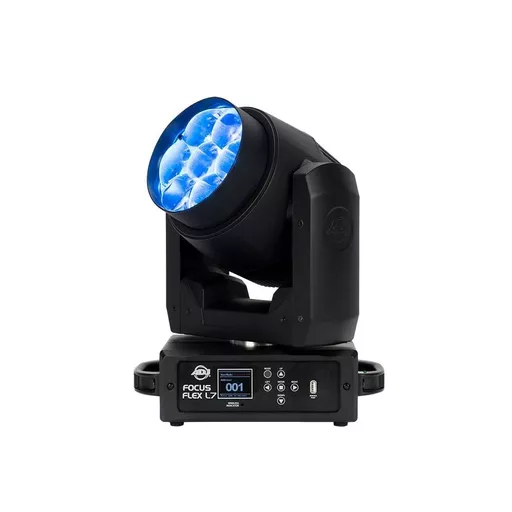

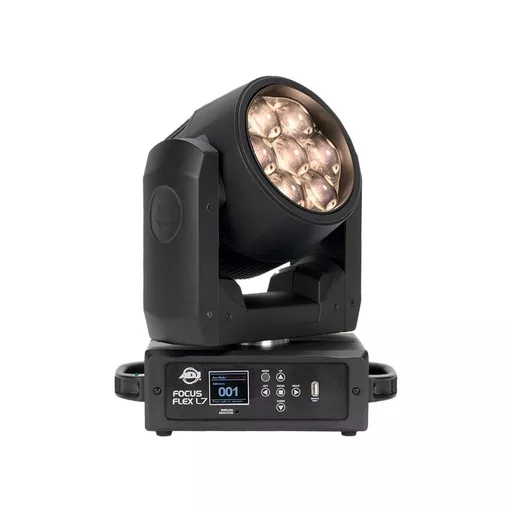

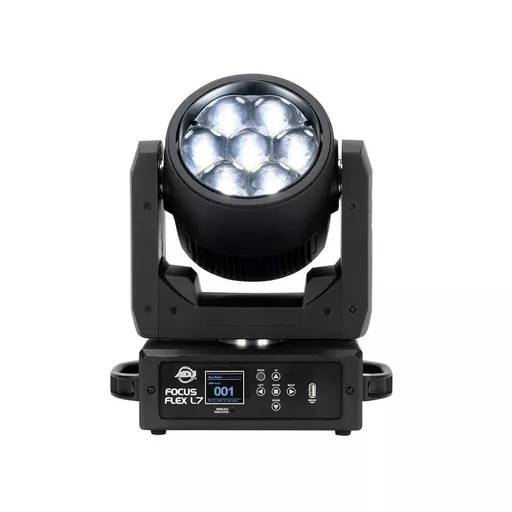

ADJ Focus Flex 7 Moving Head 7 x 40w RGBL LEDs

Brand: ADJ

ADJ Focus Flex 7 Moving Head 7 x 40w RGBL LEDs

Product Code: FOCUSFLEX7

£1352.00

2 in stock

2 to 3 Working Days Delivery

Qty

User Manual

Download now

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later

455 reviews on

Product Details

Compact, quick and punchy, the Focus Flex L7 from ADJ Lighting is a versatile moving head luminaire capable of creating wash, beam and pixel effects. Designed to provide lighting designers with both flexibility and creative potential, it is ideal for event production and rental applications as well as for permanent installation in concert halls, theatres, nightclubs and churches.

The fixture is powered by an array of seven potent 40-Watt 4-in-1 RGBL colour mixing LEDs, each of which can be controlled independently. Through mixing the intensity of the primary LED colours, a huge gamut of output colours can be created to suit any mood or desired look. The fixture features a convenient Virtual CMY mode, which allows control alongside native CMY colour mixing fixtures using hardware/software CMY colour picker/pallete tools. It also offers Virtual Foreground and Background Colour Wheel control as well as white light output with variable colour temperature of between 2700K to 10,000K. This can be accessed either via linear control or a collection of 10 convenient presets. Meanwhile, through controlling the seven LEDs independently, the fixture can be used to generate impressive pixel-mapped effects. All of the LEDs used to construct the Focus Flex L7 are colour calibrated to ensure uniform output of fixtures from different batches.

Motorized zoom allows the field angle of the Focus Flex L7 to be altered remotely between a wide 55-degrees and narrow 6-degrees, which allows it to be used for creating both broad washes and concise beams. Its extremely quick motor movement allows for the creation of stunning high-impact aerial effects, while 16-bit fine motor control ensures precise positioning.

A flexible fixture, the Focus Flex L7 offers a range of DMX mode options (requiring between 16 and 28 control channels), appropriate to different applications, as well as a variety of customizable options, including selectable LED refresh rate and dimming modes. These are accessed through a colour LCD display panel with 6-button menu interface located on the side panel of the fixture alongside a USB port which can be utilized for easy updates of future firmware releases.

7 x 40-Watt RGBL LEDs (50,000 hr.)
CRI: 83.4
CT: 2700K ~ 10,000K
14.326 lux / 4° beam @ 5m
367 lux / 35° beam @ 5m
Lumens: 3500 (Zoom Out, full on)

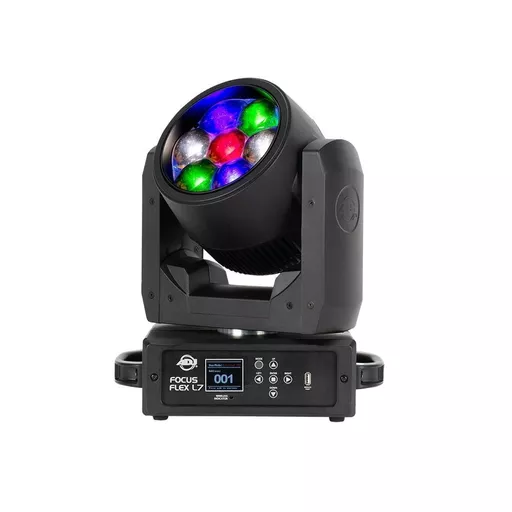

Moving Head Pixel Wash with Pixel Effects
Electronic Strobe / Dimmer
Pan/Tilt: 540/630° x 265/230°
Beam Angle: 4° ~ 35°
Field Angle: 6° ~ 55°
Colour Calibrated Pixels so units match from batch to batch
Virtual CMY DMX Control Modes
Virtual Foreground and Background Colour Wheel Control
Selectable LED Refresh Rates (900Hz~25kHz)
Selectable Dim Modes: Standard, Stage, TV, Arch., Theatre, Stage 2 and user settable Dim Speed (0.1S~10S)
4 Dim Curves: Square, Linear, Inv. Square and S. Curve
0-100% smooth dimming
Various strobe speeds
USB firmware update port
Fan Cooled
Antenna for WiFLY EXR Wireless DMX
Virtual CMY DMX Control Modes
Virtual Foreground and Background Colour Wheel Control
Built-In Colour Macros
2,700K ~ 10,000K Linear White Colour Temperature Control
Colour Temperature Presets: 2,700, 3,000, 3,200, 4,000, 4,500, 5,000, 5,600, 6,500, 8,000 and 10,000K
7 DMX Modes - 16/25/34/42/50/25 (CMY)/28 (CMY) Channels
Colour LCD display with 6-button function menu
Control Mode: DMX512 or internal programs
Built-In Effect Pixel Programs with Speed and Fade Control
Various strobe speeds
USB firmware update port
Wired Digital Communication Network
RDM (Remote Device Management)
WiFLY EXR Wireless DMX built-in (2500 ft. / 700M line of sight)
Pan: 540/630 degrees
Tilt: 265 degrees
DMX Connections: 5-pin XLR In/Out
Power Connections: Indoor Locking Power In/Out
Multi-voltage operation: AC90-240V, 50/60Hz
Max power consumption: 337W
Dimensions (LxWxH): 233 x 177 x 349mm
Weight: 7 kg
What's Included
Omega Bracket
1.83M locking power cable
Safety Cable
