ADJ Vizi Xtreme Moving Head

VIZIXTREME



Product Code: VIZIXTREME

Brand: ADJ



ADJ Vizi Xtreme Moving Head

Brand: ADJ

ADJ Vizi Xtreme Moving Head

Product Code: VIZIXTREME

£975.00

Out of Stock

2 to 3 Working Days Delivery

Out of stock.

PayPal Pay Later

Klarna

Technical Drawing

Download now

Free Standard Delivery over £50

Spend another £50 to qualify

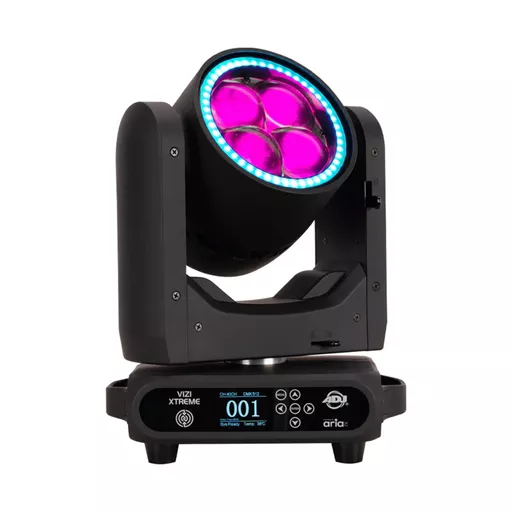

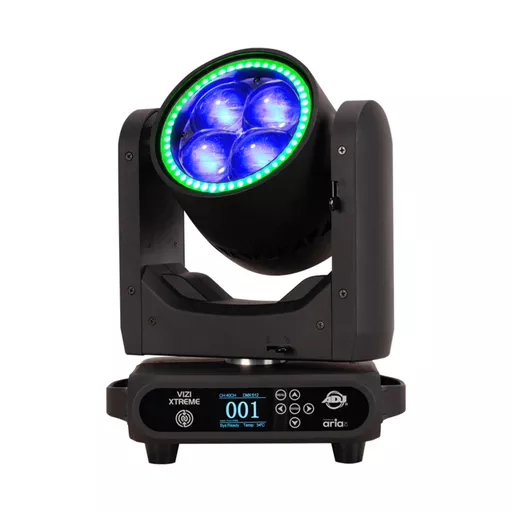

The ADJ Vizi Xtreme is a compact professional moving head combining high-speed movement, powerful RGBL output and creative pixel effects. Its four 60W primary RGBL LEDs are surrounded by 48 x 2.5W RGBW LEDs, producing up to 2,700 lumens with smooth colour blending and a wide selection of visual effects.

Each primary RGBL LED can be controlled individually, while the surrounding RGBW ring is divided into six independently controlled zones. This dual pixel system allows programmers to create colour chases, animated patterns and contrasting effects across the main output and outer ring.

Tight Beams and Wide Washes

A motorised 3°–45° zoom allows the Vizi Xtreme to move from a concentrated beam to a wide wash. Colour-temperature presets ranging from 2700K to 10,000K provide additional flexibility for stage, event and installation applications.

Smooth 0–100% dimming and a variable electronic strobe provide further control over the output.

Fast Continuous Movement

Three-phase motors provide fast, responsive movement with 16-bit positioning and automatic pan and tilt correction. The fixture offers conventional 540° pan and 270° tilt alongside optional continuous 360° pan and tilt rotation.

This continuous movement capability allows lighting designers to create effects that are not restricted by conventional pan and tilt endpoints. Transit locks help protect the movement system during transportation.

Professional Network and Fixture Control

The Vizi Xtreme supports DMX, RDM, Art-Net and sACN control protocols. Five selectable DMX modes range from 28-channel Basic operation to a comprehensive 73-channel Extended mode.

ADJ’s Aria X2 Wireless Management System and NFC support provide additional options for fixture management. A full-colour, 180° reversible LCD screen and six-button touch panel provide access to onboard settings.

Key Features

  • Compact professional pixel zoom wash moving head
  • Four 60W primary RGBL LEDs
  • 48 x 2.5W RGBW LEDs in the outer ring
  • 2,700-lumen output
  • Individual pixel control of the four primary RGBL LEDs
  • Six-zone control of the RGBW ring
  • Eight RGBW LEDs in each ring zone
  • Motorised 3°–45° zoom
  • Colour-temperature presets from 2700K to 10,000K
  • CRI rating of 60
  • Smooth 0–100% dimming
  • Variable electronic strobe
  • Three-phase pan and tilt motors
  • 16-bit pan and tilt positioning
  • Automatic pan and tilt correction
  • 540° pan with optional continuous 360° rotation
  • 270° tilt with optional continuous 360° rotation
  • Pan and tilt transit locks
  • DMX, RDM, Art-Net and sACN control
  • DMX modes: 28, 40, 54, 63 or 73 channels
  • Aria X2 Wireless Management System
  • NFC system
  • Full-colour, 180° reversible LCD menu
  • Six-button touch control panel
  • Five-pin Seetronic locking DMX input and thru
  • Seetronic RJ45 locking input and thru
  • IP65-rated locking power input and thru connections
  • Quick-release omega clamps included
  • Fan-cooled operation
  • Two-year manufacturer’s warranty
  • Power supply: 100–240V AC, 50/60Hz
  • Power consumption: 675W
  • Dimensions (H x W x D): 364.2 x 276 x 200mm
  • Weight: 7kg

Frequently Asked Questions

Q: Can the Vizi Xtreme produce both beam and wash effects?

A: Yes. Its motorised zoom adjusts from a narrow 3° beam to a wide 45° wash.

Q: Are all the LEDs individually controllable?

A: The four primary RGBL LEDs offer individual pixel control. The 48 RGBW ring LEDs are divided into six independently controlled zones, with eight LEDs in each zone.

Q: Can the pan and tilt rotate continuously?

A: Yes. In addition to conventional 540° pan and 270° tilt, the fixture offers optional continuous 360° rotation on both axes.

Q: Which control protocols does the Vizi Xtreme support?

A: It supports DMX, RDM, Art-Net and sACN, with five selectable DMX modes providing different levels of control.

Q: Does the Vizi Xtreme support wireless fixture management?

A: Yes. It supports ADJ’s Aria X2 Wireless Management System and also includes NFC functionality.
