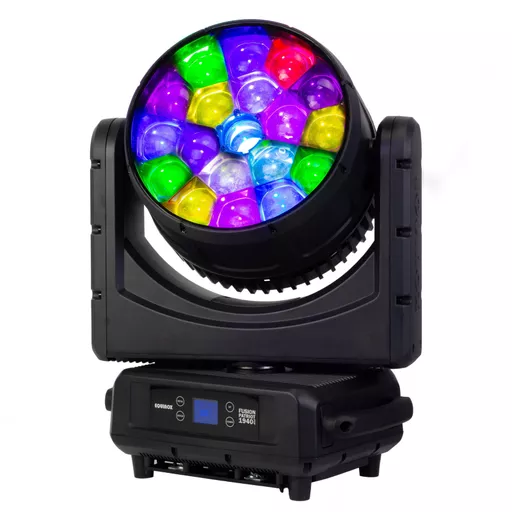

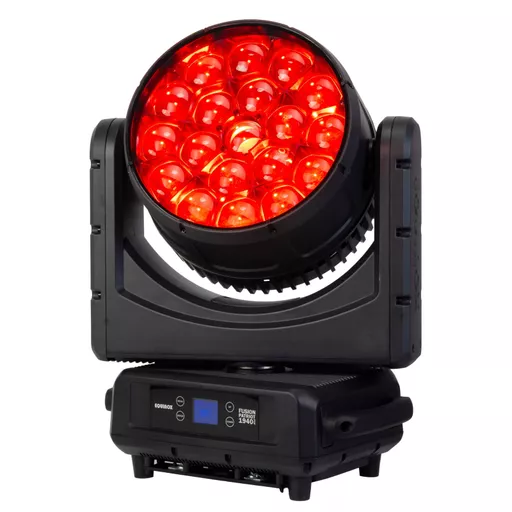

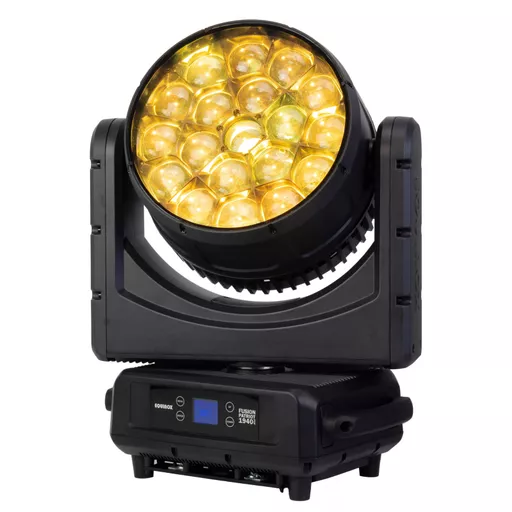

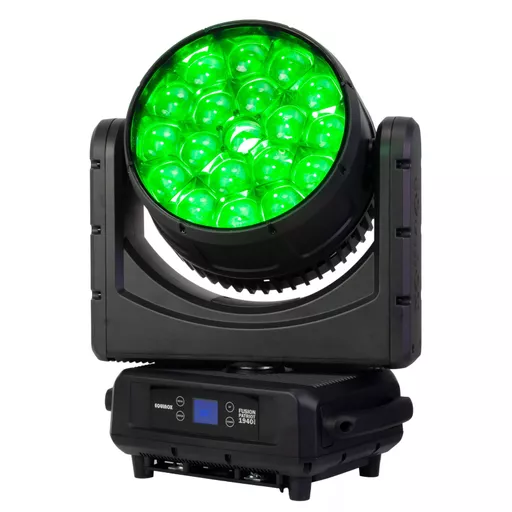

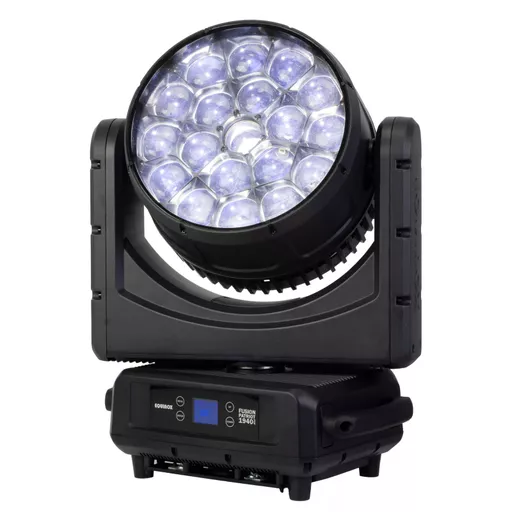

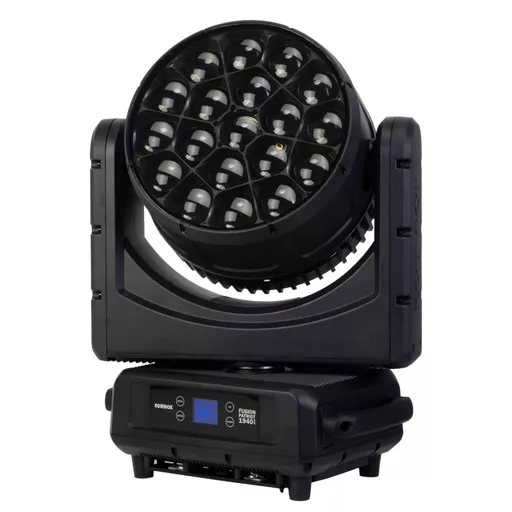

The Equinox Fusion Patriot 1940FXP is a professional IP65-rated pixel beam and wash moving head designed for touring productions, festivals, concert stages, outdoor events and demanding installations.

Its 19 individually controllable 40W RGBW LEDs deliver powerful output, flexible colour mixing and full pixel-mapping capabilities. A motorised zoom, rotating front lens and extensive DMX control allow the fixture to produce everything from concentrated beams to wide washes and complex multi-beam effects.

Powerful Beam-to-Wash Zoom

The motorised zoom provides an adjustable beam angle from a tight 4° beam to a wide 55° wash. At full output, the fixture produces 110,743 lux at two metres with the 4° beam and 14,522 lux at two metres with the 55° wash.

This wide zoom range allows the Patriot 1940FXP to change between intense aerial beams, stage washes and broad colour coverage without changing fixtures.

Full Pixel Mapping and Rotating Lens Effects

Individual control of the 19 RGBW LEDs enables detailed pixel-mapped animations, colour chases and dynamic patterns. Five selectable DMX modes provide different levels of control, ranging from an accessible 18-channel mode to a comprehensive 111-channel pixel-mapping mode.

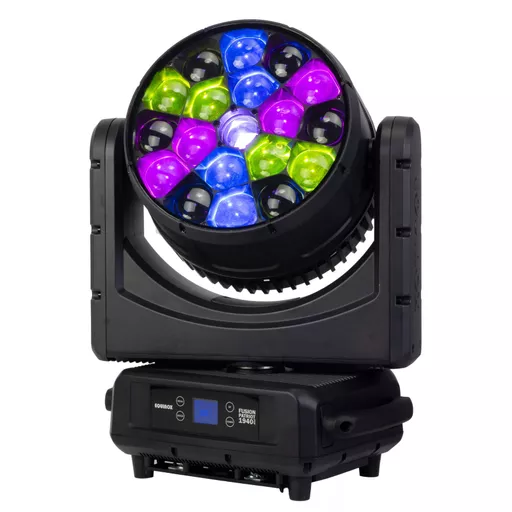

Motorised front-lens rotation transforms the output into striking multi-beam effects, adding another creative layer beyond conventional beam and wash operation.

Professional Movement and Output Control

Sixteen-bit pan and tilt positioning provides precise movement, supported by automatic pan and tilt correction. The fixture offers 540° pan and 220° tilt, together with a forward-facing show mode for applications where effects need to remain directed towards the audience or performance area.

Output control includes smooth 0–100% dimming, variable strobe and four selectable dimming curves. Adjustable refresh-rate presets from 650Hz to 25kHz provide additional flexibility for live production and camera-based applications.

Designed for Professional Lighting Systems

The IP65-rated enclosure allows the Patriot 1940FXP to be used in demanding indoor and outdoor production environments. Temperature-controlled fans manage cooling according to operating conditions.

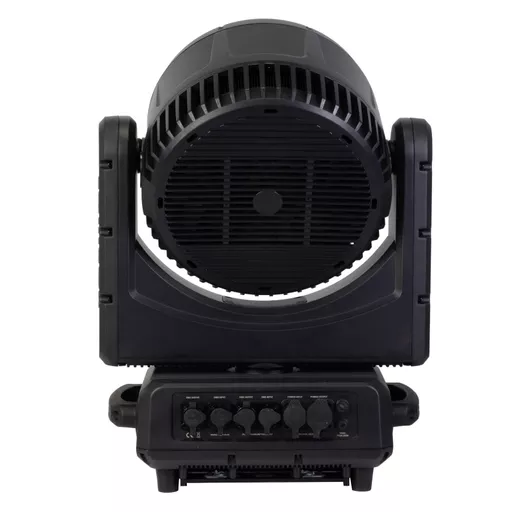

Professional connectivity includes three-pin and five-pin DMX input and output, RDM support, W-DMX-compatible wireless control and PowerTwist TR1 power input and output. A 1.8-inch LCD menu provides access to fixture settings, while the included quick-release omega clamps simplify installation.

Key Features

• Professional IP65 pixel beam and wash moving head
• 19 x 40W quad-colour RGBW LEDs
• Full individual pixel-mapping capabilities
• Motorised zoom with 4°–55° beam angle
• 110,743 lux at 2m with 4° beam at full output
• 14,522 lux at 2m with 55° wash at full output
• Motorised front-lens rotation
• Mid-air multi-beam effects
• Colour-temperature presets
• CRI rating of 70
• Five selectable refresh-rate presets from 650Hz to 25kHz
• DMX modes: 18, 21, 35, 96 or 111 channels
• W-DMX Sweden-compatible wireless control
• RDM remote device management
• Automatic, manual and primary/secondary operating modes
• Forward-facing show mode
• 16-bit pan and tilt positioning
• Automatic pan and tilt correction
• 540° pan and 220° tilt
• Smooth 0–100% dimming
• Linear, square-law, inverse square-law and S-curve dimming
• Variable-speed strobe
• Temperature-controlled cooling fans
• 1.8-inch LCD display with four-button menu
• Three-pin and five-pin XLR DMX input and output
• PowerTwist TR1 power input and output

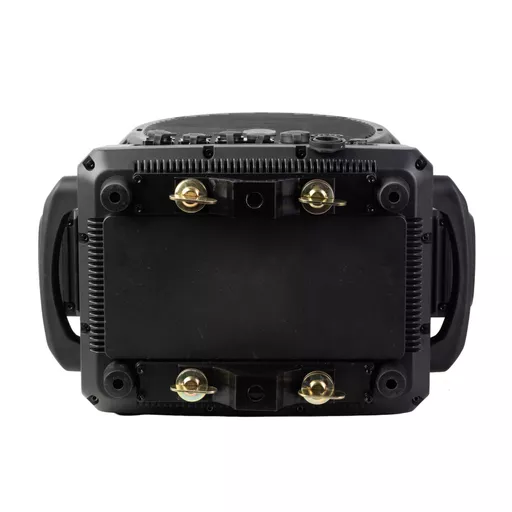

• Quick-release omega clamps included
• Power supply: 100–240V AC, 50/60Hz
• Power consumption: 813W
• Dimensions (H x W x D): 565 x 405 x 245mm
• Weight: 22.7kg

Frequently Asked Questions

Q: Can the Patriot 1940FXP operate as both a beam and wash light?

A: Yes. Its motorised 4°–55° zoom allows it to produce a narrow, high-intensity beam or a wide wash from the same fixture.

Q: Can each RGBW LED be controlled individually?

A: Yes. The fixture supports full pixel mapping, with its higher-channel DMX modes providing detailed control over the 19 individual RGBW LEDs.

Q: What DMX modes are available?

A: The Patriot 1940FXP provides 18, 21, 35, 96 and 111-channel DMX modes, allowing programmers to choose between streamlined operation and comprehensive pixel control.

Q: Does it support wireless DMX?

A: Yes. The fixture provides wireless control using a W-DMX Sweden-compatible transceiver system.

Q: Is the Patriot 1940FXP suitable for outdoor events?

A: Yes. Its IP65 rating makes it suitable for demanding indoor and outdoor professional applications when installed and operated in accordance with the manufacturer’s instructions.

Q: Are mounting clamps included?

A: Yes. Quick-release omega clamps are included to assist with professional rigging and installation.
