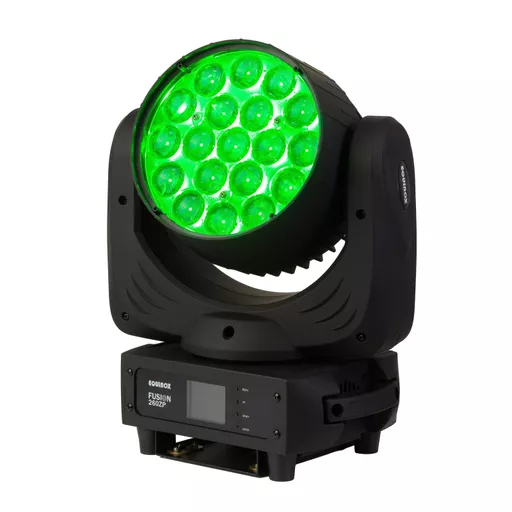

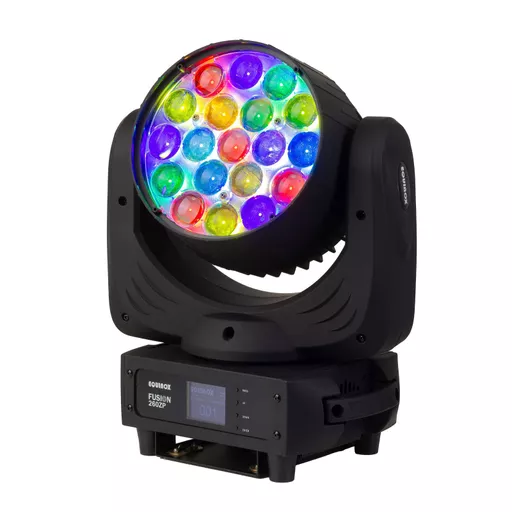

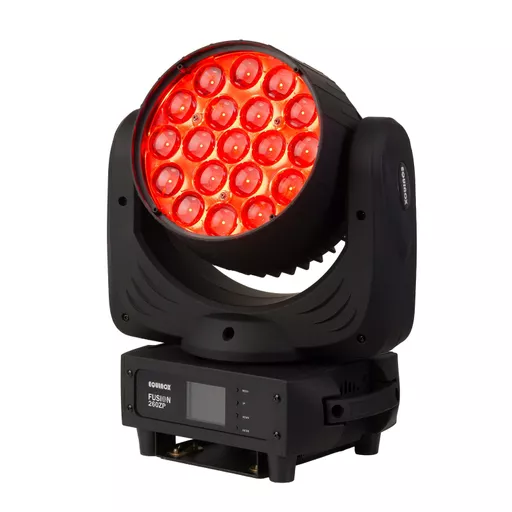

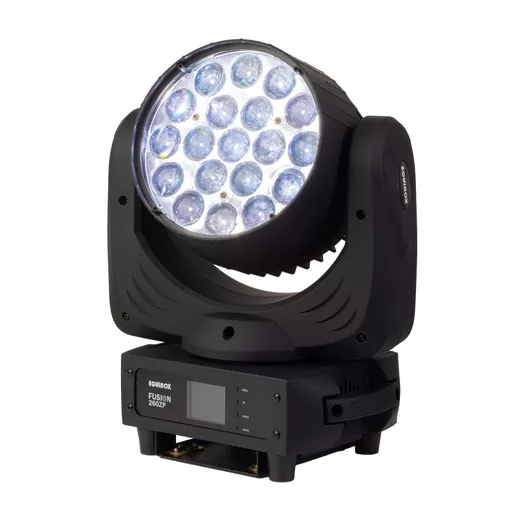

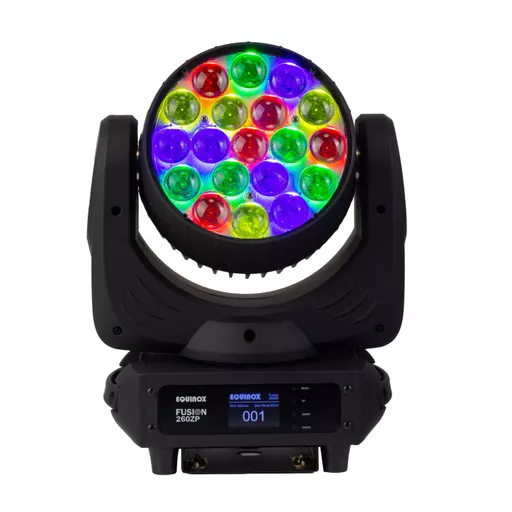

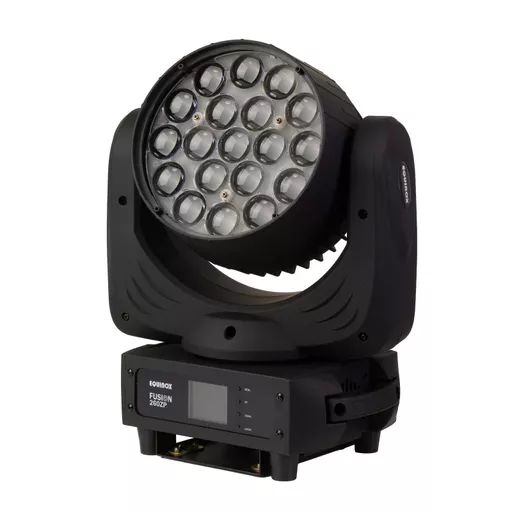

Equinox Fusion 260ZP Moving Head Wash Light

FUSION260ZP



Product Code: FUSION260ZP

Brand: Equinox



Equinox Fusion 260ZP Moving Head Wash Light

Brand: Equinox

Equinox Fusion 260ZP Moving Head Wash Light

Product Code: FUSION260ZP

£645.00

192 in stock

2 to 3 Working Days Delivery

Qty

PayPal Pay Later

Klarna

User Manual

Download now

Free Standard Delivery over £50

Spend another £50 to qualify




The Equinox Fusion 260ZP is a professional RGBL LED wash moving head designed for powerful colour coverage, pixel effects and flexible beam control in one fixture. Built for concerts, theatres, live events, venues and production rigs, it is ideal when you need a moving head wash light that can deliver everything from wide stage coverage to tight aerial beam effects.

At the heart of the fixture are 19 x 12W RGBL quad colour LEDs. The added lime element helps create a wider range of colour tones, from vivid saturated colours to softer pastel shades and cleaner colour temperature presets. This makes the Fusion 260ZP a strong choice for lighting designers who need both punchy show looks and more refined wash lighting for stage, theatre and event environments.

A key advantage of the Fusion 260ZP is its motorised zoom, allowing the beam to move from a narrow 6 degree angle for tighter mid air effects through to a wide 50 degree wash for broader coverage. This makes it more versatile than a fixed angle wash moving head, helping one fixture adapt to different venue sizes, rig positions and show styles.

The fully pixel mappable LEDs allow creative control across the face of the fixture, making it possible to build colour chases, animated patterns and layered movement effects as part of a larger lighting design. Combined with smooth 16 bit pan and tilt movement with auto correction, the Fusion 260ZP is well suited to programmed shows where accuracy and repeatability matter.

For integration into professional rigs, the fixture includes 7 selectable DMX channel modes, wireless DMX, ArtNet, PowerTwist TR1 connections and quick release omega clamps. Temperature controlled fans and refined dimming control support dependable performance during longer shows, while the compact 8.5kg housing keeps it practical for both touring and installation.

Best for theatres, concert stages, live venues, production companies, houses of worship and event lighting professionals looking for a bright RGBL moving head wash with zoom, pixel mapping and modern control options.

  • 19 × 12W quad-colour LEDs (RGBL)
  • Adjustable beam angle: 6°–50°
  • 6° – 32,722 Lux @ 2m (full on)
  • 50° – 3,896 Lux @ 2m (full on)
  • CRI: 89
  • Refresh rate: 650Hz, 1.5kHz, 3.6kHz, 12kHz or 25kHz selectable
  • Motorised zoom
  • Full pixel mapping capabilities
  • Control protocols: DMX, Kling-net, Art-net and sACN
  • DMX channels: 2/9/18/23/27/85 or 93 selectable
  • Wireless control (W-DMX Sweden compatible transceiver)
  • Auto, sound active and primary/secondary modes
  • Forward facing show modes
  • Colour temperature presets
  • Pan/tilt auto correction
  • 16-bit pan/tilt positioning
  • Pan: 540°, Tilt: 270°
  • 0–100% dimming
  • Variable strobe
  • 4 dimming curves: Linear, square law, inverse square law and S-curve

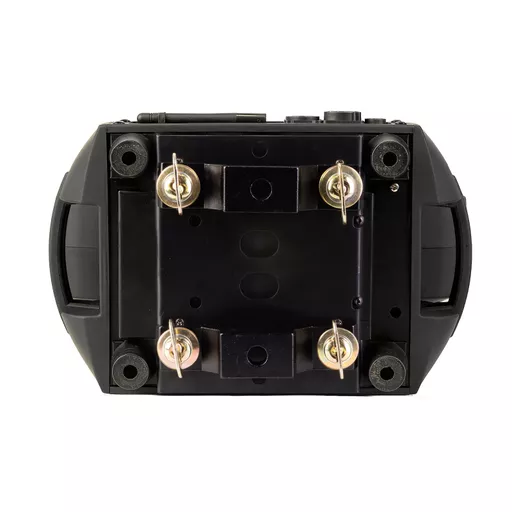

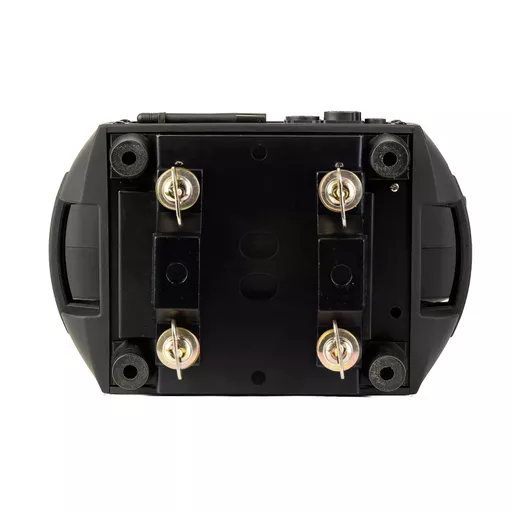

  • Supplied with quick release omega clamps
  • Square hole spacing allows clamp mounting in all orientations
  • 4-button menu with LCD display

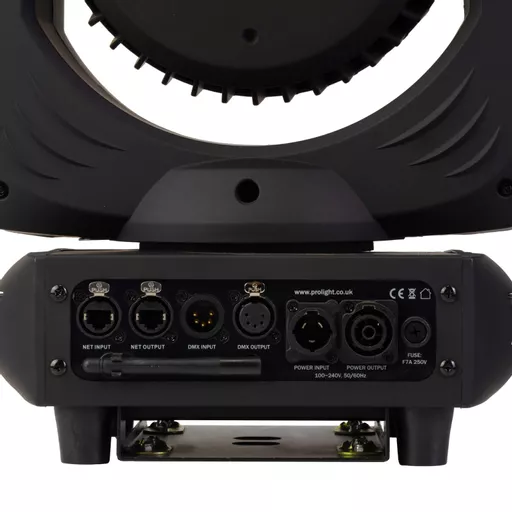

  • PowerTwist TR1 input/output
  • EtherNET input/output
  • 5-pin XLR input/output
  • Temperature controlled fans
  • Power consumption: 323W
  • Dimensions (H x W x D): 414 x 324 x 193mm
  • Weight: 8.5kg

MINI FAQ
Q: Is the Fusion 260ZP a wash light or beam light
A: It is primarily a moving head wash light, but the 6 to 50 degree motorised zoom allows it to create tighter beam style effects as well as wide colour washes.

Q: What does RGBL mean on this moving head
A: RGBL means red, green, blue and lime LEDs. The lime element helps expand the colour range, improving pastel shades, colour temperature options and more natural looking wash tones.

Q: Can the Fusion 260ZP be pixel mapped
A: Yes, the LEDs are fully pixel mappable, allowing colour chases, animated patterns and more creative programmed effects across the fixture face.
