Equinox Fusion 260ZR MKII Moving Head

FUSION260ZRMKII



Product Code: FUSION260ZRMKII

Brand: Equinox



Equinox Fusion 260ZR MKII Moving Head

Brand: Equinox

Equinox Fusion 260ZR MKII Moving Head

Product Code: FUSION260ZRMKII

£451.00

122 in stock

2 to 3 Working Days Delivery

Qty

User Manual

Download now

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later

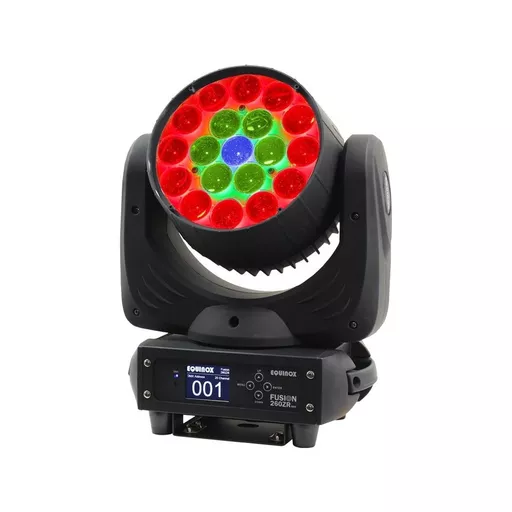

The Equinox Fusion 260ZR MKII is a professional moving head wash light, ideal for stage productions, events, and venue installations. Equipped with 19 x 12W RGBW LEDs, it delivers vibrant colour mixing and powerful output, perfect for creating rich, immersive washes across large areas.

With a motorised zoom range from 6° to 50°, this fixture can transition seamlessly from narrow beams to wide washes, offering great flexibility for lighting designers. Individual pixel control adds dynamic visual effects and colour chases, enhancing show creativity.

The Fusion 260ZR MKII operates in multiple DMX modes and features a 4-button menu with OLED display for easy navigation. It also includes powerCON in/out for daisy-chaining and 3-pin XLR connections for versatile integration.


  • 19 x 12W quad-colour LEDs (RGBW)
  • Adjustable beam angle: 6°- 50°
  • 6° - 40,098 Lux @ 2m (full on),
  • 50° - 6,316 Lux @ 2m (full on)
  • Refresh rate: 650Hz, 1.5kHz, 3.6kHz, 12kHz or 25kHz selectable
  • Motorised zoom
  • Pixel zone mapping
  • DMX channels: 2/8/17 or 25 selectable
  • Auto, sound active and master/slave modes
  • Forward facing show modes
  • Pan/tilt auto correction
  • 16-Bit pan/tilt positioning
  • Pan: 540°, Tilt: 270°
  • 0 - 100% dimming
  • Variable strobe
  • 4 dimming curves: Linear, square law, inverse square law and S-curve

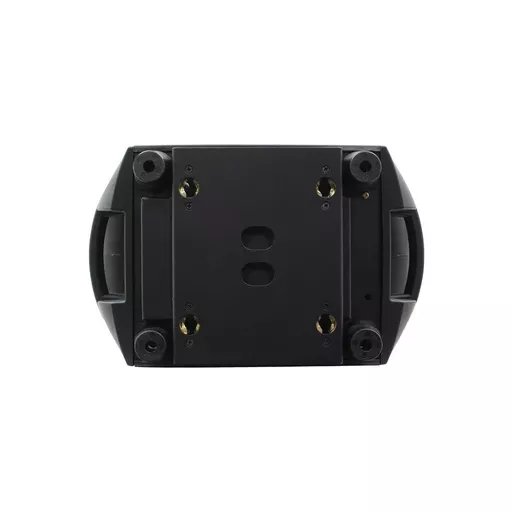

  • Supplied with quick release omega clamps
  • Square hole spacing on omega clamp receivers allows for clamps to be mounted in all orientations

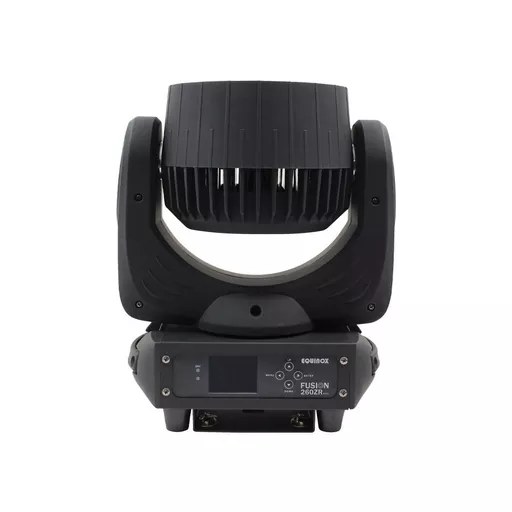

  • 4 button menu with LCD display

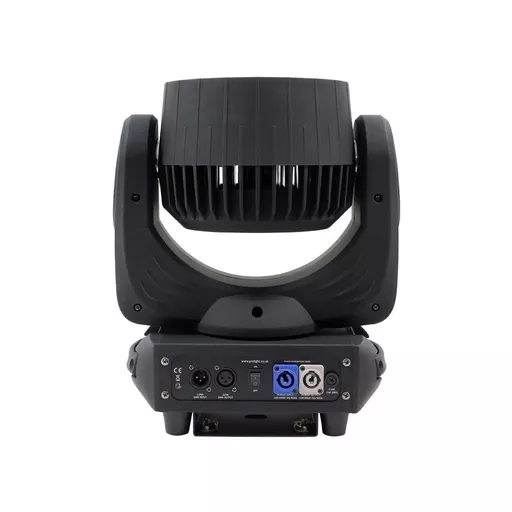

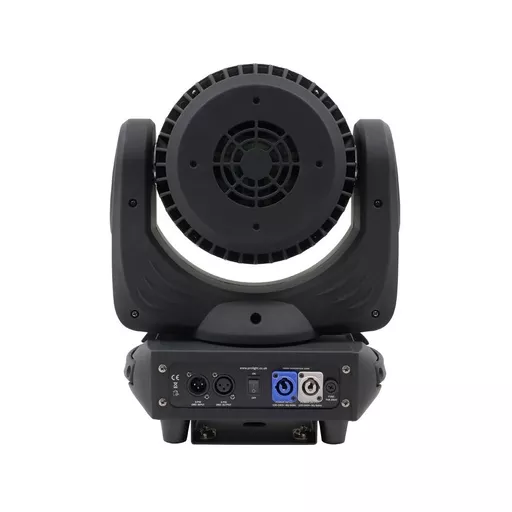

  • PowerTwist input/output
  • 3-Pin XLR input/output
  • Temperature controlled fans
  • Power consumption: 290W
  • Power supply: 100~240V, 50/60Hz
  • Dimensions (H x W x D): 414 x 324 x 221mm
  • Weight: 9.7kg
