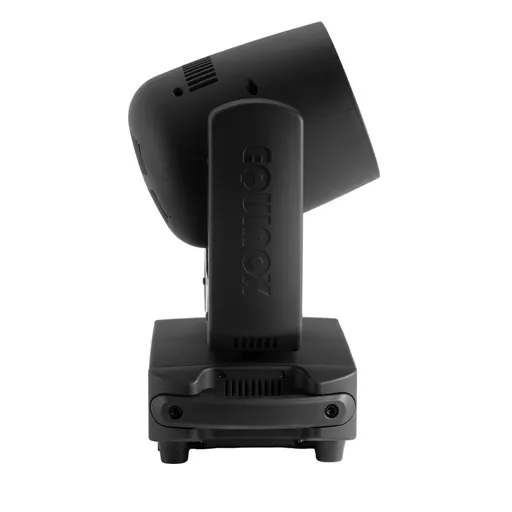

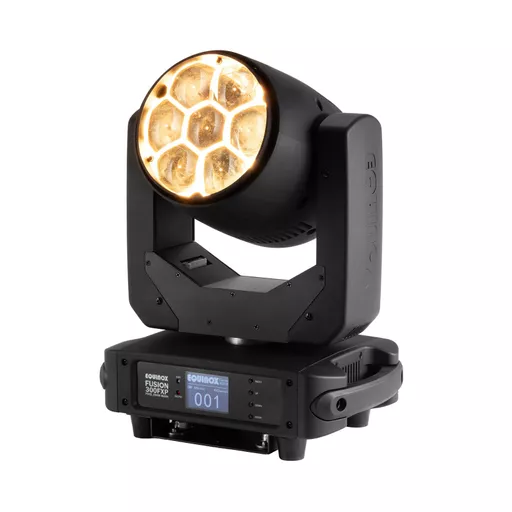

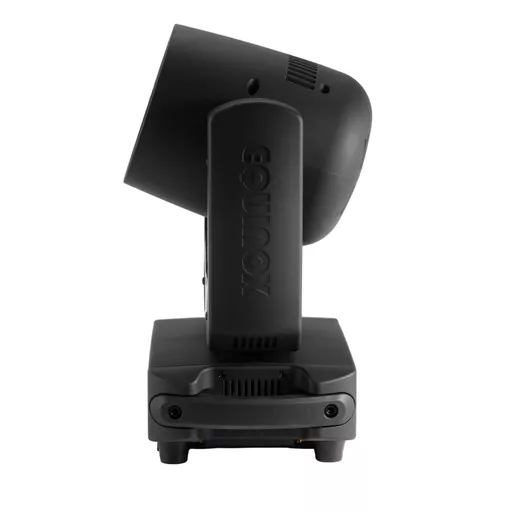

Equinox Fusion 300FXP Pixel Zoom Wash Moving Head

FUSION300FXP



Product Code: FUSION300FXP

Brand: Equinox



Equinox Fusion 300FXP Pixel Zoom Wash Moving Head

Brand: Equinox

Equinox Fusion 300FXP Pixel Zoom Wash Moving Head

Product Code: FUSION300FXP

£539.00

98 in stock

2 to 3 Working Days Delivery

Qty

PayPal Pay Later

Klarna

User Manual

Download now

Free Standard Delivery over £50

Spend another £50 to qualify

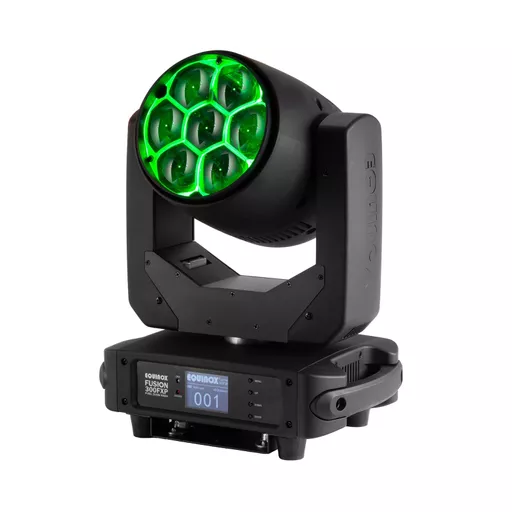

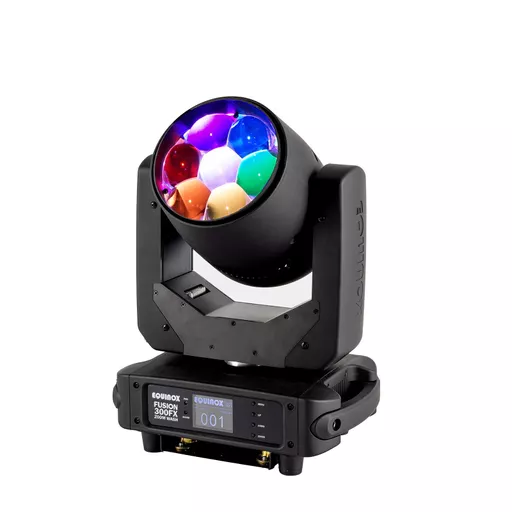

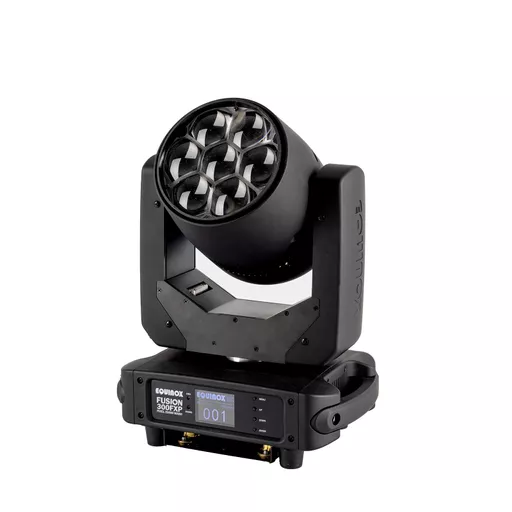

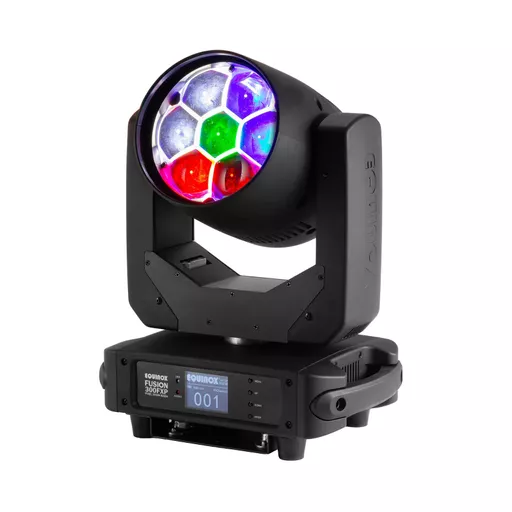

The Equinox Fusion 300FXP Zoom Wash is a compact RGBW moving head fixture featuring 7 x 40W quad-colour LEDs (RGBW), fully pixel mappable to create stunning eye candy effects. A motorised zoom function ranges from a narrow 5° beam angle to a wide 40°, and the front-lens rotation allows superb mid-air multibeam effects and wide washes of colour. This powerful stage lighting unit also includes colour temperature presets, DMX, auto, sound active, manual control, and primary/secondary modes – all accessible via the onboard 4-button menu.

  • 7 x 40W quad-colour LEDs (RGBW)
  • Adjustable beam angle: 5°–40°
  • 5° – 86,570 Lux @ 2m (full on), 40° – 6,156 Lux @ 2m (full on)
  • CRI: 70
  • Refresh rate: 3kHz
  • Motorised zoom
  • Full pixel mapping capabilities
  • Front lens rotation
  • DMX channels: 2/10/14/19/40/45 or 49 selectable
  • Auto, sound active, manual control and primary/secondary modes
  • Colour temperature presets
  • Forward facing show mode
  • Pan/tilt auto correction
  • 16-Bit pan/tilt positioning
  • Pan: 540°, Tilt: 270°
  • 0–100% dimming
  • Variable strobe
  • Quick release omega clamps included
  • Square hole spacing supports multiple clamp orientations
  • 4 button menu with 2.6” LCD display

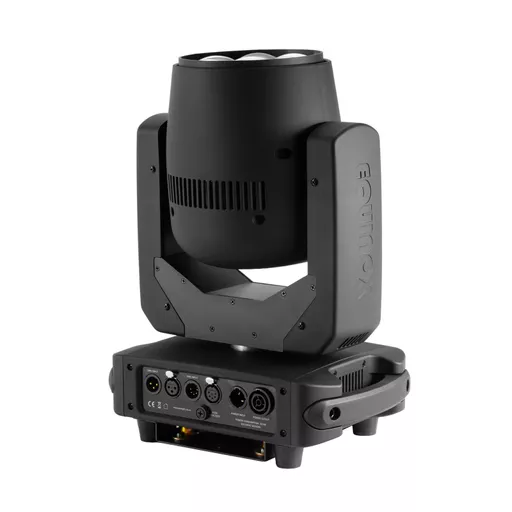

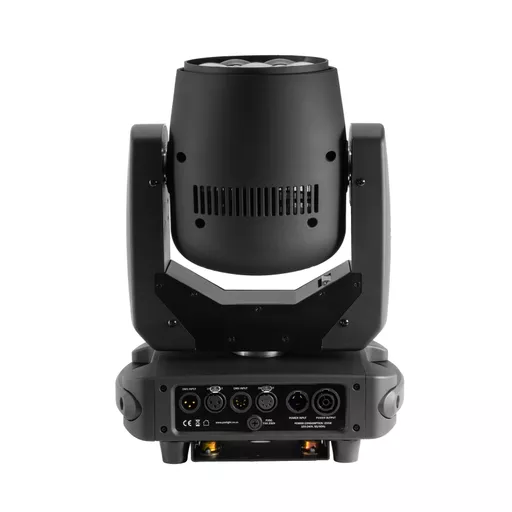

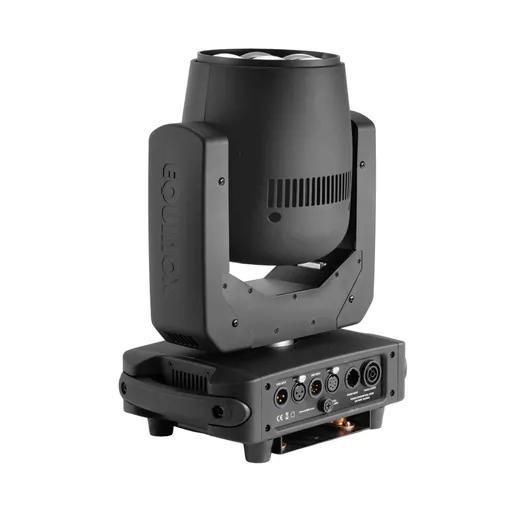

  • PowerTwist TR1 input/output
  • 5-Pin XLR input/output
  • 3-Pin XLR input/output
  • Fan cooled
  • Power consumption: 300W
  • Power supply: 100~240V, 50/60Hz
  • Dimensions (H x W x D): 385 x 310 x 190mm
  • Weight: 8.7kg
