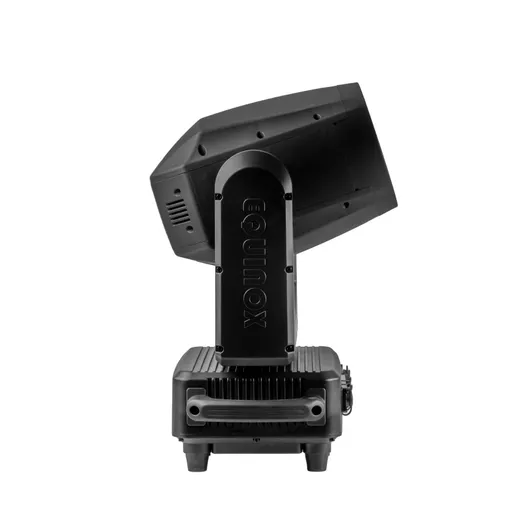

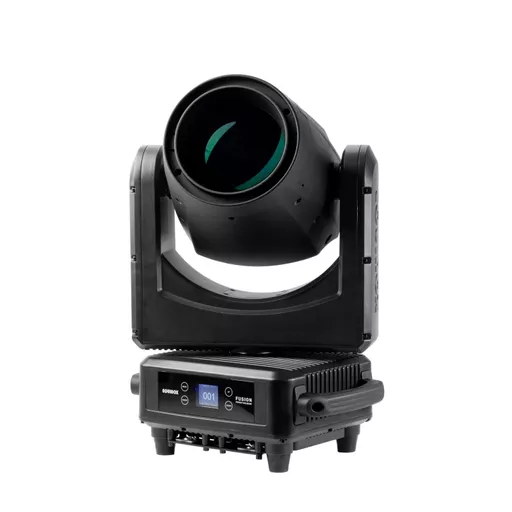

Equinox Fusion Patriot 500 Beam IP65 Rated Moving Head

FUSIONPATRIOT500



Product Code: FUSIONPATRIOT500

Brand: Equinox

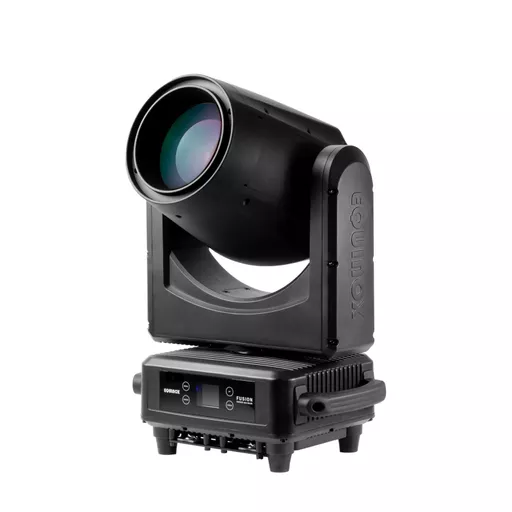

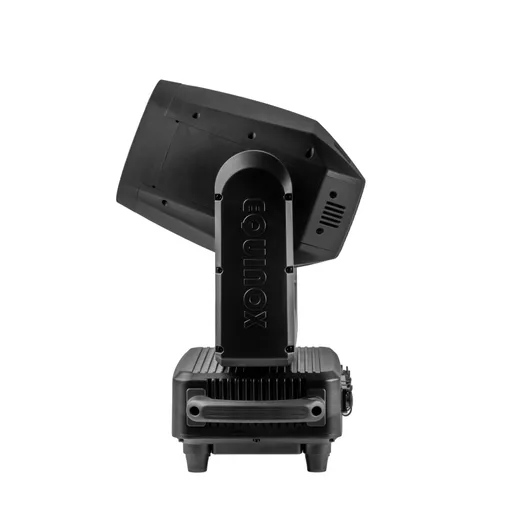

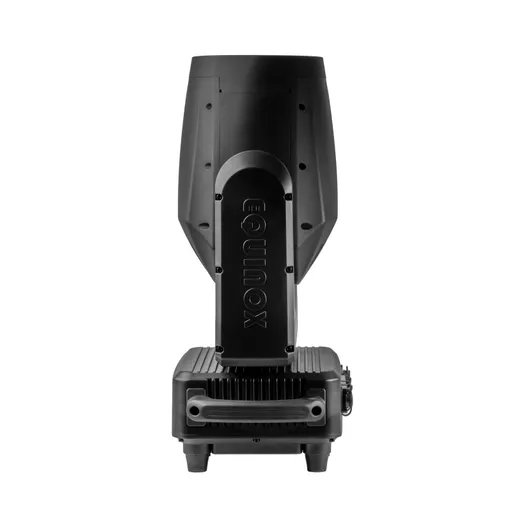

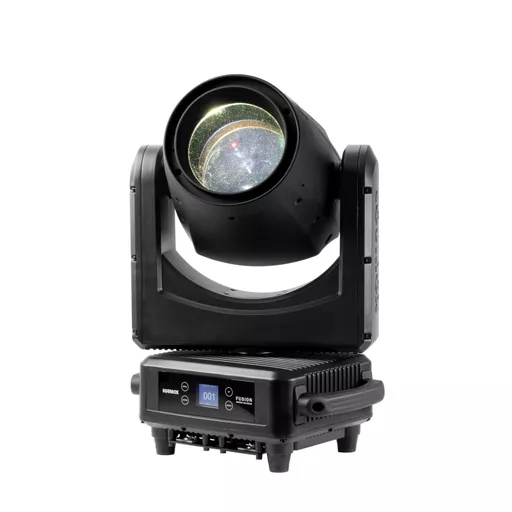

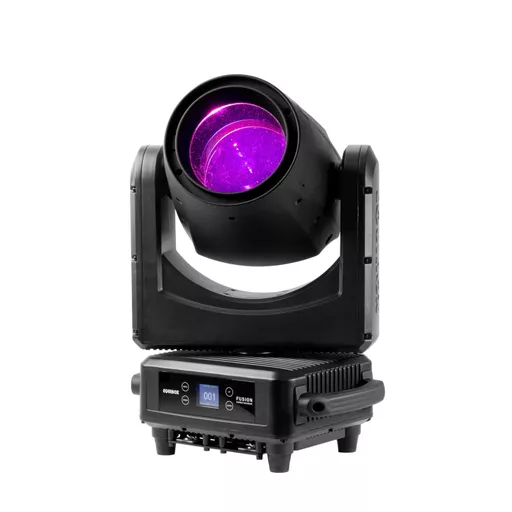

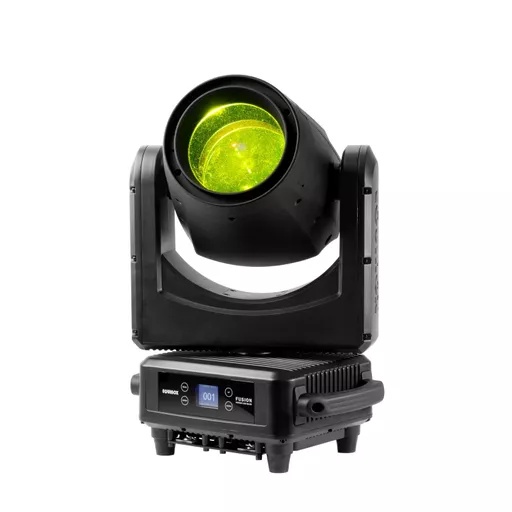

Equinox Fusion Patriot 500 Beam IP65 Rated Moving Head

Brand: Equinox

Equinox Fusion Patriot 500 Beam IP65 Rated Moving Head

Product Code: FUSIONPATRIOT500

£1299.00

143 in stock

Xmas Delivery Banner.png

2 to 3 Working Days Delivery

Qty

PayPal Pay Later

Klarna

User Manual

Download now

Technical Drawing

Download now

Free Standard Delivery over £50

Spend another £50 to qualify




The Equinox Fusion Patriot 500 Beam is a compact yet powerful IP65-rated moving head beam designed to thrive in the toughest environments. Powered by a 50W white laser source (7000K), it delivers an intense 105,000 Lux at 10 metres through a sharp 1° beam. Packed with creative tools including 19 static gobos, a 12-colour wheel plus a rainbow effect, and two rotating prism wheels for layered aerial visuals, this fixture is ideal for professional stage and event applications. Additional features include motorised focus, frost filter, 16-bit pan/tilt with autocorrection, and selectable 14 or 18-channel DMX control. With 3/5-pin DMX, PowerTwist TR1, and quick-release omega clamps, this versatile fixture integrates seamlessly into any rig.

  • 1 x 50W white laser source (7,000K)
  • Light source rated life: up to 12,000 hours
  • Beam angle: 1°
  • 105,000 Lux @ 10m
  • Refresh rate: 650Hz–25kHz (5 presets)
  • Motorised focus
  • 2 prism wheels with 4 rotating prisms
  • Wheel 1: 8 facet circular prism
  • Wheel 2: 8 facet circular, 18 facet circular, 5 facet linear
  • Frost filter
  • Gobo wheel: 19 static gobos + open
  • Colour wheel: 12 colours + open
  • 6 colour rainbow effect wheel
  • DMX channels: 14 or 18 selectable
  • Wireless control (W-DMX Sweden compatible transceiver)
  • Manual control & primary/secondary modes
  • Pan/tilt auto correction
  • 16-Bit pan/tilt positioning
  • Pan 540°, Tilt 220°
  • 0–100% dimming
  • Variable strobe

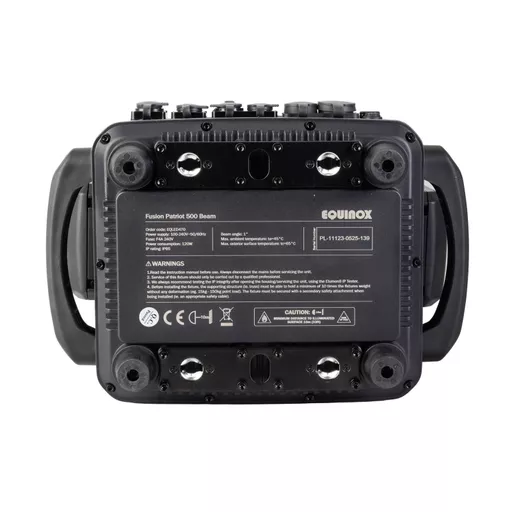

  • Quick release omega clamps included
  • 4-button menu with 1.7" LCD display

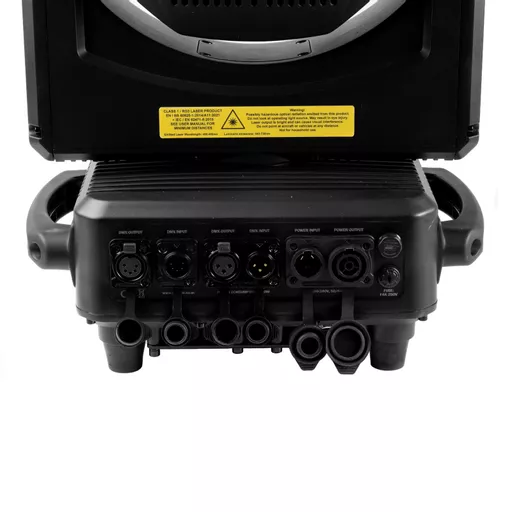

  • PowerTwist TR1 input/output
  • 3-Pin & 5-Pin XLR input/output
  • Fan cooled
  • Power consumption: 120W
  • Power supply: 100~240V, 50/60Hz
  • IP rating: IP65
  • Dimensions (H x W x D): 545 x 344 x 227mm
  • Weight: 11.5kg
