Adastra ML432 1U Mic / Line Rack Mixer

Brand: Adastra

Adastra ML432 1U Mic / Line Rack Mixer

Product Code: ML432

£159.00

64 in stock

2 to 3 Working Days Delivery

Qty

User Manual

Download now

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later

455 reviews on

Product Details

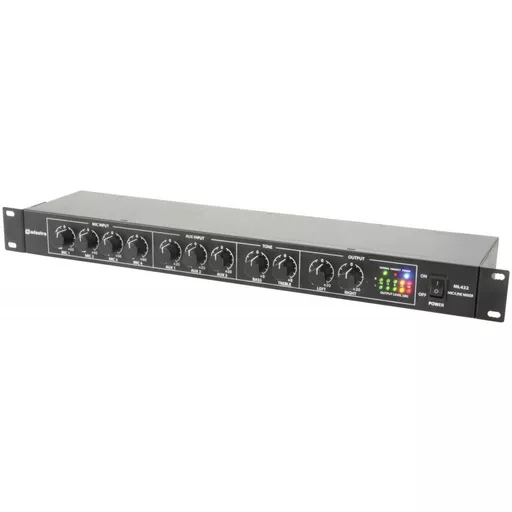

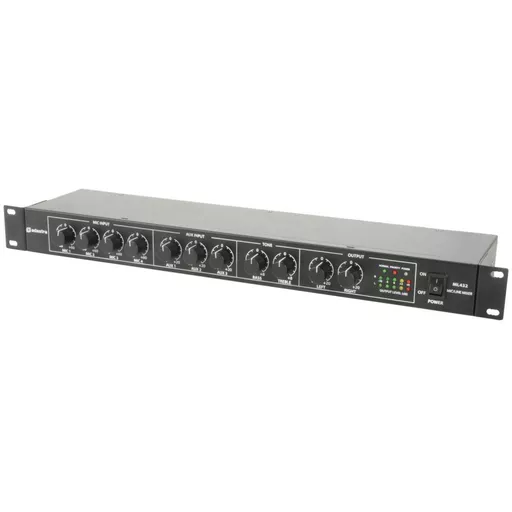

Rack-mountable 1U mixer with 4 mic inputs and 3 auxiliary inputs. Mic channel 1 has 20V phantom power and adjustable voice-over muting of auxiliary channels. An additional priority input can be connected to a line level input or an external 100V line PA system for emergency paging. Output connections are stereo jack with master bass and treble tone controls. Designed as a master or extension mixer for installed sound systems.

4 balanced microphone inputs
+20V phantom power on priority mic input
3 stereo aux line inputs
Can tap from an existing 100V PA system
24Vdc power option

Power supply 100-240Vac, 50/60Hz (IEC) or 24Vdc (terminals)
FuseT1AL 250V (mains) or F500mA (24Vdc)
Phantom power +20Vdc (mic1 XLR input only)

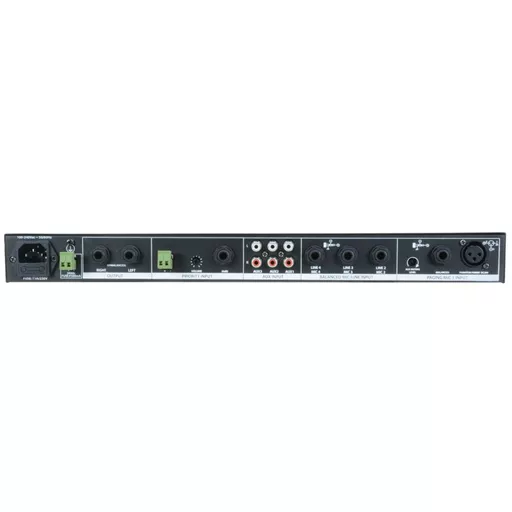

Inputs : mic4 x balanced 6.3mm jack (+XLR for mic1)
Inputs : aux3 x L+R RCA
Inputs : priorityLine level (6.3mm jack), 100V (terminals)
OutputsLeft + Right 6.3mm jack (unbalanced)

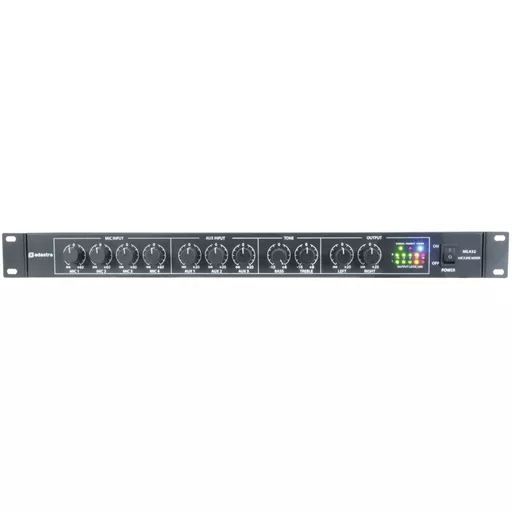

Controls 4 x Mic level, 3 x Aux level, Treble, Bass, L+R output
Rear panel controlsAux muting level, priority input level
Input impedance 2.2k Ohms (mic/line), 10k Ohms (aux)
Frequency response : mic130Hz - 21kHz
Frequency response : line120Hz - 26kHz
Frequency response : aux50Hz - 35kHz
Input sensitivity : mic-50dBV
Input sensitivity : line-19dBV
Input sensitivity : aux-12dBV
Signal to noise ratio : mic54dB
Signal to noise ratio : aux/line58dB
THD0.05%
Dimensions 482 x 130 x 44mm
Weight 1.43kg

Adastra ML432 1U Mic / Line Rack Mixer

Adastra ML432 1U Mic / Line Rack Mixer

£159.00
