Adastra ML622 1U Mic / Line Rack Mixer

Brand: Adastra

Adastra ML622 1U Mic / Line Rack Mixer

Product Code: ML622

£145.00

1 in stock

Next Working Day Delivery

Qty

User Manual

Download now

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later

455 reviews on

Product Details

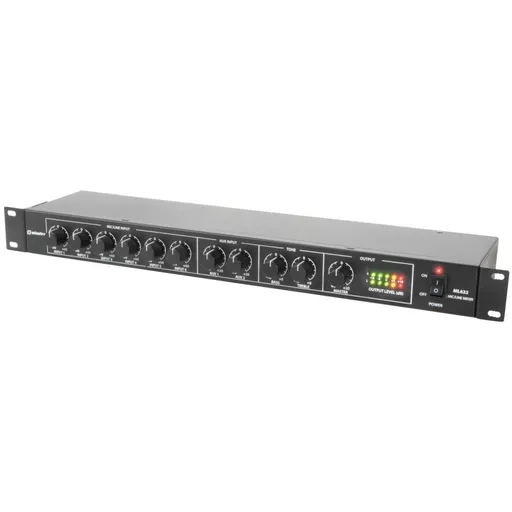

Rack-mountable 1U mixer with 6 mic/line inputs and 2 auxiliary inputs. Each mic/line channel has switchable phantom power and input level. Output connections are stereo XLR, mono jack or REC output on RCA with master bass and treble tone controls. Designed as a master or expansion mixer for installed sound systems and conferences.

6 switchable mic or line inputs
2 stereo aux inputs
Individually switchable phantom power
24Vdc power option

Power supply 100-240Vac, 50/60Hz (IEC) or 24Vdc (terminals)
Phantom power+20Vdc (switchable)
Inputs : mic/line6 x balanced XLR
Inputs : aux2 x L+R RCA

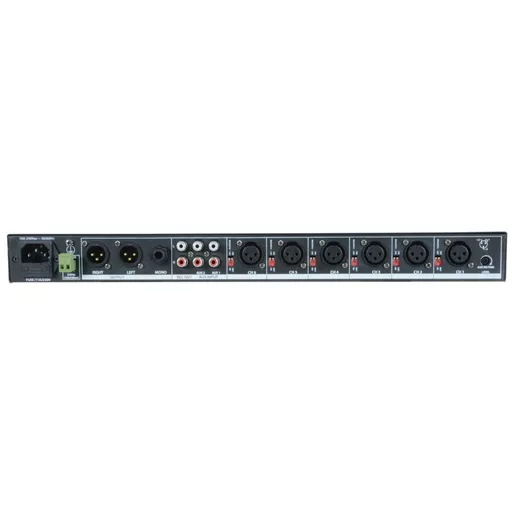

OutputsL+R XLR, mono 6.3mm jack, L+R RCA (REC)

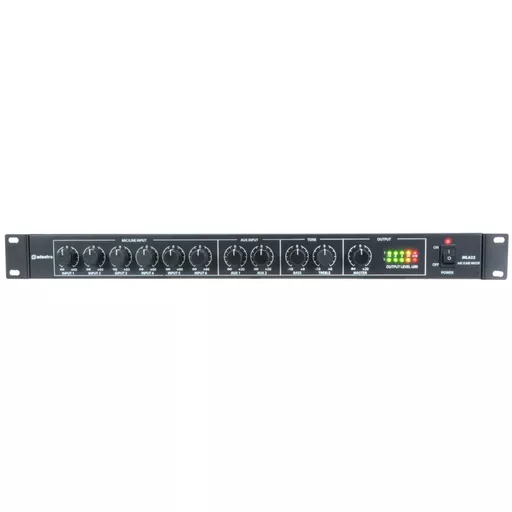

Controls6 x Mic/Line level, 2 x Aux level, Treble, Bass, Master
Input impedance3.3k Ohms (mic/line), 10k Ohms (aux)
Frequency response : mic20Hz - 18kHz
Frequency response : line14Hz - 20kHz
Frequency response : aux10Hz - 23kHz
Input sensitivity : mic-45dBV
Input sensitivity : aux/line-10dBV
Signal to noise ratio : mic55dB
Signal to noise ratio : aux/line60dB
THD0.05%
Dimensions 482 x 130 x 44mm
Weight 1.43kg
