Adastra MM321 Rack Mixer with Bluetooth / USB / FM Player

MM321



Product Code: MM321

Brand: Adastra



Adastra MM321 Rack Mixer with Bluetooth / USB / FM Player

Brand: Adastra

Adastra MM321 Rack Mixer with Bluetooth / USB / FM Player

Product Code: MM321

£180.99

85 in stock

2 to 3 Working Days Delivery

Qty

User Manual

Download now

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later

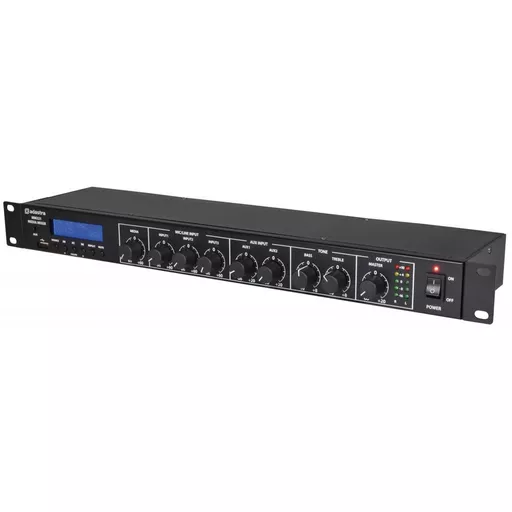

Rack-mountable 1U mixer with built-in media player and Bluetooth receiver. 3 mono inputs connect via XLR microphone or line input (switchable). Each of these inputs has switchable +20V phantom power for use with condenser microphones or D.I. boxes and channel 1 has a variable priority function. Two stereo auxiliary line inputs are provided on RCA connectors with a stereo record output. Media player operating modes include 3.5mm Aux input, USB audio player, FM radio tuner and Bluetooth receiver for playback from a smart phone or tablet. Main left and right outputs are fed to XLR with an additional mono summed output on 6.3 jack. Versatile yet easy to use as a main mixer for background music, public address and house PA systems.

  • Bluetooth with programmable ID
  • Media player with USB playback and FM tuner
  • Switchable +20V phantom power
  • Variable priority muting for channel 1
  • 24V emergency mute contacts

  • Power supply 100-240Vac, 50/60Hz (IEC)
  • Inputs : mic/line3 x XLR (bal/unbal)
  • Inputs : aux2 x L+R RCA
  • Input : line3.5mm jack to media player
  • Audio sourceInternal Bluetooth, USB & FM player

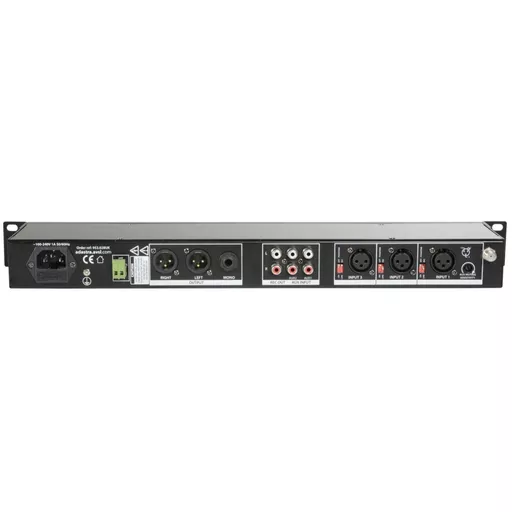

  • OutputsL+R XLR, Mono 6.3mm jack, Record out (RCA)
  • Emergency control24V contacts mute all except channel 1
  • Phantom power+20V (switchable channels 1-3)

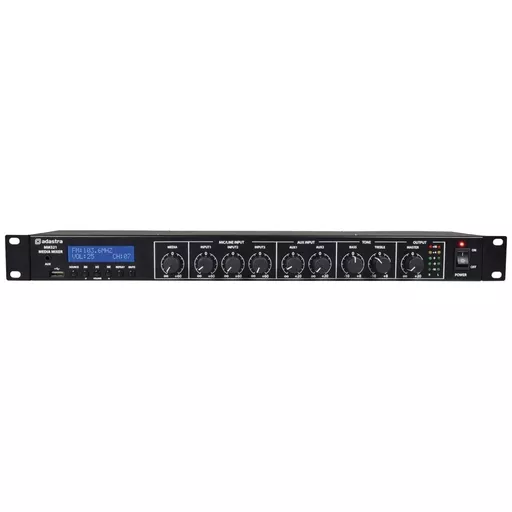

  • Controls Media, 3 x Mic/Line, 2 x Aux, Treble, Bass, Master level
  • Rear panel controlsPriority muting level, mic/line and phantom DIP switches
  • Input impedance2.2k Ohms (mic/line), 10k Ohms (aux)
  • Frequency response : mic20Hz - 18kHz
  • Frequency response : line14Hz - 20kHz
  • Frequency response : aux10Hz - 23kHz
  • Input sensitivity : mic/line-45dBV
  • Input sensitivity : aux/line-10dBV
  • Signal to noise ratio : mic55dB
  • Signal to noise ratio : aux/line60dB
  • THD 0.05%
  • Dimensions 482 x 130 x 44mm
  • Weight 1.43kg
