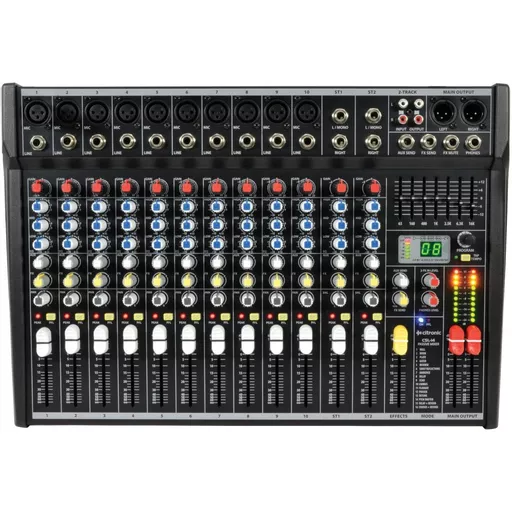

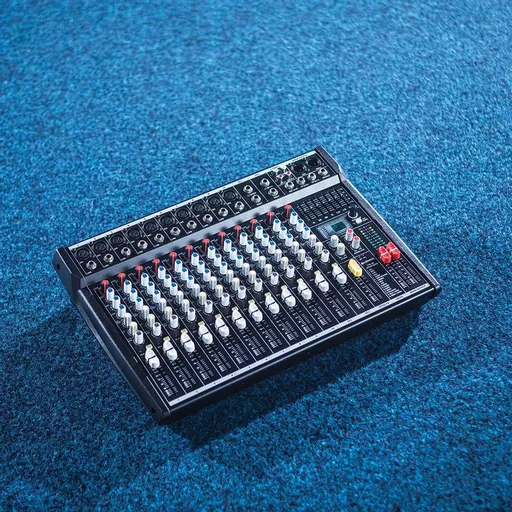

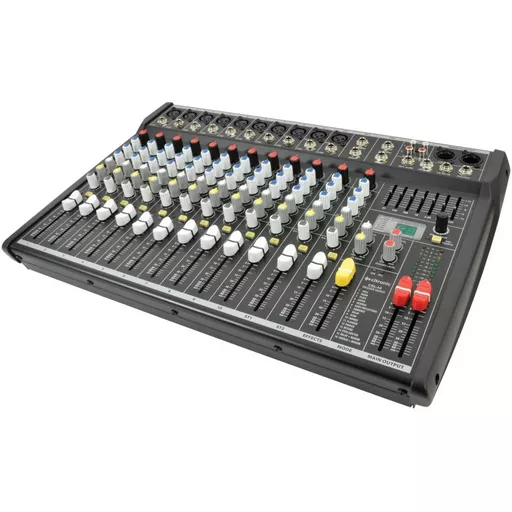

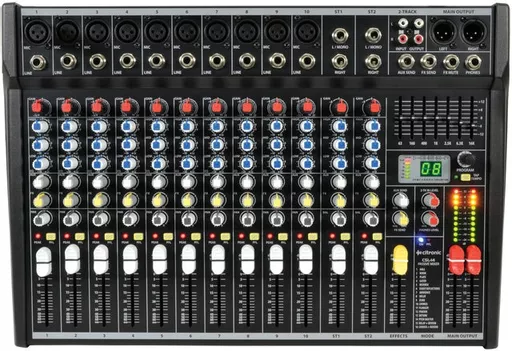

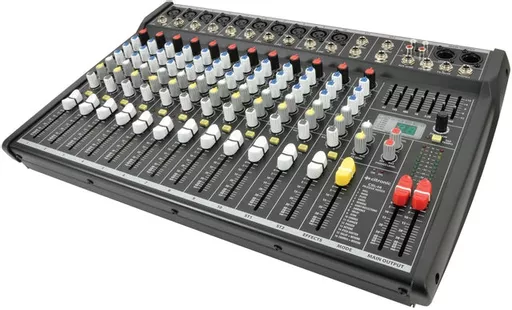

Citronic CSL-14 14 Input Mixing Console

CSL-14



Product Code: CSL-14

Brand: Citronic



Citronic CSL-14 14 Input Mixing Console

Brand: Citronic

Citronic CSL-14 14 Input Mixing Console

Product Code: CSL-14

£199.00

28 in stock

2 to 3 Working Days Delivery

Qty

User Manual

Download now

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later




Compact mixing consoles with balanced mic/line inputs and 2 stereo inputs, each with 3-band EQ and aux send. A 16 program DSP section with tap tempo can provide vocal effects and a 7-band graphic EQ facilitates global tone control. Designed primarily for venues and stage applications, these models offer a compact and comprehensive solution for mobile PA, bars and special events.

  • 24-bit 16 program DSP effects
  • 48V phantom power for XLR inputs
  • 3-band EQ per channel
  • 7-band global graphic EQ
  • IEC mains powered
  • Balanced main outputs

  • Power supply 230Vac, 50Hz (IEC)
  • Output connections Main L+R balanced XLR
  • Effects 16 program DSP (24-bit sigma-delta, 40kHz)
  • Phantom power +48V (XLR inputs)
  • Frequency response20Hz-30kHz (0.5dB)
  • Power consumption 25W
  • Input level+24dBu
  • Output level : line+26dBu
  • CMRR>74dB (mic 1kHz)
  • THD +N<0.01% (channel to main out)
  • Crosstalk>85dB (fader mute), >82dB (channel)
  • Noise rms : 22Hz-22kHz-122dBu (EIN), -82dBu (mix)
  • EQ: high12kHz ±15dB shelving
  • EQ: mid2.5kHz ±15dB band pass
  • EQ: low80Hz ±15dB shelving
  • Input impedance : mic (balanced)2k Ohms
  • Input impedance : line (balanced)10k Ohms
  • Sensitivity : mic-60 to +14dBu
  • Sensitivity : line-40 to +14dBu
  • 2-track2 x RCA in & out (-2dBu)
  • Output impedance
  • Headphone output 6.3mm jack, 30-600 Ohms
  • Inputs : mic/line 10 x balanced XLRF/TRS jack
  • Dimensions 475 x 320 x 107mm
  • Weight 4.5kg
