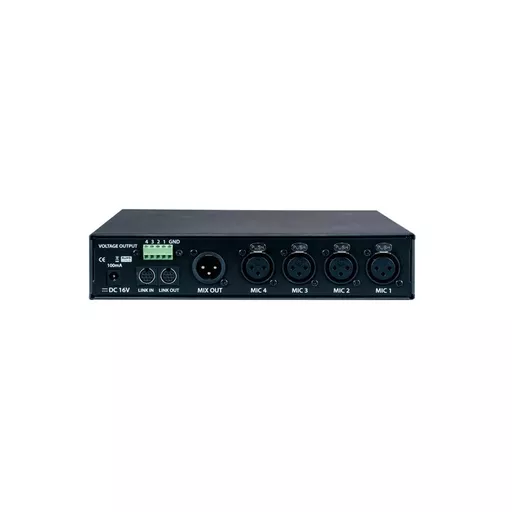

JTS CS-4 4 Channel Automatic Microphone Mixer

JTS-CS4



Product Code: JTS-CS4

Brand: JTS



JTS CS-4 4 Channel Automatic Microphone Mixer

Brand: JTS

JTS CS-4 4 Channel Automatic Microphone Mixer

Product Code: JTS-CS4

£249.00

11 in stock

2 to 3 Working Days Delivery

Qty

User Manual

Download now

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later




The CS-4 is an 4 Channel automatic microphone mixer. Full feature design includes : Daisy-chain with unlimited numbers of the mixer. Three operation modes: one-channel-at-a time, all active or override. Switchable inputs accept microphones or line level devices .Switchable output levels between mic. and line level. Individual gain control and phantom power for each channel. Last In stays on for continuous ambience sound. Control voltage provided to trigger external device such as speaker switching and camera switching

The CS series microphone automatic mixers provide great convenience to sound reinforcement installation with any size and any combination.

The outstanding performance enables effective managing of multi-microphone installations including corporate boardrooms, conference rooms, government builds, houses of worship, classrooms

  • Frequency response: 35~20,000Hz ±2dB
  • Net Dimension (WxHxD): 212 x 44 x 212mm
  • Net Weight: 1.41kg
  • Power Consumption: 4.6W
  • S/N Ratio: >70dBm
  • Power Supply: 16VDC, 100mA (The attached adapter, 12V, 600mA, isnít full-loaded, so it can provide enough voltage +16VDC to the Automatic mixer.)
  • Input Type: XLR
  • Mic Input: 4.7KΩ
  • Line Input: 20kΩ
  • Output Type: XLR
  • Mic Output: 300Ω
  • Line Output: 200Ω
  • Maximum Output Level: >+19 dB
  • Maximum Gain: ≥70dBm
  • Mic/Line Attenuation: -50dB
  • Phantom Power: +12V
  • Pad: -10dB
  • Mic Attenuation: -10dB, -15dB, -20dB
  • Output Attenuation: -50dB
  • Voltage Output: +4VDC±0.3V
