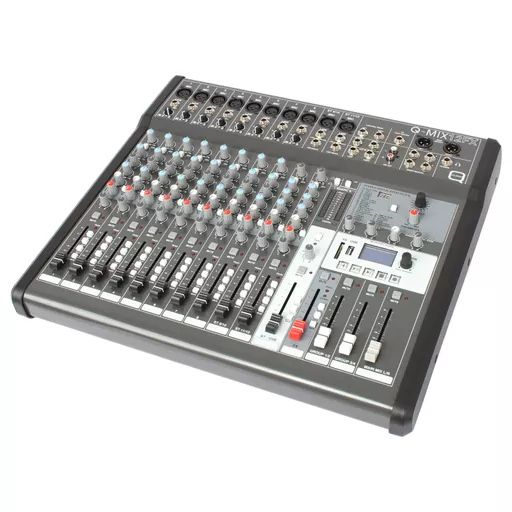

The Q-Audio Q-Mix 12FX is a 12-channel analogue mixer designed for live performance, streaming, recording, rehearsal rooms, venues, schools, houses of worship, bands and compact PA systems. As the largest model in the Q-Mix range, it gives users a generous input count, practical routing, built-in playback, direct recording and digital effects in one flexible mixing console.

With 10 microphone inputs using XLR connectors, 8 line inputs with 1/4 inch jack connections and 2 stereo channels, the Q-Mix 12FX is well suited to larger small-band setups, multi-mic events, presentations, live sound, worship teams, venue systems and content creators who need more connection options than a smaller mixer can provide. The layout makes it easy to connect vocals, instruments, keyboards, media players, playback devices and other audio sources.

Each channel includes independent 3-band EQ for tone shaping, while the microphone channels include independent high-pass filters to help reduce low frequency rumble, handling noise and unwanted stage noise. This gives users useful control over vocals, speech and instruments, helping create a cleaner and more balanced mix in live and recording situations.

The built-in 24 digital effects processor uses a 32-bit high-precision audio processor and offers adjustable time and depth controls. This makes it easy to add suitable effects to vocals and instruments, including live performance effects for singers, presenters and musicians. A footswitch connection is also provided for hands-free effect mute or bypass during a performance.

For playback, the Q-Mix 12FX includes a built-in MP3 player with USB and SD card support, plus a Bluetooth receiver for wireless audio streaming from compatible devices. This is useful for backing tracks, interval music, event playlists, presentation audio and general PA playback without needing extra external equipment.

The mixer can also record directly to a USB drive or SD card in MP3 or WAV format, making it useful for rehearsals, services, podcasts, live sessions, meetings and event capture. The integrated 2-in/2-out USB audio interface connects directly to a computer for streaming or recording, giving the Q-Mix 12FX extra flexibility for modern live and digital audio setups.

Routing and monitoring options include pre-fader AUX send, post-fader FX send, PFL monitoring on all inputs, monitor output, headphone output, Tape IN/Rec OUT connections and a high-precision 12-bar LED meter for clear level checking. Illuminated channel mute buttons give quick visual control, helping operators manage live mixes more confidently.

A 19 inch rack mount kit is included, making the Q-Mix 12FX suitable for portable rack cases, fixed venue racks, school AV systems, church installations and mobile PA setups where a tidy mounted mixer solution is preferred.

Best for bands, performers, live engineers, venues, schools, churches, houses of worship, rehearsal rooms, podcasting, streaming, presentations, event sound and compact PA systems needing a 12-channel mixer with Bluetooth, USB recording, DSP effects and USB audio interface connectivity.

• 12-channel analogue mixer
• 10 mic inputs with XLR connectors
• 8 line inputs with 1/4 inch jack connections
• 2 stereo channels for keyboards, backing tracks or playback devices
• Wide gain range for flexible source matching
• Independent 3-band EQ on all channels
• Independent high-pass filter on each mic channel
• 24 built-in digital effects
• 32-bit high-precision effects processor
• Adjustable effect time and depth controls
• Pre-fader AUX send for monitor mixes
• Post-fader FX send for effects routing
• PFL monitoring on all inputs for accurate signal checking
• Illuminated channel mute buttons for clear live control
• Built-in MP3 player for USB or SD card playback
• Bluetooth receiver for wireless audio streaming
• Built-in MP3 and WAV recording to USB drive or SD card
• Integrated 2-in/2-out USB audio interface
• Direct computer connection for streaming and recording
• Monitor output and headphone output sections
• Tape IN and Rec OUT section
• Footswitch control for hands-free effect mute or bypass
• High-precision 12-bar LED meter for level monitoring
• Suitable for live sound, recording, streaming and performance
• 19 inch rack mount kit included

MINI FAQ
Q: What is the Q-Audio Q-Mix 12FX best used for
A: The Q-Mix 12FX is ideal for bands, live sound, schools, churches, venues, rehearsal rooms, podcasting, streaming, presentations and compact PA systems.

Q: How many microphone inputs does the Q-Mix 12FX have
A: It has 10 microphone inputs with XLR connectors, making it suitable for larger live setups, multi-mic events and small band applications.

Q: Does the Q-Mix 12FX have Bluetooth
A: Yes, the mixer includes a built-in Bluetooth receiver for wireless audio streaming from compatible devices.

Q: Can the Q-Mix 12FX record audio
A: Yes, it can record directly to a USB drive or SD card in MP3 or WAV format. It also includes a 2-in/2-out USB audio interface for computer recording and streaming.

Q: Does it include built-in effects
A: Yes, the mixer includes 24 built-in digital effects with time and depth adjustment, plus a footswitch input for hands-free effect mute or bypass.

Q: Can the Q-Mix 12FX be rack mounted
A: Yes, a 19 inch rack mount kit is included, making it suitable for portable rack cases, fixed venue racks and installation systems.
