Q-Audio Venue Sound QMEDIAMIX52 Media Installation Mixer

QMEDIAMIX52



Product Code: QMEDIAMIX52

Brand: Q-Audio



Q-Audio Venue Sound QMEDIAMIX52 Media Installation Mixer

Brand: Q-Audio

Q-Audio Venue Sound QMEDIAMIX52 Media Installation Mixer

Product Code: QMEDIAMIX52

£179.00

96 in stock

2 to 3 Working Days Delivery

Qty

PayPal Pay Later

Klarna

User Manual

Download now

Free Standard Delivery over £50

Spend another £50 to qualify

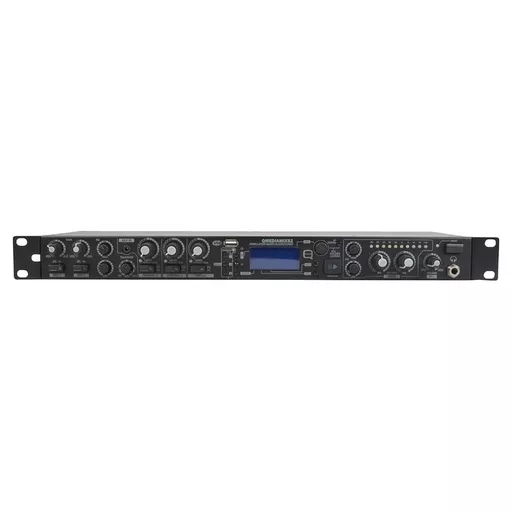

The Q-Audio QMEDIAMIX52 is a versatile five-channel media installation mixer designed for bars, restaurants, schools, gyms and entertainment venues. It combines three stereo inputs, two microphone inputs and an integrated media player in a durable 1U rack-mountable unit.

Bluetooth connectivity, USB MP3 playback and an FM radio provide flexible options for background music, while the built-in jingle player makes it easy to add announcements and promotional messages.

Microphone Inputs with Automatic Talkover

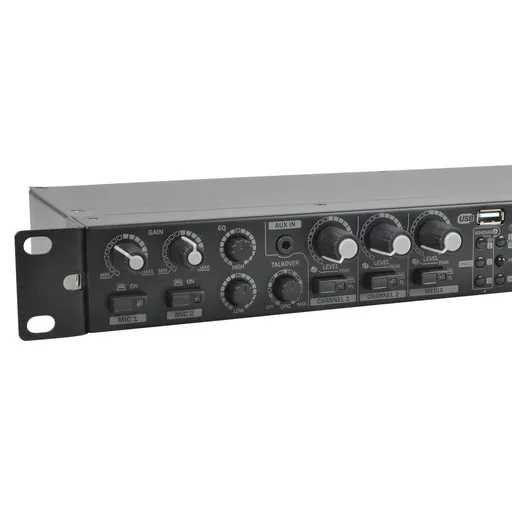

Two microphone inputs are provided with individual on-air switches and voice-focused two-band EQ. The adjustable automatic talkover function reduces the music level when a microphone is used, helping announcements remain clear without requiring manual volume adjustments.

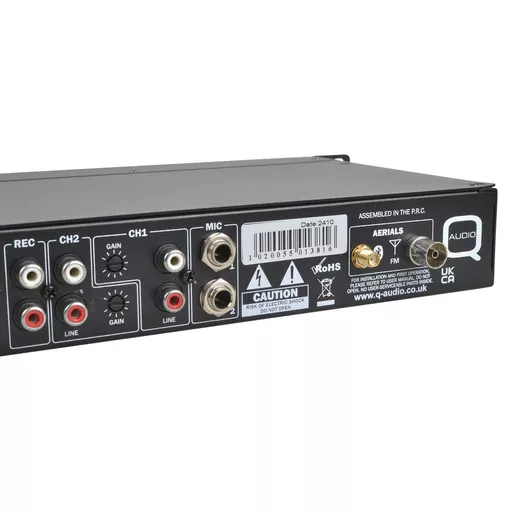

Two stereo inputs feature signal indicators, rear gain controls and front-panel level adjustment. A convenient 3.5mm stereo input also allows phones, tablets and other compatible audio devices to be connected quickly.

Integrated Media and Jingle Player

The built-in media player supports USB storage devices up to 16GB, with capacity for approximately 2,000 MP3 tracks. Its large LCD screen displays track information, while regular and random playback modes provide flexibility for background music systems.

The FM tuner includes RDS station information, and the integrated jingle player can store up to three announcements or promotional messages. These can be activated manually or scheduled for automatic playback.

Independent Stereo Outputs

Two stereo main outputs have independent level controls, making the mixer suitable for systems that require separate output-volume adjustment.

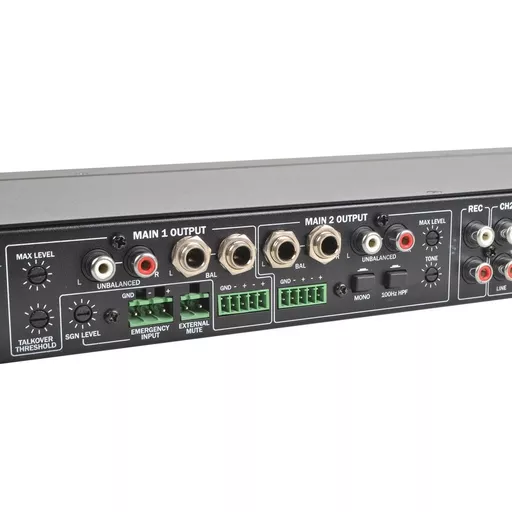

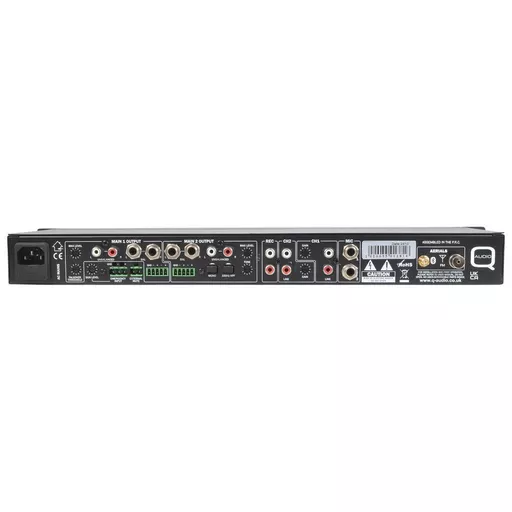

Main output one features front-panel two-band EQ and a ten-segment LED level meter. Main output two provides rear-mounted tone adjustment, a mono switch and a 100Hz high-pass filter. Balanced jack, Phoenix and unbalanced RCA connections provide flexible integration with professional sound equipment.

An emergency input can override the main output to play an emergency signal, while an external mute contact provides additional system-control options.

Key Features

  • Five-channel media installation mixer
  • Three stereo inputs
  • Two microphone inputs with 6.3mm jack connections
  • Voice-focused two-band microphone EQ
  • Individual microphone on-air switches
  • Adjustable automatic microphone talkover
  • Front-panel 3.5mm stereo input
  • Bluetooth wireless audio playback
  • USB MP3 media player
  • Supports USB storage devices up to 16GB
  • FM tuner with RDS station information
  • Built-in jingle and announcement player
  • Manual or scheduled playback of up to three jingles
  • Two stereo main outputs with independent level controls
  • Two-band EQ and LED meter for main output one
  • Tone control, mono switch and 100Hz filter for main output two
  • Balanced jack, Phoenix and unbalanced RCA outputs
  • Dedicated RCA recording output
  • Emergency audio input
  • External output-mute connection
  • Headphone output with independent volume control
  • 1U 19-inch metal housing with detachable rack ears

Frequently Asked Questions

Q: Can the QMEDIAMIX52 play music using Bluetooth?

A: Yes. It has a built-in Bluetooth receiver for wireless audio playback from compatible phones, tablets and other devices.

Q: Does the mixer reduce the music during announcements?

A: Yes. Its adjustable automatic talkover function lowers the music level when a connected microphone is used.

Q: Can recorded announcements or advertising messages be played?

A: Yes. The built-in jingle player can store up to three announcements or promotional messages, which can be played manually or scheduled automatically.

Q: Does it have two independently controlled outputs?

A: Yes. The QMEDIAMIX52 has two stereo main outputs with separate level controls and different tone-adjustment options.

Q: Can the QMEDIAMIX52 be installed in a standard equipment rack?

A: Yes. It is housed in a 1U 19-inch metal case and is supplied with detachable rack ears.
