dB Technologies Opera 12 & SUB 615 PA System & Mixer Bundle

3157



Product Code: 3157



dB Technologies Opera 12 & SUB 615 PA System & Mixer Bundle

dB Technologies Opera 12 & SUB 615 PA System & Mixer Bundle

Product Code: 3157

£1859.00

1 in stock

Next Working Day Delivery

Qty

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later




This bundle provides power, performance and versatility with some brilliant dB Technologies active speakers and a Studiomaster Club XS8+ Mixer for full control of the system. In addition, we have also provided all of the components needed for installation giving you a system that's maxed out in terms of convenience and value for money.

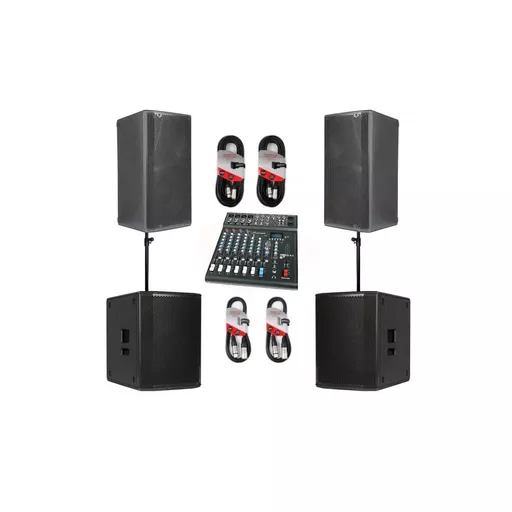

Bundle Contents ...

  • 2x dB Technologies Opera 12 Active Speaker (Each)
  • 2x dB Technologies SUB 615 Subwoofer
  • 2x CORE350LU2BK : XLR-M to XLR-F Microphone Cable 2m Black

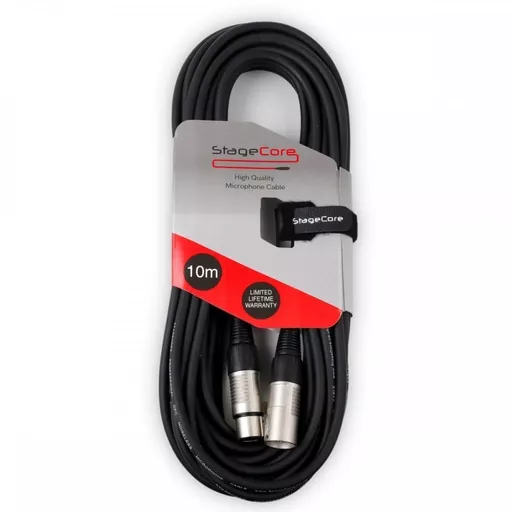

  • 2x CORE350LU10BK : XLR-M to XLR-F Microphone Cable 10m Black
  • 1x Studiomaster Club XS 8+ 6 Channel Mixer
  • 2x M20 Pole

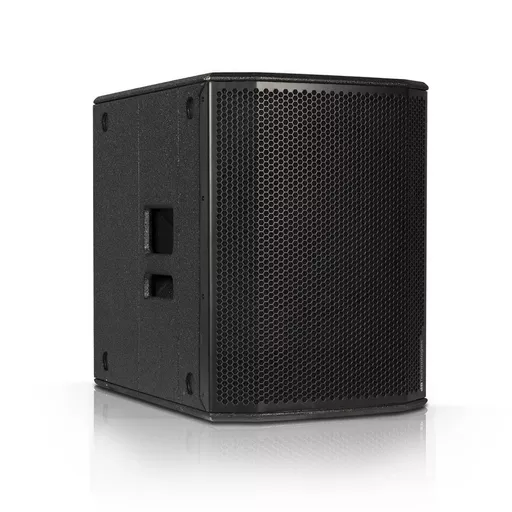

SUB 615 Spec

  • Frequency Response : [-10dB]42 - 124 Hz
  • Max SPL : (1 m)131 dB
  • LF : 15"
  • LF Voice Coil : 2.5"
  • Amp Class : Class D
  • RMS Power : 600 W
  • Peak Power : 1200 W
  • Controller : 28/56 bit DSP
  • Signal Input : 2x XLR (balanced)
  • Signal Output : 2x XLR (balanced)
  • Pole Mount : M20
  • Dimensions : 430mm x 580mm x 600mm
  • Weight : 25kg

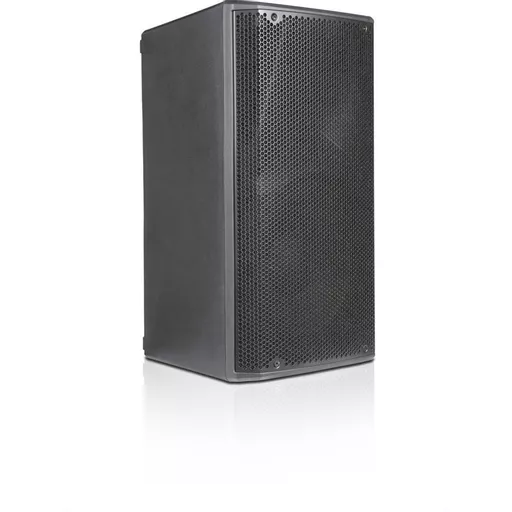

Opera 12 Spec



  • 2-Way Active Speaker
  • Frequency Response [-10dB]52 - 20.000 Hz
  • Frequency Response [- 3dB]67 - 19.600 Hz
  • Max SPL129 dB
  • Horizontal Directivity100° (85° up/120° down)
  • Vertical Directivity85° (+ 25°/-60°)
  • Class D Amplifier
  • Controller DSP 56 bit
  • AD/DA Converter24 bit/48 KHz
  • System PresetsRotary Encoder (8 Presets)
  • CrossOver Frequency2000 Hz
  • LimiterPeak, RMS, Thermal
  • Advanced DSP FunctionsLinear Phase FIR Filters
  • Signal Input 1 x Combo (XLR/Jack 6.3 mm) MIC/Line, 1 x Combo (XLR/Jack 6.3 mm) MIC/Inst
  • Signal Output 1x XLR Male (CH1 Link/Mix OUT)
  • Full grille
  • Handles : 1 on left Side, 1 on Top
  • Rigging Points 2XM10 on Top + 1x M10 on Back
  • Pole Mount D36 mm
  • Angles up Monitor use 45°
  • Width 350 mm x Height 642 mm x Depth 349 mm
  • Weight 14.3 kg

Club XS 8 Spec

  • 8 inputs : 4 mic channels and 2 stereo channels
  • 16 DSP effects
  • Bluetooth and USB/SD media player
  • Footswitch socket
  • Mic Gain Range: 6dB to 50dB
  • Line Gain Range: 10dB to 34dB
  • Frequency Responce: 10Hz – 20kHz (+1/-3dB)
  • Signal to Noise Ratio: 80dB
  • Output Levels: Max +26dB (Bal), +20dB (unBal)
  • EQ: Hi 12kHz, Mid 2.5kHz, Lo 45Hz, Lo cut 80Hz
  • Record: To USB drive or SD card (128kbps mono)
  • Dimension W*H*D: 305 x 80 x 365 (mm)
  • Weight: 4.5kg
