This Bundle Includes:

2 x FBT X-LITE 110A Active 10" Speakers
2 x FBT X-SUB 112SA Active 12" Subwoofers
2 x M20 Speaker Poles
2 x 2m XLR to XLR Cables for linking from SUB to 110A speakers

This complete FBT active PA system combines two X-LITE 110A full-range speakers with two X-SUB 112SA active subwoofers and the M20 speaker poles required to assemble two matching speaker stacks. It provides a powerful stereo system for mobile DJs, live bands, entertainment venues, corporate events and other professional sound applications.

Each side of the system places an X-LITE 110A above an X-SUB 112SA. The full-range speakers reproduce vocals, instruments and high-frequency detail, while the dedicated 12-inch subwoofers reinforce the low end with greater depth and impact.

Clear Full-Range Sound with Dedicated Bass

Each X-LITE 110A uses a custom 10-inch woofer and a one-inch compression driver with 90° horizontal by 60° vertical dispersion. Its bi-amplified design provides separate 1200W LF and 300W HF peak amplifiers, producing up to 127dB peak SPL with a 58Hz–20kHz frequency response.

The two X-SUB 112SA subwoofers each combine a high-excursion 12-inch woofer with a 2.5-inch voice coil and integrated 1200W Class D amplification. A 48Hz–120Hz frequency response and maximum peak SPL of 133dB provide controlled, musical bass reinforcement without requiring larger 15-inch or 18-inch subwoofers.

Integrated Mixing, Bluetooth and DSP

Each X-LITE 110A has an integrated three-channel mixer with mic/line inputs, a stereo input and Bluetooth 5.0 connectivity. Four DSP presets allow the speaker response to be adapted for different applications, while the asymmetrical cabinet can also be used independently as a 30° or 45° powered stage monitor.

The X-SUB 112SA subwoofers also feature four DSP presets, combining Original and Punch response options with two different cut-off frequencies. Stereo inputs, link outputs, high-pass-filtered outputs, level adjustment and 0°/180° phase control provide flexible system configuration.

Complete Two-Stack PA Configuration

The supplied M20 speaker poles screw securely into the threaded sockets on top of the subwoofers and support the X-LITE 110A speakers using their standard 35mm pole sockets.

Lightweight moulded polypropylene top cabinets help simplify transport, while the subwoofers use sturdy 15mm birch plywood enclosures with scratch-resistant finishes and aluminium carrying handles.

Key Features

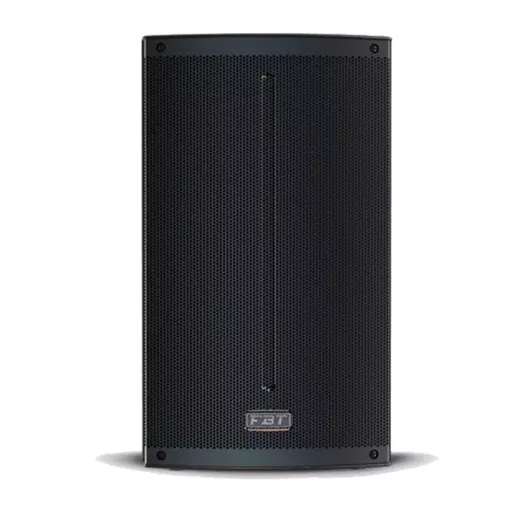

FBT X-LITE 110A Active Speakers

• Two X-LITE 110A two-way active speakers
• Custom 10-inch low-frequency woofer
• 2.5-inch woofer voice coil
• One-inch throat high-frequency compression driver
• 1.4-inch HF driver voice coil
• Bi-amplified bass-reflex design
• 1200W LF and 300W HF peak amplification per speaker
• Frequency response: 58Hz–20kHz
• Maximum SPL: 123dB continuous and 127dB peak
• 90° horizontal by 60° vertical dispersion
• Integrated three-channel mixer
• Two mic/line inputs and stereo input
• Bluetooth 5.0 connectivity
• Four DSP presets
• XLR output with Channel 1 or Mix link selection
• Selectable high-pass filter
• 30° and 45° floor-monitor angles
• Standard 35mm pole socket
• Four M10 rigging points
• Universal 100–240V switch-mode power supply
• Rugged moulded polypropylene enclosures
• Individual X-LITE 110A dimensions (W × H × D): 300 × 536 × 301.5mm
• Individual X-LITE 110A weight: approximately 13kg

FBT X-SUB 112SA Active Subwoofers

• Two processed active bass-reflex subwoofers
• High-excursion 12-inch woofer in each subwoofer
• 2.5-inch woofer voice coil
• Integrated 1200W Class D amplifier per subwoofer
• Frequency response: 48Hz–120Hz at -6dB
• Maximum SPL: 129dB continuous and 133dB peak, measured in half-space
• Omnidirectional low-frequency dispersion
• Four onboard DSP presets
• Original general-purpose and Punch response options
• Two selectable cut-off frequencies
• Stereo inputs with loop/link outputs
• High-pass-filtered outputs
• Adjustable level and 0°/180° phase control
• Protection and limiter status indicator
• 15mm birch plywood construction
• Scratch-resistant black painted finish
• Two aluminium carrying handles per subwoofer
• Top-mounted M20 threaded pole socket
• Individual X-SUB 112SA dimensions (W × H × D): 385 × 500 × 485mm
• Individual X-SUB 112SA weight: 23.5kg

Frequently Asked Questions

Q: What is included in this FBT active PA system?

A: The bundle includes two FBT X-LITE 110A active speakers, two FBT X-SUB 112SA active subwoofers and two M20 speaker poles.  It also includes 2 XLR 2m cables to link the bottom SUB to the top XLITE110A.

Q: Does this system require a separate power amplifier?

A: No. Both the X-LITE 110A speakers and X-SUB 112SA subwoofers have built-in amplification. Each speaker and subwoofer requires its own mains power connection.

Q: Does the system have Bluetooth?

A: Yes. Bluetooth 5.0 is built into each X-LITE 110A top speaker. The X-SUB 112SA subwoofers receive their audio through wired signal connections.

Q: How should the speakers and subwoofers be connected?

A: A mixer’s left and right outputs can be connected to the two subwoofers, with the subwoofer link outputs feeding the corresponding X-LITE 110A speakers. The high-pass filter on each X-LITE speaker can then be engaged for use with the subwoofers.

Q: Can the X-LITE 110A speakers be used without the subwoofers?

A: Yes. The X-LITE 110A speakers are full-range active loudspeakers and can operate independently. Adding the X-SUB 112SA subwoofers provides deeper and more powerful bass reproduction.

Q: Are speaker poles included?

A: Yes. Two M20 speaker poles are included, allowing one X-LITE 110A speaker to be mounted above each X-SUB 112SA subwoofer.

Q: What applications is this PA system suitable for?

A: The system is suitable for mobile DJs, live bands, vocal performances, corporate events, entertainment venues and other applications requiring a complete stereo PA with dedicated subwoofers.
