Studiomaster Direct 101MX Compact Array System & Mixer Bundle

3963



Product Code: 3963



Studiomaster Direct 101MX Compact Array System & Mixer Bundle

Studiomaster Direct 101MX Compact Array System & Mixer Bundle

Product Code: 3963

£1264.00

1 in stock

2 to 3 Working Days Delivery

Qty

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later

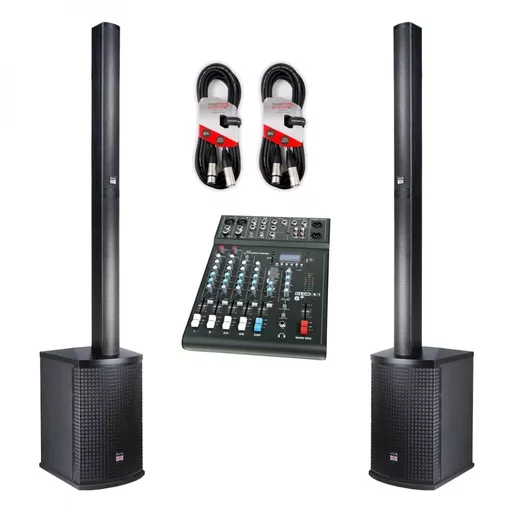

This PA system bundle doubles up on the Direct 101MX Compact Array System and adds a 6 channel mixer for control and versatility. This lends itself well to a number of uses and will work well in lots of settings.

Bundle Contents ...

  • 2x Studiomaster Direct 101MX 10" Active Compact Array System
  • 2x CORE350LU6BK : XLR-M to XLR-F Microphone Cable 6m Black
  • 1x Studiomaster Club XS 6+ 4 Channel Mixer

The self-powered all-in-one solution is an ultra-compact, powerful vertical array system for versatile use. DIRECT includes 6 x 3″ mid frequency transducers for perfect clarity of instruments and voice. The 1″ high precision driver delivers dynamic and clear highs. The subwoofer is featured by one professional 10″ transducer for well-defined lows. The on-board 4-channel mixer enables for a wide range of applications. Connecting microphones, instruments, players or even wireless bluetooth streaming sources: DIRECT is ready for it. The built-in DSP with it´s graphic display upgrades your sound to high definition audio quality.

  • Self-powered 3-way system for high definition sound (122 dB max.)
  • 6 x 3″ plus 1 x 1″ precision transducers
  • 120° x 30° ultra wide sound coverage (HxV)
  • 10″ subwoofer for deep and powerful lows
  • Class-D amplifier modules for low distortion and excellent sound, powerful SMPS (100 V – 240 V)
  • Extensive 4-channel mixer. 2 x MIC/LINE input (adjustable), 1 x RCA stereo input, 1 x HI-Z instrument input. 2 x XLR line ouput, 1 x SUB LEVEL controller for quick access
  • Powerful 24-bit DSP with display, ONE CONTROL encoder, storable presets, digital gain control, high-pass filter, delay, dual-channel limiter and equalization
  • Digital delay for delay zones up to 100 m (in steps of 0.25 m)




Analog Mixer

  • Inputs – 4 Channels (2x Mic/Line, 1x Hi-Z, 1x RCA & Bluetooth)
  • Input connectors – 2x XLR jack combo, 1x UNBAL TRS Jack, 1x RCA stereo
  • Input impedance – 10 k Ohms Balanced, 470 k Ohms Unbalanced
  • Output connector – 2x Line link XLR, 1x Main out XLR (pre DSP)

Amplifier

  • Rated power – 2 x 300 W RMS
  • Frequency range – 20 Hz – 20 kHz
  • DSP connection – 24 bit (1in-2out)

Subwoofer

  • Speaker type – 1 x 10″ transducer
  • Rated Power – 250W (RMS)
  • Rated Impedance – 4Ω
  • Dimensions (WxHxD) – 358*616*447mm
  • Net Weight (kg) – 21kg
