Adastra Call Station for RM244V Mixer Amplifier

Brand: Adastra

Adastra Call Station for RM244V Mixer Amplifier

Product Code: CS4

£127.00

23 in stock

2 to 3 Working Days Delivery

Qty

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later

455 reviews on

Product Details

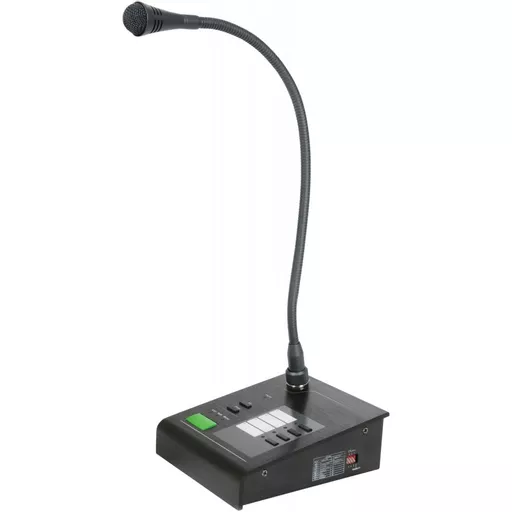

Paging microphone with call station base for use with the RM244V or RM4460 mixer-amps. Connected via RJ45 for both signal and power to simplify wiring. Zone assign buttons enable calling to one or all zones. Pressing the page button mutes all audio playback and plays one of 8 selectable chimes, opening the microphone to the selected zone(s). Pressing the reset button mutes the microphone and resumes background music playback to all zones. This system offers 4-zone paging without the additional cost of using a quad amplifier.

For use with the RM244V amplifier (953.244UK)
Assignable to individual or all 4 zones
8 selectable chime settings
3.5mm aux input
Up to 1km remote wiring over CAT5
Supplied with 1m RJ45 patch lead

Power supply 24Vdc, 500mA from RJ45 or optional adaptor
Max. connection length100m (CAT5 cable) or 1km with optional 24Vdc adaptor
CapsuleBack electret condenser
Polar pattern Cardioid

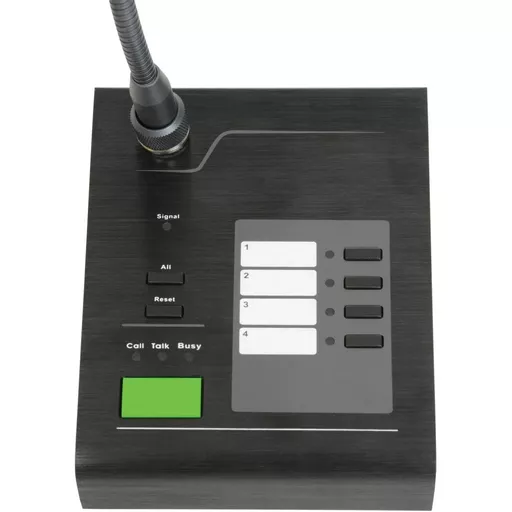

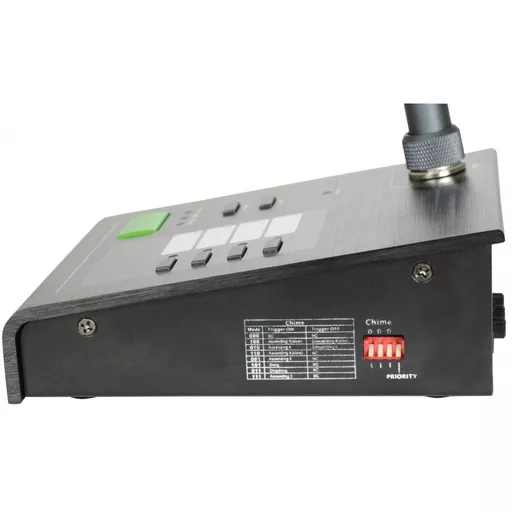

Controls Aux/Mic/Chime levels, chime DIP switches, zone/page buttons

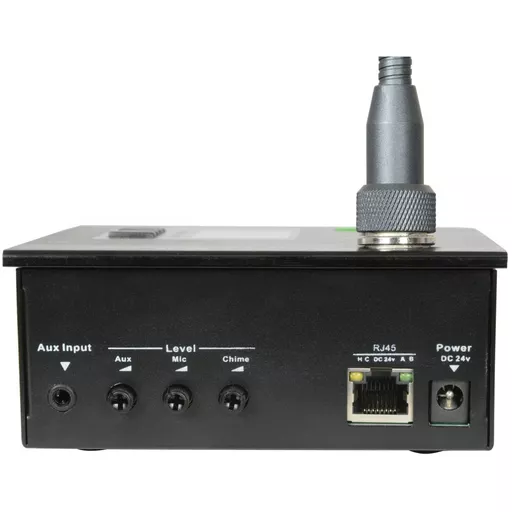

Connectors RJ45 to amplifier, 24Vdc power jack, 3.5mm aux in
Frequency response : -3dB150Hz - 22kHz
Input levelMic: -46dBV, Aux: -10dBV
Input impedance Mic: 600 Ohms, Aux: 50k Ohms
Output level 10dBV
Output impedance : balanced600 Ohms
S/N ratio-60dB (all channels selected)
Interface RS-485 control
Zone assign 4 zones or all selectable
Dimensions 460 x 140 x 115mm
Weight 670g
