Adastra CS-5 Call Station for RZ45 Audio Matrix

Brand: Adastra

Adastra CS-5 Call Station for RZ45 Audio Matrix

Product Code: CS-5

£119.00

1 in stock

Next Working Day Delivery

Qty

User Manual

Download now

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later

455 reviews on

Product Details

A paging microphone with call station base, to be used with the RZ45 audio matrix to create a comprehensive paging system. Zone assign buttons enable intuitive calling to any combination of up to 5 zones, with the Page button accordingly muting audio playback in those areas for clear vocal announcements. There is a choice of 8 paging chimes, and an AUX audio input for pre-recorded messages and alerts. Includes an RJ45 patch cable to connect the mic and audio matrix, conveniently passing signal and power via one CAT5 lead.

For use with the RZ45 audio matrix (953.045UK sold separately)
Assignable to individual or multiple zones
8 selectable chime settings
3.5mm AUX input
Up to 1km remote wiring over CAT5
Supplied with 1m RJ45 patch lead

Power supply 24Vdc, 500mA from RJ45 or optional adaptor
Max. connection length100m (CAT5 cable) or 1km with optional 24Vdc adaptor
CapsuleBack electret condenser
Polar pattern Cardioid
ControlsAux/Mic/Chime levels, chime DIP switches, zone/page buttons

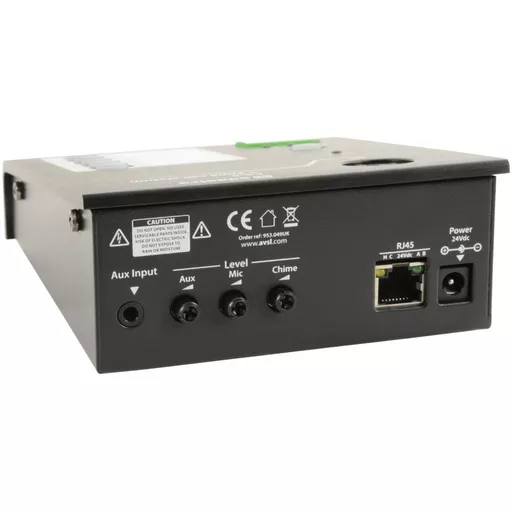

ConnectorsXLR, RJ45 to RZ45, 24Vdc power jack, 3.5mm aux in
Frequency response : -3dB150Hz - 22kHz
Input levelMic: -46dBV, Aux: -10dBV
Input impedance Mic: 600 Ohms, Aux: 50k Ohms
Output level 10dBV
Output impedance : balanced600 Ohms
S/N ratio-60dB (all channels selected)
Interface RS-485 control
Zone assign 5 zones, any combination
Dimensions 460 x 140 x 115mm
Weight 670g
