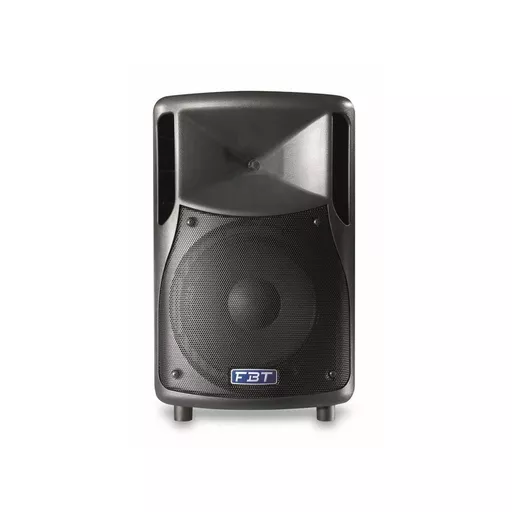

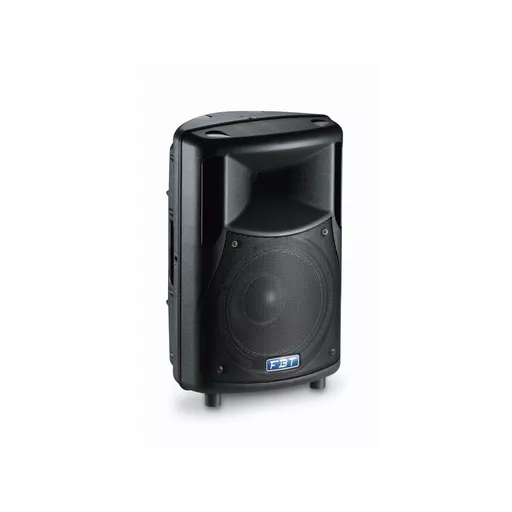

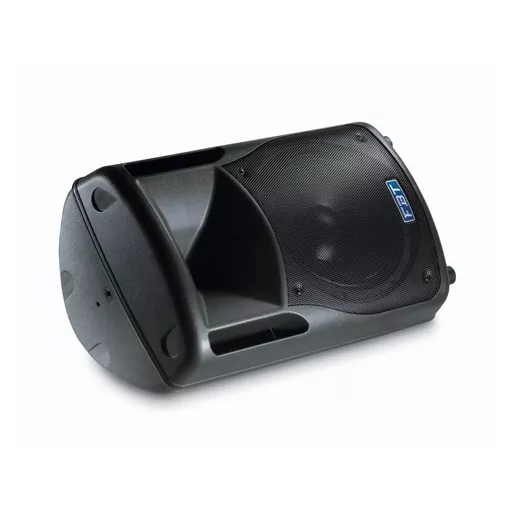

FBT HiMaxX 40 Passive Speaker

HIMAXX40P



Product Code: HIMAXX40P

Brand: FBT



FBT HiMaxX 40 Passive Speaker

Brand: FBT

FBT HiMaxX 40 Passive Speaker

Product Code: HIMAXX40P

£619.00

Out of Stock

2 to 3 Working Days Delivery

Out of stock.

User Manual

Download now

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later




The HiMaxX 40 is a passive 12" speaker with a B&C 1" compression driver.It features a sturdy, gas-injected polypropylene molded enclosure, engineered in Italy to contain undesired resonance.

With the new HiMaxX series, FBT establishes a reference point on the scenario of 12” and 15” enclosures in polypropylene for sound reinforcement, introducing performance and technical content of a standard unthinkable up until now. FBT HiMaxX takes its place alongside the FBTMaxX series, exalting all the technical features.

The study of a new cabinet in polypropylene, the use of a switch mode power supply and high efficiency power amplifiers and the redesign of the loudspeakers were the activities of the FBT R&D team aimed at maximizing the power weight ratio.

Compact and light weight, HiMaxX brilliantly solve all the most demanding requests from buffs, musicians and professionals looking for powerful, versatile and very high quality loudspeaker enclosures. Ideal for live and sound reinforcement applications requiring ease of transport, they are also suited to fixed installations, thanks to the cabinets’ format and optional accessories.

The low frequency driver is a custom designed B&C neodymium driver with a 3" voicecoil and a 1" compression driver with a 1.7" voicecoil also manufactured by B&C

  • Long Term Power: 250w
  • Short Tem Power: 1000w
  • Recommend amplifier: 500w
  • Sensitivity: 99dB




Key Features

  • 2-way, passive Bass-reflex design.
  • B&C custom designed 320 mm (12”) neodymium woofer with 75 mm (3”) voice coil.
  • B&C 25 mm (1”) compression driver with 44 mm (1.7”) voice coil.
  • 90°H x 60°V constant directivity horn.

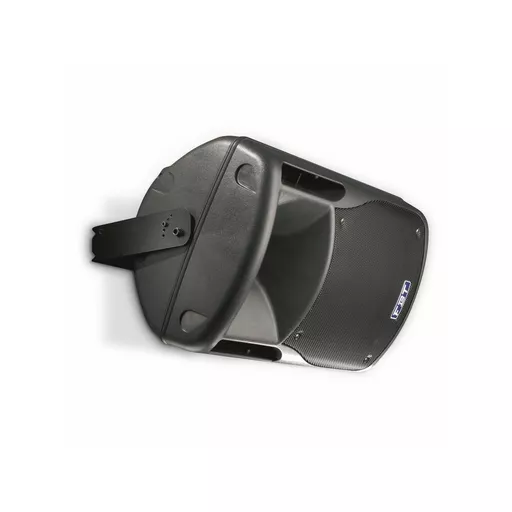

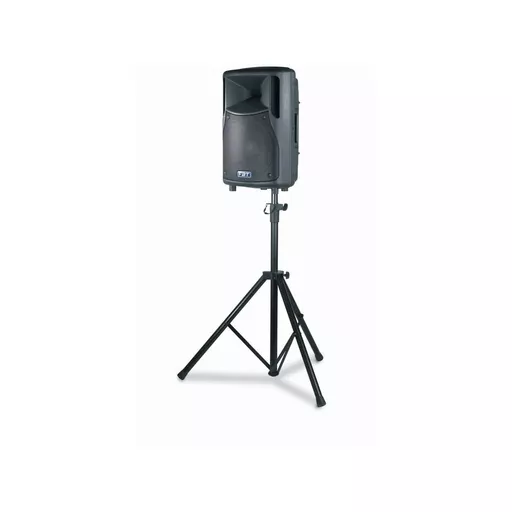

  • 4 x M10 anchoring points, 35 mm ø (1.38”) top-hat for speaker stand placement and wall bracket mount flange, 2 integrated carrying handles.
  • Enclosure suitable for stacking.
  • Passive version, 500Wrms/8ohm recommended amplifier.
  • Passive crossover filter featuring “soft-trip” circuitry to ensure full protection of LF woofer and HF driver.

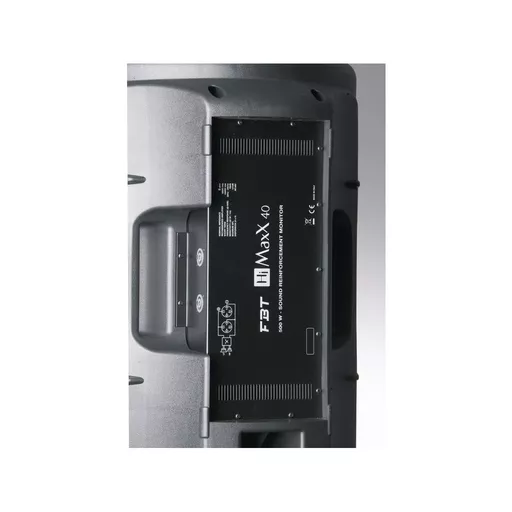

  • 2 NL-4 Neutrik™ Speakon connectors.

Technical Specifications

  • Configuration: 2 Way
  • Frequency response: 50Hz - 20kHz
  • Low frequency woofer: 12" with 3" VC
  • High frequency driver: 1" with 1.7" VC
  • Maximum SPL cont/peak: 127 / 131dB
  • Dispersion: 90 x 60 (HxV)
  • Input impedance: 8 ohm
  • Crossover frequency: 1.6 kHz
  • Input connector: 2x Speakon
  • Net Dimension (WxHxD): 407 x 634 x 370mm / 16 x 29.4 x 14.5in
  • Net Weight: 16kg / 35.2lb
  • Transport Dimension (WxHxD): 395 x 720 x 470mm / 19.5 x 28.3 x 18.5in
  • Transport Weight: 18.5kg / 40.8lb
