Compact Battery-Powered PA Speaker

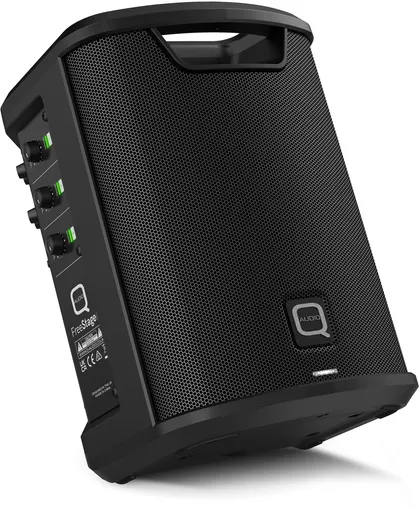

The Q-Audio FreeStage 6 is a compact battery-powered PA speaker designed for live performers, presenters, fitness instructors, schools, buskers and small events. Its rechargeable battery, built-in mixer and flexible playback options provide a self-contained sound system that can be used where mains power is unavailable or inconvenient.

A 100W RMS Class D amplifier with DSP processing powers the 6.5-inch coaxial loudspeaker system. With a maximum sound pressure level of 112dB and a frequency response of 60Hz to 19kHz, the FreeStage 6 is suitable for speech, recorded music, presentations, acoustic performances and portable entertainment.

Three-Channel Mixer with Microphone and Guitar Inputs

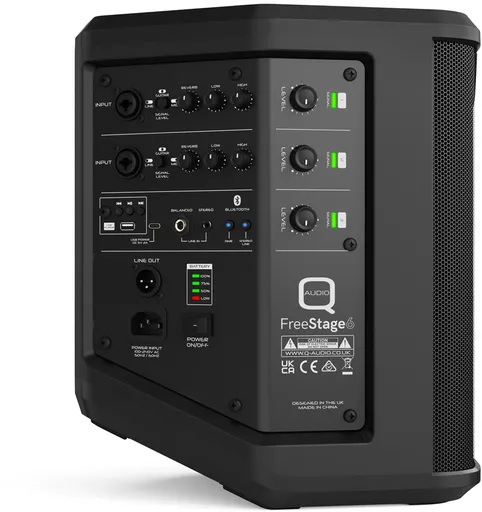

The integrated three-channel mixer allows microphones, instruments and audio equipment to be connected without requiring a separate mixing desk. Channels one and two each have an XLR and 6.35mm combination input with selectable microphone, line or guitar sensitivity.

Both channels include independent level, reverb, low EQ and high EQ controls. This allows microphones and instruments to be balanced and adjusted directly from the rear panel.

Channel three handles Bluetooth, USB playback and the additional line inputs. A balanced 6.35mm input is provided for professional line-level equipment, while the 3.5mm stereo input can be used with compatible phones, tablets, computers and music players.

Bluetooth, USB Playback and TWS Linking

Bluetooth connectivity provides convenient wireless playback from a compatible mobile device. Music can also be played directly from a suitable USB storage device using the integrated media controls.

The TWS function allows two compatible FreeStage speakers to be linked for wireless stereo playback. A balanced XLR mixed output is also available for sending the combined signal to another powered speaker, mixer or recording device.

Rechargeable Battery and Mains Operation

The internal 12V 6Ah rechargeable battery makes the FreeStage 6 suitable for portable use. It can also operate from a 100 to 240V AC mains supply while the battery is charging.

A battery-level indicator displays the approximate remaining charge. The USB-C 5V/2A output can charge a compatible phone or other portable device during use. This USB-C connection is an output and does not charge the speaker itself.

Key Features

• Compact battery-powered PA speaker
• 100W RMS Class D amplifier with DSP processing
• 6.5-inch coaxial loudspeaker system
• 30oz driver magnet
• 1.5-inch voice coil and 1.35-inch high-frequency driver
• Frequency response: 60Hz to 19kHz
• Maximum sound pressure level: 112dB
• Integrated three-channel mixer
• Two XLR and 6.35mm combination inputs
• Selectable microphone, line or guitar input sensitivity
• Independent reverb controls for channels one and two
• Independent low and high EQ for channels one and two
• Bluetooth wireless audio playback
• USB media player with playback controls
• TWS wireless stereo linking with a compatible FreeStage speaker
• Balanced 6.35mm line input
• 3.5mm stereo auxiliary input
• Balanced XLR mixed line output
• Individual level controls and signal indicators for all three channels
• USB-C 5V/2A charging output for compatible portable devices
• Internal 12V 6Ah rechargeable battery
• Battery-level indicator
• Universal 100 to 240V AC mains operation
• Dimensions (L x W x H): 290 x 240 x 335mm
• Net weight: 6.6kg

Frequently Asked Questions

Q: Can the Q-Audio FreeStage 6 operate without mains power?
A: Yes. It contains a rechargeable 12V 6Ah battery for portable operation. It can also run from mains power while the internal battery is charging.

Q: How long does the battery last?
A: A fixed operating time is not specified. Battery life varies according to volume, programme material, connected devices, USB-C device charging, battery condition and environmental factors.

Q: Can I connect a microphone directly to the FreeStage 6?
A: Yes. It has two XLR and 6.35mm combination inputs that can be switched to microphone sensitivity. Dynamic microphones and compatible wireless microphone receivers can be connected.

Q: Does the FreeStage 6 include a wireless microphone?
A: No wireless microphone is included. A suitable microphone or wireless microphone system can be connected separately.

Q: Can I connect a guitar directly to the speaker?
A: Yes. Either of the two combination inputs can be switched to guitar sensitivity for a compatible high-impedance instrument signal.

Q: Can two FreeStage speakers be connected together?
A: Two compatible FreeStage speakers can be linked using TWS for wireless stereo playback. The balanced XLR output can also send the mixed audio signal to another suitable powered speaker or mixer.

Q: Does the USB-C socket charge the FreeStage 6?
A: No. The USB-C connection is a 5V/2A output for charging compatible portable devices. The speaker and its internal battery are powered or charged through the mains inlet.

Q: Is the FreeStage 6 weatherproof?
A: No this product is not IP rated or weatherproof. The speaker should be kept dry and protected from rain, splashes and excessive moisture.
