Citronic D2400 Class-D Power Amplifier 2 x 1200w RMS

D2400



Product Code: D2400

Brand: Citronic



Citronic D2400 Class-D Power Amplifier 2 x 1200w RMS

Brand: Citronic

Citronic D2400 Class-D Power Amplifier 2 x 1200w RMS

Product Code: D2400

£349.00

Out of Stock

2 to 3 Working Days Delivery

Out of stock.

PayPal Pay Later

Klarna

User Manual

Download now

Free Standard Delivery over £50

Spend another £50 to qualify




The Citronic D2400 provides 2 x 1200W RMS at 4 ohms or 2 x 800W RMS at 8 ohms for compatible passive PA speakers. Its compact 1U housing and 4.6kg weight make it a practical choice for mobile DJ racks, live sound systems and permanent venue installations.

Efficient Class-D circuitry and Citronic’s cool guide technology support consistent operation at high output. A built-in limiter engages on signal peaks to help manage overload, while front-panel level controls and status indicators provide straightforward monitoring.

Stereo, parallel mono and bridge mono modes offer flexible configuration, including 2400W bridged output into 8 ohms. Selectable input sensitivity helps match the amplifier to your source equipment, and balanced XLR through outputs allow the signal to feed additional amplifiers.

Features & Specifications

  • Class-D stereo power amplifier
  • Compact 1U, 19-inch rack-mountable housing
  • Output at 4 ohms: 2 x 1200W RMS
  • Output at 8 ohms: 2 x 800W RMS
  • Bridged output at 8 ohms: 1 x 2400W
  • Stereo, parallel mono and bridge mono modes
  • Minimum load: 4 ohms per channel; 8 ohms bridged
  • Built-in peak-output limiter
  • Cool guide technology for efficient operation

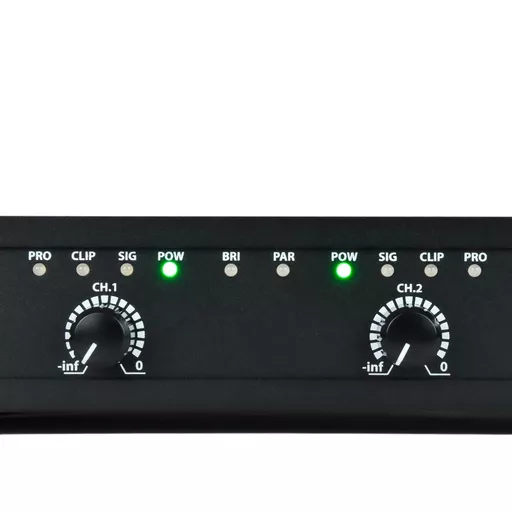

  • Independent channel level controls
  • Power, signal, clip and protection indicators
  • Soft-start circuit
  • Ground-lift facility
  • Switchable input sensitivity: 0.775V, 1.0V or 1.44V
  • Switchable 75Hz low-cut filter
  • Two balanced female XLR inputs
  • Two balanced male XLR through outputs
  • Left and right SPK speaker outputs plus dedicated bridge output
  • IEC mains inlet
  • Power supply: 220–240V AC, 50/60Hz
  • Fuse: T10A, 20 x 5mm
  • IEC power lead supplied
  • Dimensions: 482 x 350 x 44mm
  • Weight: 4.6kg

FAQs

Q: Does it deliver 1200W per channel?
A: Yes, into a 4-ohm load. With an 8-ohm load, output is 800W RMS per channel.

Q: Can it power passive subwoofers?
A: Yes, when impedance and power handling are suitable. Leave the 75Hz low-cut filter off and use appropriate external crossover filtering.

Q: Can I connect another amplifier to its XLR outputs?
A: Yes. The balanced XLR through outputs pass the input signal to additional amplifiers.

Q: What speaker load is required in bridge mode?
A: Bridge mode requires a minimum 8-ohm load and uses the dedicated bridge speaker output.
