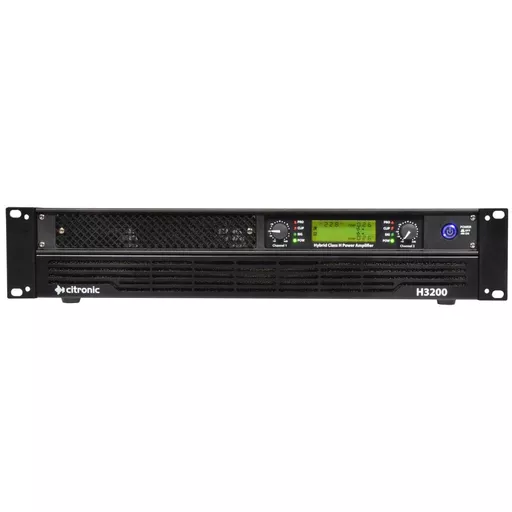

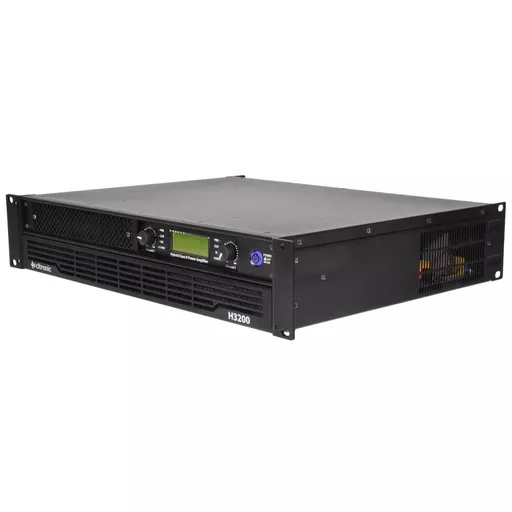

Citronic H3200 Hybrid Amp 2 x 1200w

H3200



Product Code: H3200

Brand: Citronic



Citronic H3200 Hybrid Amp 2 x 1200w

Brand: Citronic

Citronic H3200 Hybrid Amp 2 x 1200w

Product Code: H3200

£499.00

23 in stock

2 to 3 Working Days Delivery

Qty

User Manual

Download now

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later




Lightweight power amplifiers in a 19" rack-mountable housing for generating high sound pressure levels in medium to large sound reinforcement systems. H-series amplifiers employ a new hybrid class-H architecture, which combines the streamlined efficiency of a digitally controlled power section design with the power delivery and stability of a professional class-H output stage. Comprehensive internal protection monitors any thermal or overload conditions, automatically mutes at power on/off and provides active inrush limiting. A digital display continually shows the supply voltage, internal temperature and output level. A fully balanced signal path has 3 switchable input sensitivity levels to match different audio sources and the amplifier section can be set to operate in Stereo, Parallel or Bridge modes. A switchable 120Hz low-pass filter can be selected for use with subwoofers, avoiding the need for a separate crossover and saving additional expense and rack space. Speaker outputs can be connected using 1 or 2 Speakon leads as required. H-series amplifiers provide immediate and dynamic power on demand for sound contractors and PA installers that need dependable service with optimum sound quality.

  • Hybrid class-H circuit design
  • Digitally controlled and monitored power section
  • Switchable 120Hz low-pass crossover
  • Backlit LCD status display
  • Full internal thermal and overload protection
  • Stable down to 2 Ohms (4 Ohms bridged)

  • Power supply 200-240Vac, 50Hz (IEC)
  • Amplifier : constructionHybrid Class-H
  • Protection Short/open circuit, thermal, RF, DC fault, on/off mute, active inrush
  • Frequency response 20Hz-20KHz ±0.5dB
  • Crossover Switchable full range or fixed 120Hz low-pass filter
  • THD +N0.2%
  • S/N ratio-95dB
  • Damping factor >700
  • Input sensitivity 1.0V - 1.4V - 2.0V switchable
  • Input impedance 20K? (balanced),10K? (unbalanced)
  • Dimensions 483 x 361 x 44 mm (1U) 483 x 361 x 88 mm (2U)
  • Power rms @ 8 Ohms 2 x 800W
  • Power rms @ 4 Ohms 2 x 1200W
  • Power rms @ 2 Ohms 2 x 1600W (40ms burst 1kHz sine)
  • Power rms bridge @ 8 Ohms 2400W
  • Power rms bridge @ 4 Ohms 3200W (40ms burst 1kHz sine)
  • Weight 8.9kg
