DAP Audio SL-2.750 2 Channel Power Amplifier

Brand: DAP Audio

DAP Audio SL-2.750 2 Channel Power Amplifier

Product Code: SL-2750

£345.00

100 in stock

4 to 5 Working Days Delivery

Qty

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later

455 reviews on

Product Details

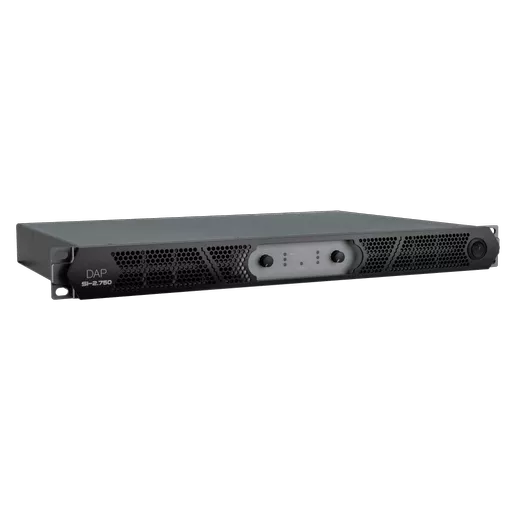

The DAP SI-2.750 is a compact and lightweight 2-channel power amplifier for fixed installations. In a 1U rack space it delivers 2x 750 W into 4 ohms, is capable of driving 2-ohm loads and can be bridged for even more power. It is designed for low impedance and high current with excellent stability.

It has a clip limiter and DC output protection to prevent damage to the loudspeaker. Output overload and short-circuit protection protects the amplifier from faults, as does over-temperature protection and high-temperature power attenuation.

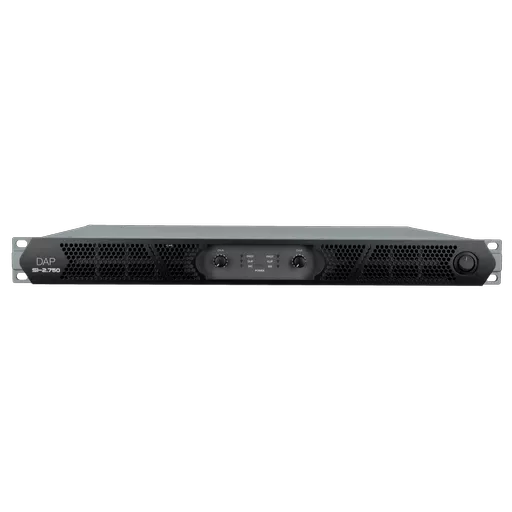

Signal, Clip, Fault and Power LEDs indicate the status of the amplifier. The output level can be adjusted for each channel using the volume controls. Gain can be set on the rear panel for 0.775 V input or 32 dB gain, and a mode switch selects stereo, mono and bridge modes.

The universal switching power supply uses active PFC and soft-switching technology, accepts input voltages from 100 - 250 V AC and is optimised for the audio power amplifier

Stable 2-ohm operation:Yes
Output per channel into 8 ohms at 1 kHz: 500 W
Output per channel into 4 ohms at 1 kHz: 750 W
Output per channel into 2 ohms at 1 kHz: 1130 W
Bridge output into 8 ohms at 1 kHz: 1500 W
Bridge output into 4 ohms at 1 kHz: 2250 W
Output channels: 2
Output mode: Bridge, mono, parallel, stereo

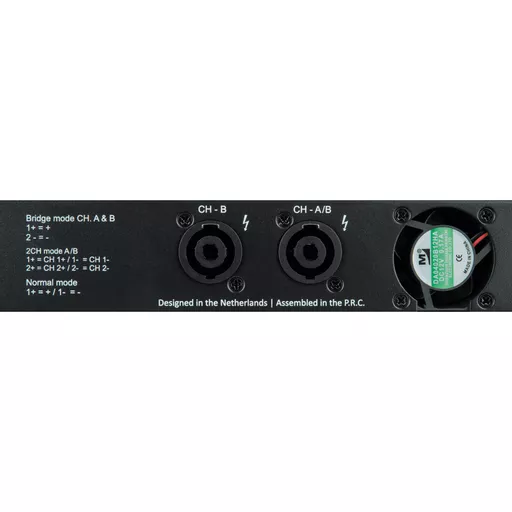

Output connection: Speaker Connector 4 pole
Mono inputs: 2

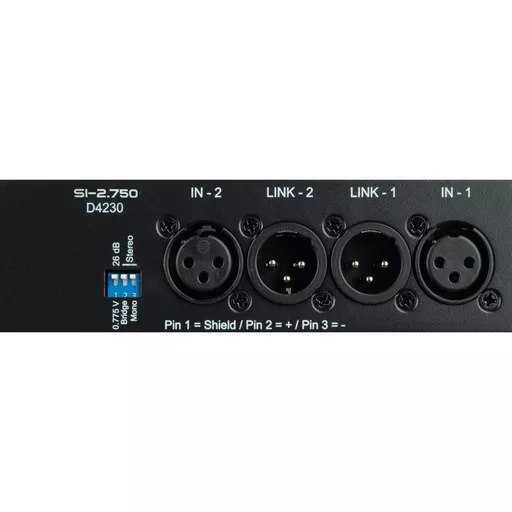

Mono input connection: 3-pin XLR
Mono input impedance: 20000 Ω
Balanced mono input Sensitivity: 32 dBu
Audio specifications
THD level: < 0.05 %
Signal-to-noise ratio: > 100 dB
Slope steepness: 50 V/μs
Amplifier technology: Class D
Attenuation factor: 1000 :1
Overlay: 75 dBu
Frequency response minimum: 20 Hz
Maximum frequency response: 20000 Hz
Electrical specifications and connections
Power supply: 100-240 V AC 50/60 Hz
Power consumption: 1075 W
Power input: IEC
Flightcase dimensions: 19"
Rack units: 1 U
Dimensions (HxWxL): 45x483x296mm
Weight: 5.4 kg
