Intusonic INTUFORCE 4SDL160 4CH Power Amplifier

4SDL160



Product Code: 4SDL160

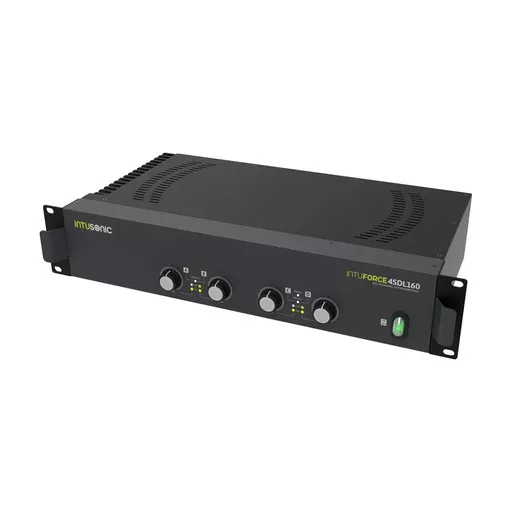

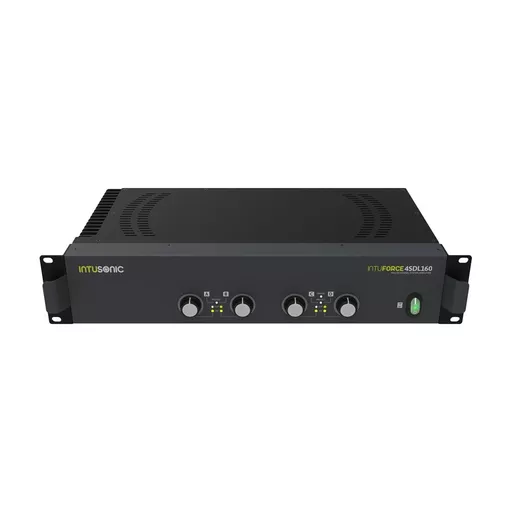

Intusonic INTUFORCE 4SDL160 4CH Power Amplifier

Intusonic INTUFORCE 4SDL160 4CH Power Amplifier

Product Code: 4SDL160

£375.00

41 in stock

2 to 4 Working Days Delivery

Qty

User Manual

Download now

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later




The INTUFORCE™ 4SDL160 is – despite its simple front panel layout – a very versatile system amplifier for LoZ installed sound systems. Via its comprehensive rear-panel controls, it can be set from a 4-zone amplifier to a dual stereo amplifier or a 2.1 satellite & subwoofer system amplifier. The latter is facilitated by it’s in-built active crossover with 4 selectable crossover frequencies and its bridging feature for the 3rd and 4th channel. Larger systems are easily set up via the link connectors. Built on cutting edge class D technology, the unit is convection cooled and hence also suitable for applications sensitive to background noise. The conservative switch mode PSU design delivers not only peak power, but also long-term endurance. Best to be combined with 2 or 4 satellite speakers and a subwoofer as one compact system.


  • 4 individual amplifier blocks with 150W power @ 4Ω each
  • Class D topology with switch mode power supply
  • Amplifier 3 and 4 bridgeable via rear-panel switch (front LED)

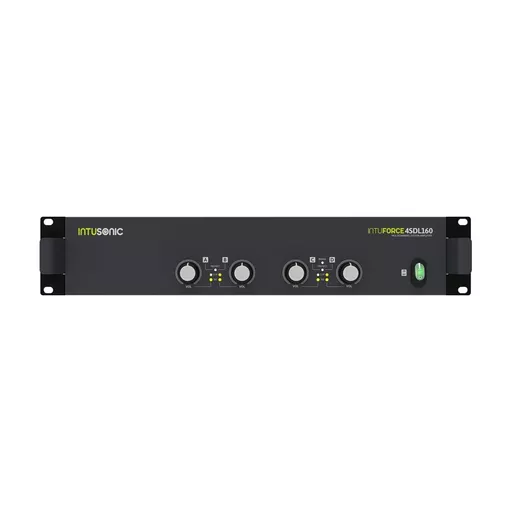

  • Front-panel controls for volume and indicators for signal and clip  per channel plus protection indicator per channel pair

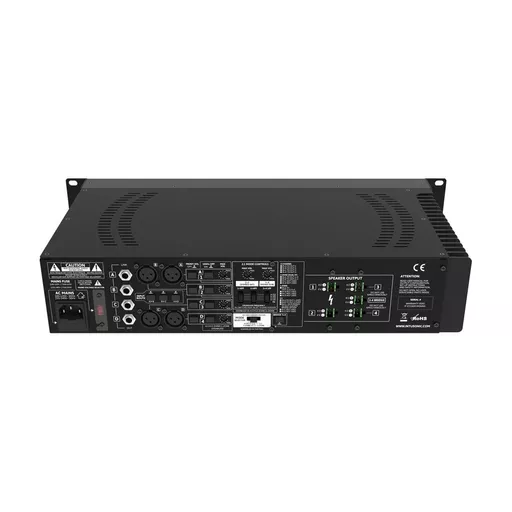

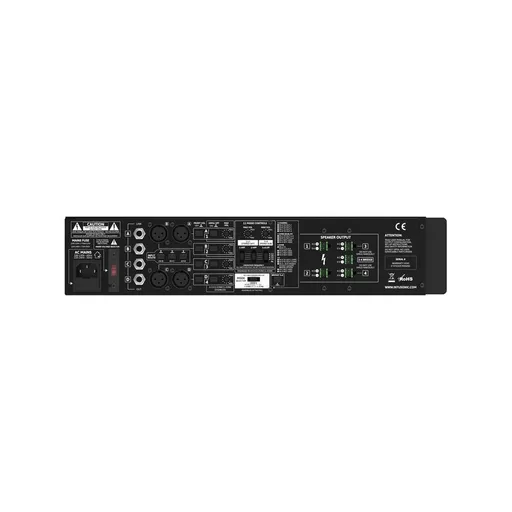

  • Rear-side switch to disable front-side volume controls
  • Rear-side adjustable maximum volume per channel
  • Rear-side switchable 100Hz HPF per channel
  • Input section with balanced XLR connectors and ultra-high CMRR circuitry for long cable runs
  • Input signal throughput via balanced TRS Link connectors
  • Input signal forwarding switches to set 1-to-4, 2-to-2 and 4-to-1 configurations without external cabling
  • Mode switch to select 4-Zone, 2-Zone, 1-Zone and 2.1 modes
  • Active crossover with 4 selectable frequencies (120/150/180/ 210Hz) for 2.1 Mode, separate sat/sub volume controls
  • Speaker output via 5.0mm terminal strip connectors
  • Noiseless convection cooling without fan
  • Full metal case with separately detachable rack ears and handles
  • AC mains voltage selector 115/230V
  • Rated Power @ 4Ω/8Ω: 4x 150W/80W
  • Frequency response:  20Hz – 20 kHz
  • S/N ratio: > 74 dB
  • Crosstalk damping: > 55dB
  • THD&N (rated power):  < 0.12%
  • AC IN: 115V/230~ 50/60Hz, max 700W
  • Dimensions WxDxH: 482.6x245x88mm
  • Weight: 4.6 kg
