Citronic FLITE-1000 Powered Mixer with Two UHF Microphones

The Citronic FLITE-1000 is a self-contained powered PA mixer combining six audio inputs, two-channel amplification, DSP effects, Bluetooth, USB audio and a dual UHF wireless microphone system.

Its amplifier delivers 2 x 500W RMS into 4-ohm passive speakers or 2 x 250W RMS into 8-ohm speakers. The complete system is installed inside a heavy-duty moulded flight case with locking catches, a carrying handle and a separate storage compartment for the supplied microphones.

The FLITE-1000 provides a portable audio-control and amplification system for mobile entertainers, fitness instructors, schools, presentations and other applications using passive PA speakers.

Six-Input Audio Mixer

Four combination XLR and 6.35mm inputs accept microphone or line-level signals. An additional stereo line input uses separate left/mono and right 6.35mm connections.

Each mixer channel has low and high EQ controls, offering ±15dB adjustment at 80Hz and 12kHz. Switchable +48V phantom power is available through the XLR inputs for compatible condenser microphones and active DI equipment.

Stereo XLR line outputs allow the mixed audio signal to be connected to additional sound equipment.

Two-Channel PA Amplifier

The built-in amplifier provides two independent speaker outputs through locking SPK connectors.

It delivers 2 x 500W RMS when connected to compatible 4-ohm speakers or 2 x 250W RMS with compatible 8-ohm speakers. The impedance of each connected speaker system must be matched to the amplifier’s output requirements.

Dual UHF Wireless Microphone System

Two handheld UHF wireless microphones are included with the FLITE-1000. They operate on separate frequencies of 863.1MHz and 864.5MHz, with a wireless range of up to 50 metres.

Two detachable UHF antennas connect to the powered mixer through BNC sockets. The microphones can be stored inside the dedicated compartment when the system is being transported.

99-Program DSP Effects

The integrated DSP section contains 99 effects programs for processing vocals, instruments and other compatible sources.

Each program provides two adjustable parameters, allowing the selected effect to be modified for different performance requirements.

Bluetooth and USB Audio

Bluetooth 5.1 provides wireless audio playback from compatible phones, tablets and computers. The Bluetooth receiver has its own volume control.

The USB audio player supports MP3, WAV, APE and FLAC files stored on a compatible flash drive. Audio can also be recorded directly to the USB drive.

When connected to a compatible PC or Mac, the FLITE-1000 can operate as a USB audio device for playback and recording.

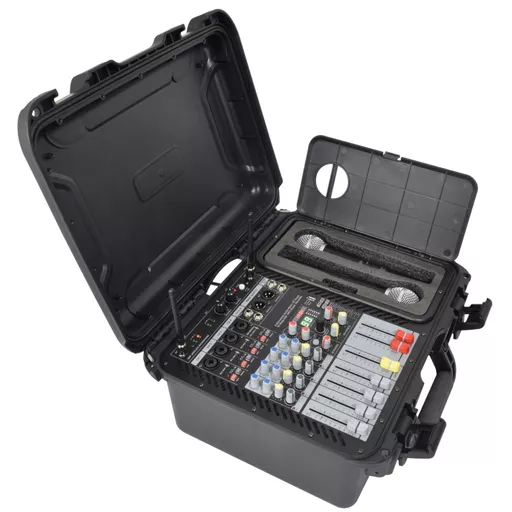

Portable Flight Case Design

The powered mixer is permanently installed inside a heavy-duty moulded flight case. Dual locking catches secure the lid during transportation, while the integrated carrying handle makes the unit easier to move between venues.

Opening the case provides direct access to the mixer, amplifier, wireless microphone receiver and media controls.

Key Features

• Self-contained powered PA mixer
• Six-input mixer configuration
• Built-in two-channel power amplifier
• RMS output at 4 ohms: 2 x 500W
• RMS output at 8 ohms: 2 x 250W
• Four microphone and line-level input channels
• Four combination XLR and 6.35mm input connectors
• Stereo line input with left/mono and right 6.35mm connectors
• Switchable +48V phantom power on XLR inputs
• Mixer-channel dynamic range: 102dB
• Low EQ: ±15dB at 80Hz
• High EQ: ±15dB at 12kHz
• 99-program DSP effects processor
• Two adjustable parameters for each DSP program
• Two UHF handheld wireless microphones included
• Wireless microphone frequencies: 863.1MHz and 864.5MHz
• Wireless operating range: up to 50 metres
• Two detachable UHF antennas included
• BNC antenna connections
• Bluetooth 5.1 receiver
• Independent Bluetooth volume control
• USB audio player and recorder
• Supports MP3, WAV, APE and FLAC audio files
• USB audio connection for compatible PC and Mac computers
• Stereo left and right XLR line outputs
• Left and right locking SPK speaker outputs
• Heavy-duty moulded flight case
• Dual locking case catches
• Integrated carrying handle
• Separate wireless microphone storage compartment
• IEC mains power connection
• IEC power lead included
• Power supply: 220 to 240V AC, 50Hz
• Dimensions: 430 x 350 x 205mm
• Weight: 6.8kg

Frequently Asked Questions

Q: How much amplifier power does the FLITE-1000 provide?
A: It delivers 2 x 500W RMS into 4-ohm speakers or 2 x 250W RMS into 8-ohm speakers.

Q: Are speakers included with the powered mixer?
A: No. Compatible passive PA speakers and speaker cables are required separately.

Q: How many microphones are included?
A: Two handheld UHF wireless microphones and two detachable UHF antennas are included.

Q: What are the wireless microphone frequencies?
A: The microphones operate on 863.1MHz and 864.5MHz, with a range of up to 50 metres.

Q: Does the FLITE-1000 provide phantom power?
A: Yes. Switchable +48V phantom power is available through the four XLR inputs.

Q: Can the FLITE-1000 play and record audio through USB?
A: Yes. It can play compatible files from a USB flash drive, record audio to the drive and operate as a USB audio device with a compatible PC or Mac.

Q: Does the mixer include built-in effects?
A: Yes. The DSP section contains 99 effects programs with two adjustable parameters for each program.

Q: What is included with the FLITE-1000?
A: The package contains the powered mixer, two handheld UHF wireless microphones, two UHF antennas and an IEC power lead.
