elumen8 TOUR 1.5mm2 Power Signal Combi Cable 100m Reel

CABL623



Product Code: CABL623

Brand: elumen8

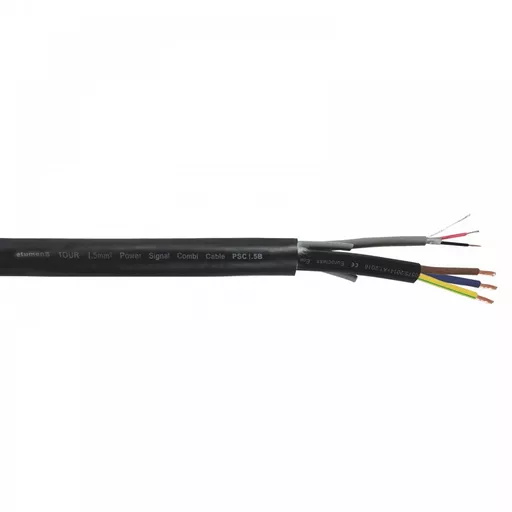

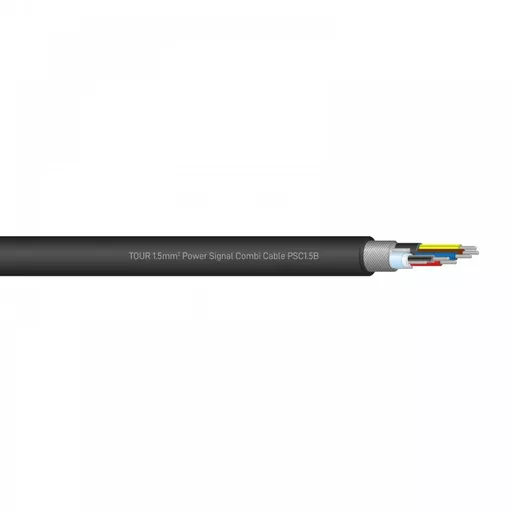

elumen8 TOUR 1.5mm2 Power Signal Combi Cable 100m Reel

Brand: elumen8

elumen8 TOUR 1.5mm2 Power Signal Combi Cable 100m Reel

Product Code: CABL623

£435.00

7 in stock

2 to 3 Working Days Delivery

Qty

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later




Hybrid multicore comprising of a screened and jacketed signal pair combined with 1.5mm jacketed power cables. Ultra flexible and designed for touring use this cable range provides an elegant solution to the problem of integrated signal and power distribution. Constructed using carefully selected fillers to maintain the overall shape and facilitate easier coiling.


  • Analogue or AES digital audio, RS422/485 or DMX512 control with a three core power cable
  • H05VV-F harmonised standard 1.5mm² power
  • Suitable for most 110Ω balanced data application such as RS422, RS485, DMX512 and timecode
  • Oxygen-free copper cores for maximum signal integrity
  • Supplied on 100m reels
  • Operating temperature range: -20 to +70°C
  • Filler: PVC plus non-woven fabric
  • Outer jacket
  • Soft PVC outer jacket: 15.5mm outer diameter
  • 1.2mm outer jacket thicknessCross section: 1.5mm²
  • Perm current rating open air: 15A
  • 8.2mm black PVC jacke
  • Conductors: 2 x 0.23mm² (24AWG)
  • Tinned copper drain wire: 0.22mm² (24AWG)
  • Aluminium foil shield
  • 110Ω impedance
  • 4.1mm diameter grey PVC jacket
