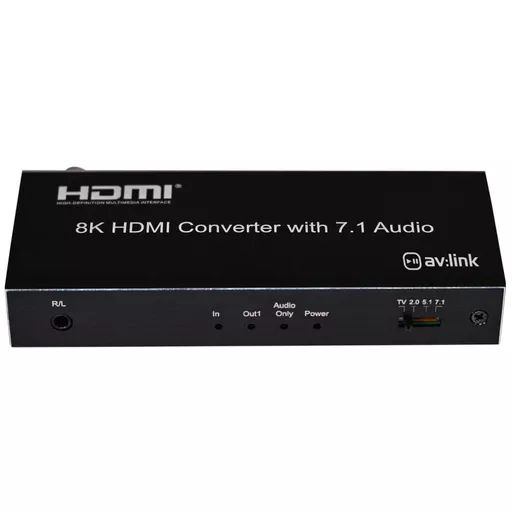

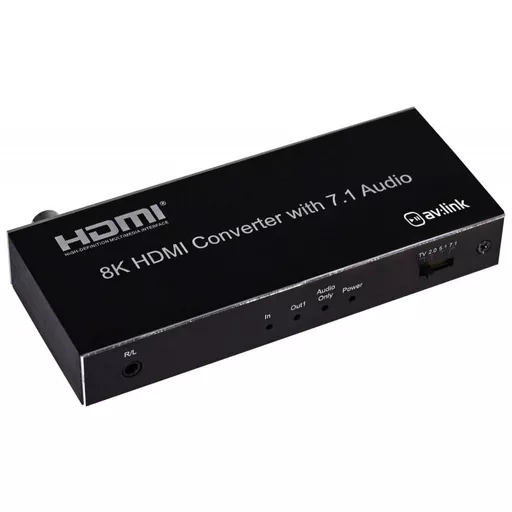

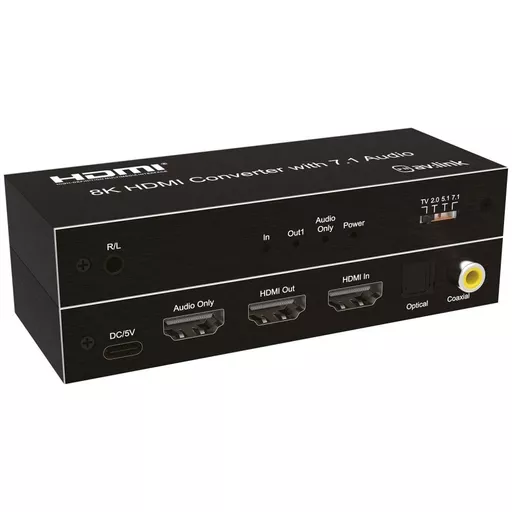

AV Link 8K HDMI Audio Extractor

8KHDMI-EXT



Product Code: 8KHDMI-EXT

Brand: AV Link



AV Link 8K HDMI Audio Extractor

Brand: AV Link

AV Link 8K HDMI Audio Extractor

Product Code: 8KHDMI-EXT

£59.00

143 in stock

2 to 3 Working Days Delivery

Qty

User Manual

Download now

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later




State of the art audio converter that extracts digital (HDMI, Toslink and Coaxial) and/or Analogue (3.5mm stereo) audio signals from a single 8K HDMI source device. With support for newer technologies including VRR, LPCM5.1/7.1 and Dolby Atmos this unit is ideal for audio separation from the latest PC's and games consoles.

  • Extracts digital (HDMI, Toslink and Coaxial) and/or Analogue (3.5mm stereo) audio signals from a single HDMI source device
  • Supports HDMI input/output resolutions up to 7680×4320 @ 60Hz
  • Supports Variable Refresh Rate (VRR) and HDR10
  • Simple plug and play installation and instant synchronisation without delay
  • Attractive brushed metal finish

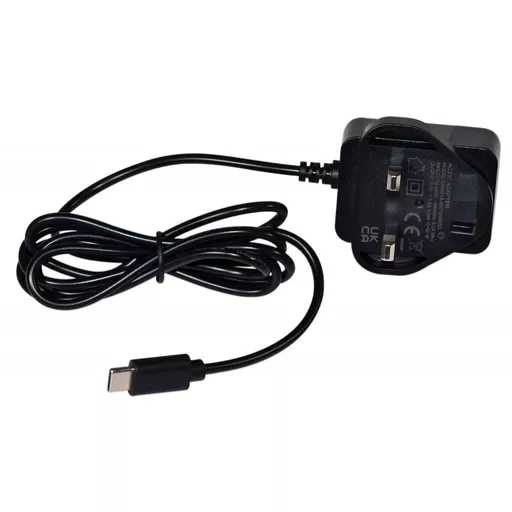

  • UK mains adaptor supplied (DC5V/1A)

  • Input connections HDMI (8K), USB-C (DC/5V power input)

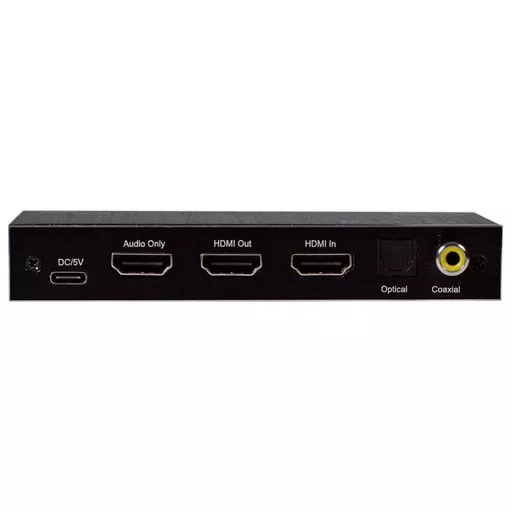

  • Output connections HDMI (8K), HDMI (audio only), Optical (Toslink), Coaxial, 3.5mm (Stereo)
  • Video resolution Up to 7680 × 4320 @ 60Hz
  • Video format 8/10/12 bit deep colour
  • Max. baud rate 40Gbps
  • Audio output HDMI: PCM2.0, LPCM5.1/7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X
  • Audio output SPDIF/COAX: LPCM2.0/5.1, Dolby Digital 2.0/5.1, DTS2.0/5.1
  • Audio output 3.5mm Jack: Analogue stereo 2.0ch
  • Max. cable length Input: 8K/60Hz≤3m, Output: 8K/60Hz≤5m
  • Power supply Input AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
  • Dimensions 121 x 57 x 19mm
  • Weight 118g
