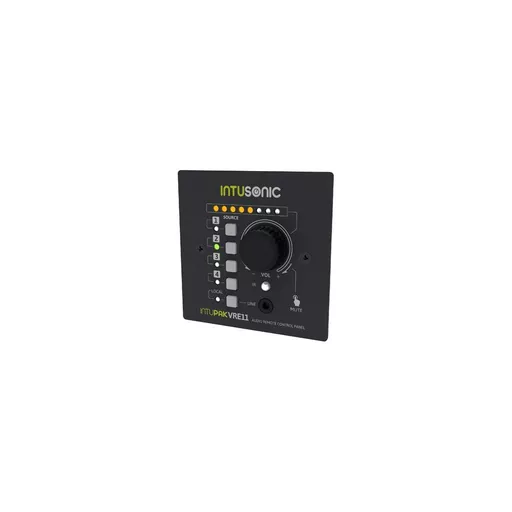

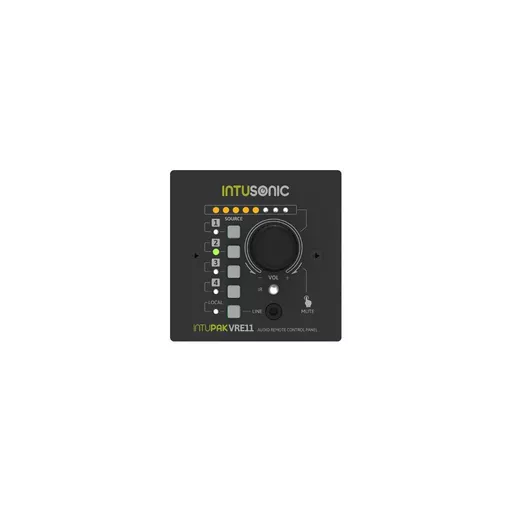

Intusonic INTUPAK VRE11 RS485 Remote Panel

VRE11



Product Code: VRE11



Intusonic INTUPAK VRE11 RS485 Remote Panel

Intusonic INTUPAK VRE11 RS485 Remote Panel

Product Code: VRE11

£55.00

46 in stock

2 to 4 Working Days Delivery

Qty

User Manual

Download now

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later

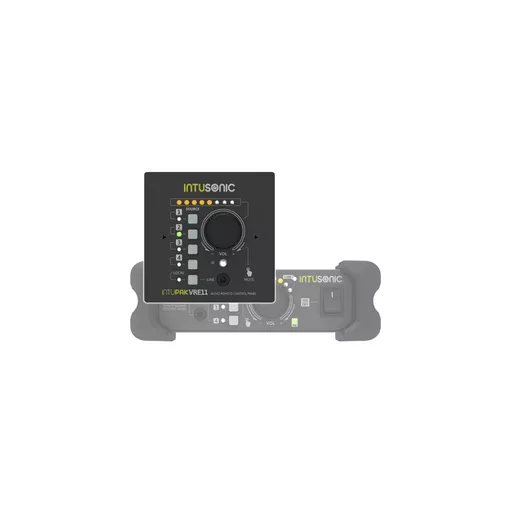

Despite its unimposingly elegant looks, the INTUPAK™ VRE11 is a powerful and versatile user frontend for Intusonic’s RS-485 enabled audio control systems. It fits standard wall box sizes with minimal depth and hence can be mounted right where its needed – in the room to be controlled. A standard CAT network cable is sufficient for connections; no additional power supply is required. Due to its daisy-chaining possibilities, more than one unit can be installed in a room, with the last operated one setting the system, and those settings being replicated on all VRE11 panels as well as the connected main unit. A local audio feed is possible as well, via the provided 3.5mm jack. For even better convenience, the VRE11 also sports an infrared remote control receiver and comes with a IRB44 remote control right out of the box. The VRE11 is compatible with the VLA42 control node and other RS-485 enabled INTUSONIC audio systems.


  • Replicates all main unit controls: source selector, volume control, volume indicator (8 LEDs)
  • Additional local stereo 3.5mm TRS input (mono audio transmission to main system)
  • Includes 2 metal panels, compatible with common EU/GB wall box sizes
  • Connection to main unit via standard Cat5/Cat6 cable

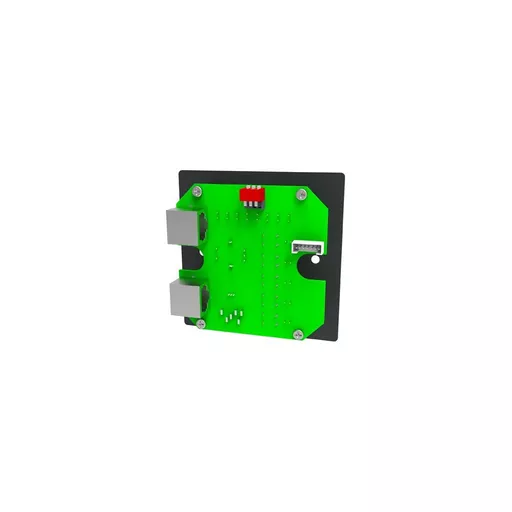

  • Assignable to one of 8 zones via on-board DIP-switch
  • Multiple units can be daisy-chained with “last setting rules” system

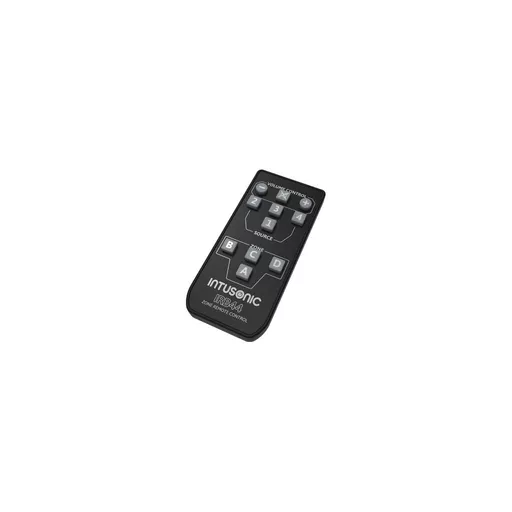

  • IR remote feature (IRB44 remote control included)
  • No PSU required – power supply provided by main unit (max. 50m)
  • Compatible with VLA42 and other Intusonic products with RS485 source/volume setting
  • CE/ROHS compliant
  • Data connection: Intulink™ (RS485) via CAT5/6
  • Power supply: ±12V DC via Intulink™ bus
  • Audio Input: 3.5mm stereo TRS (mono summed)
  • Max. Number of zones: 8
  • Dimensions WxDxH: 86x86x42 mm (/w knob)
  • Mounting depth: 30 mm
  • Weight: 0.15kg
