Q-Audio QXOVER23 Venue Sound Stereo 2/3 Way Active Crossover

QXOVER23



Product Code: QXOVER23

Brand: Q-Audio



Q-Audio QXOVER23 Venue Sound Stereo 2/3 Way Active Crossover

Brand: Q-Audio

Q-Audio QXOVER23 Venue Sound Stereo 2/3 Way Active Crossover

Product Code: QXOVER23

£117.00

93 in stock

2 to 3 Working Days Delivery

Qty

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later




Using an active crossover in a sound system will always sound better than using passive ones. Separating the bass frequencies from the high frequencies makes a significant difference to the overall sound system performance.

The Q-Audio QXOVER23 is a stereo 2-way or 3-way mono active crossover. Active crossover sits between mixer and amplifier, normally using balanced line level cables. The incoming signal is divided into different frequency bands via precise Linkwitz-Riley filters and offer good speaker driver protection by their steep 24dB/Octave slope. For further protection, 25 Hz Low Cut filters are provided to eliminate inaudible high-energy bass content.

The unit also offers an independently-adjustable subwoofer output, providing an extra low-frequency band in a control range from 10-235 Hz making it effectively a 3-way stereo or 4-way mono active crossover. Mute and Phase Invert switches for all outputs make troubleshooting a breeze. Compared to digital loudspeaker management systems, the QXOVER23 is not only more affordable, but it also offers greater ease-of-use and a full 20dB signal headroom that only an analogue processor can provide.

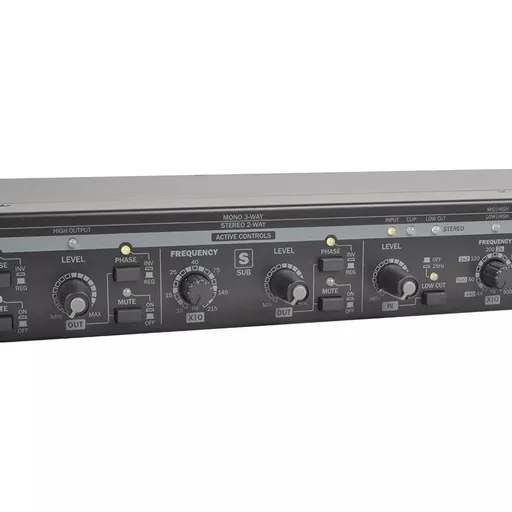

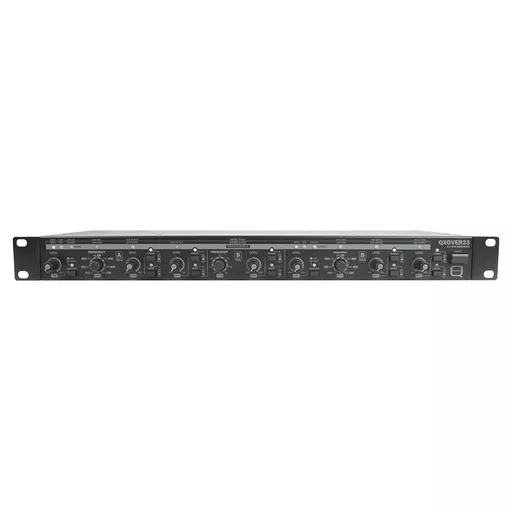

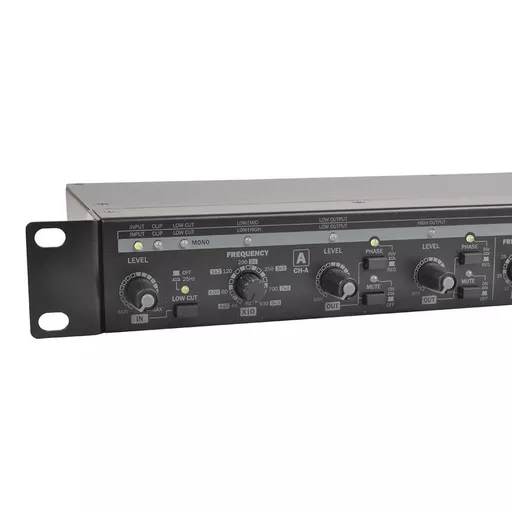

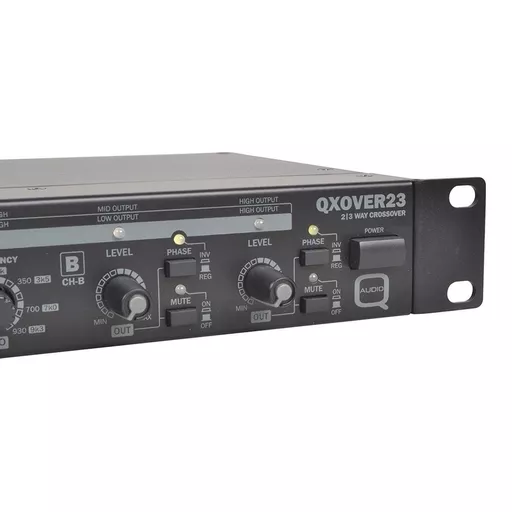

  • 1U 19" Rack mountable Active Crossover.
  • Stereo 2 Way, Mono 3 Way Settings.
  • Crossover Frequencies Adjustable.
  • Subwoofer Output with Frequency Control.
  • Individual Output Level Controls for all Bands.
  • Output Mute Switches for all Bands.
  • Phase Reverse Switches.
  • Low Frequency protection 25Hz Switch.

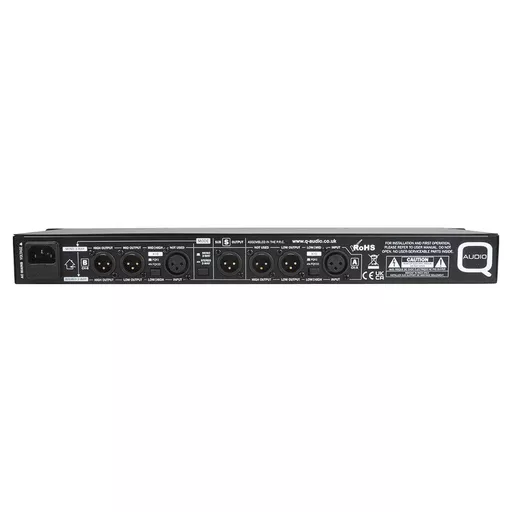

  • Input and Outputs are Balanced.
  • XLR Connections
  • S/N Ratio: >91dBu (unweighted 22Hz-22KHz)
  • Frequency Range: 20Hz - 20 kHz
  • Weight: 2.3 kg
  • AC Power: 115/230V~ 50Hz-60Hz (20W)
  • THD: <01%
  • Cross Talk: >92dB
  • Dimensions (WxHxD): 483mm x 44.5mm x 162mm
