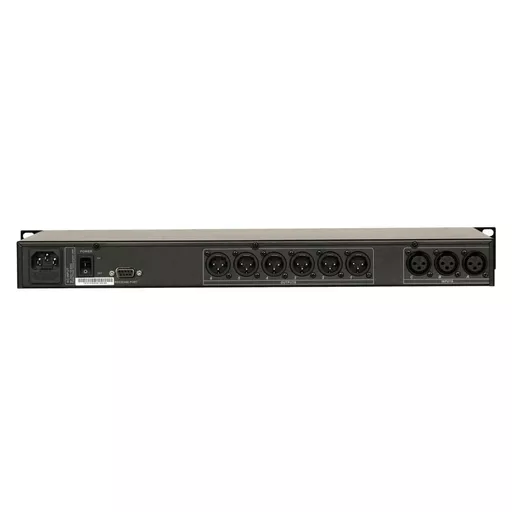

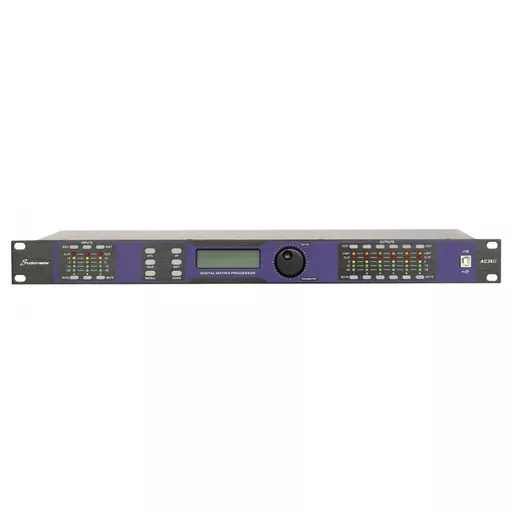

Studiomaster AC-36 3 Input 6 Output Speaker Processor

AC36



Product Code: AC36



Studiomaster AC-36 3 Input 6 Output Speaker Processor

Studiomaster AC-36 3 Input 6 Output Speaker Processor

Product Code: AC36

£589.00

2 in stock

2 to 3 Working Days Delivery

Qty

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later




Power, precision, and performance meet the Studiomaster AC-36. This 3-input, 6-output speaker processor delivers crystal-clear audio control with advanced DSP technology, making it perfect for live sound, installations, and touring rigs. With intuitive software and flexible routing, the AC-36 gives you total command over your sound loud, clear, and exactly how you want it.


  • 48kHz sampling rate, 40-bit DSP processor, 24-bit AD/DA convertor.
  • Input processing includes Gain, Mute, Link, High-cut, Low -cut, Noise gate, 5PEQ, Phase, Delay.
  • Output processing includes Crossover, 6PEQ, Gain, Mute, Compressor/Limiter, Phase, Delay, Link.
  • Every input and output can do matrix assign freely.
  • Adjustable PEQ frequency, Gain and Bandwidth, the gain step is 0.1dB, we can choose style: Peak, H-shelf, L-shelf, LP-6dB, LP-12dB, HP-6dB, HP-12dB.
  • The style of all High-cut, Low-cut filter and Distributor Unit: Butterworth, Linkwitz- Riley, Bessel, Slope is-6dB/oct ~-48dB/oct.
  • Adjustable compressormiter threshold, soft knee, ratio, attached time and release time. Noise gate’s threshold, hold time, attached time and release time can be adjustment.
  • The parameters of input and output adjusting are linkable, revisable input and output channels.
  • All delay module’s delay time can reach over 680ms the step is: 0.021ms.
  • Parameter setting of each channel can copy freely, build-in signal generator.
  • Input and Output on the front panel are equipped with 5-segment high precision level indicators, key indicators, security protection function.
  • 30 user preset, 1factory preset, device parameter and single preset file can save in computer; it also can download from computer and save in
  • the device. The device itself can store multiple preset parameters and recall freely. With PC software, one-key online made the operation more
  • convenient.
  • USB and RS232 controlling ports, Online remote control and 255 units linkable through Rs485.
  • System Specification: Frequency Response: 20Hz~20kHz, -0.3dBu, S/N Ratio: >110 dBu, Distortion(THD): <0. 01at1kHz(0dBu), Cross-talk:
  • Input Section: Type: Balanced XLR, Max. Input Level: +15dBu, Impedance: 1M/ΩStereo; 500kΩ/MONO
  • Output Section: Type: Balanced XLR, Max. Output Level (bypass): +15dBu, Impedance: <500Ω
  • Digital Processing: 24-bit sigma – delta converters, 48kHz Sampling Rates
  • Display: 20x2LCD Display For Parameters Setting And Function Select
  • Power Supply: AC~95V-264V FUSE 250VAC/2A FAST
  • Dimension(LxWxH): 82x205x44CM
  • Weight: 2.88kg
