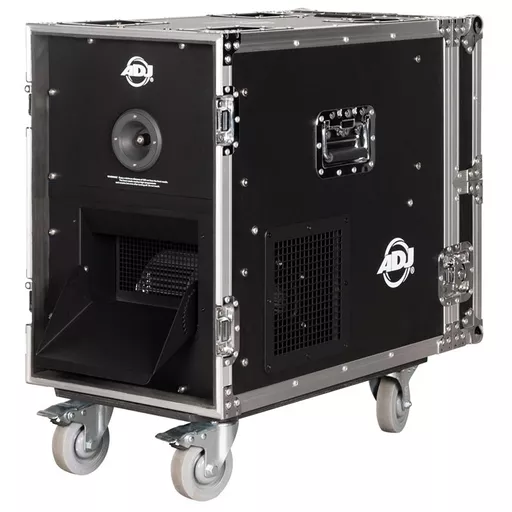

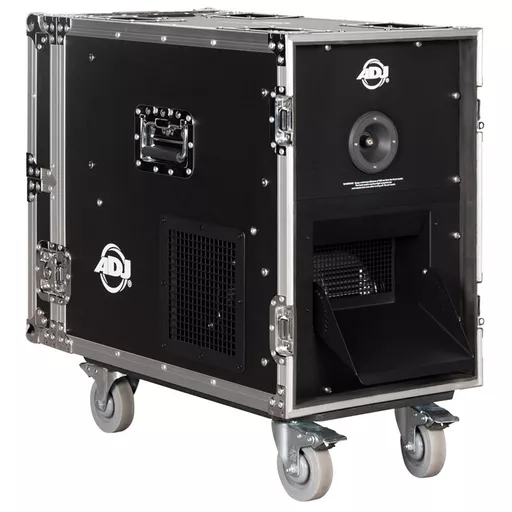

ADJ Entour Pileus Professional Fog & Faze Machine

The ADJ Entour Pileus combines powerful fog effects and fine, dispersed faze in one professional atmospheric machine. Designed for production companies, touring shows and entertainment venues, it uses water-based fog fluid to create anything from dramatic clouds to a lighter atmosphere that makes lighting beams more visible.

Output reaches approximately 1,700m³ per minute, with independently adjustable fog volume and fan speed. This gives operators control over both the amount of fog produced and its dispersion, allowing the effect to suit different scenes and lighting looks.

Adjustable Output for Different Show Requirements

Fog output and fan speed are each adjustable from 5–100%. With Continuous Mode disabled, the machine delivers maximum-output bursts lasting up to 35 seconds. Enabling Continuous Mode automatically regulates output to allow longer bursts.

Two 5.6-litre tanks provide 11.2 litres of total fluid capacity. The machine draws from one tank at a time, with manual transfer of the feed hose required to change tanks.

DMX Control and Touring Construction

Choose onboard operation using the LCD and four-button control panel, or integrate the machine into a lighting system using its 5-pin DMX connections. Three DMX modes offer a choice of channel footprints, while the onboard timer supports repeated atmospheric effects.

The integrated flight case and heavy-duty locking castors suit regular transport and deployment. A 30-second self-cleaning cycle supports fluid-system maintenance, alongside the routine care specified in the manual.

Features & Specifications

• Professional fog and faze machine for large productions and venues.
• Produces dense fog or a lighter, fan-dispersed atmospheric effect.
• Uses approved water-based fog fluid.
• Recommended fluid: ADJ Fog Juice 2 Medium.
• Maximum output: approximately 1,700m³/minute / 60,000 cubic feet/minute.
• Fog output adjustment: 5–100%.
• Independent fan-speed adjustment: 5–100%.
• Disconnectable dispersion fan.
• Maximum-output duration with Continuous Mode disabled: 35 seconds.
• Continuous Mode automatically adjusts output for longer bursts.
• Warm-up time: approximately 16.5 minutes.
• Fluid consumption: 38–180ml/minute.

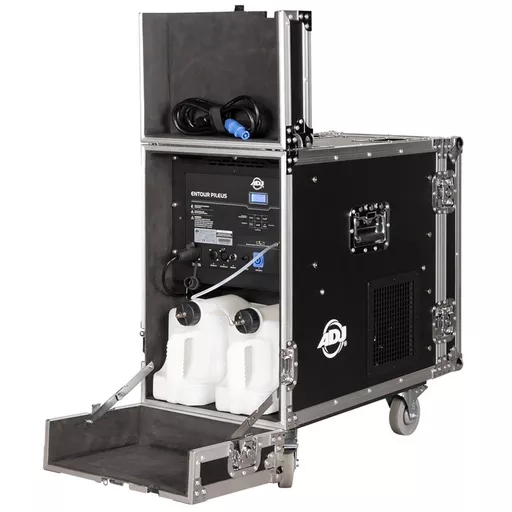

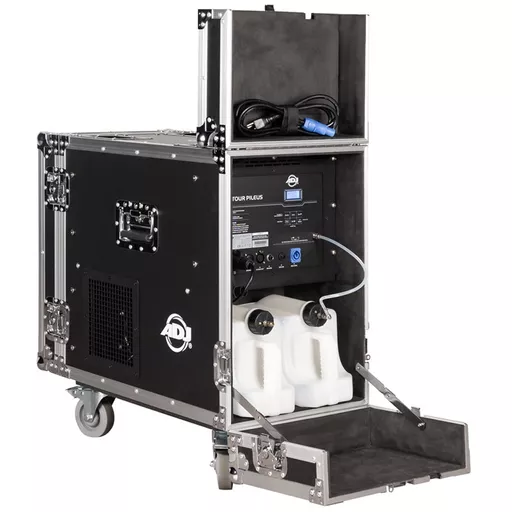

• Two 5.6-litre fluid tanks, providing 11.2 litres total capacity.
• Single-tank operation with manual feed-hose changeover.
• Onboard timer control.
• LCD display with four-button interface.
• DMX modes: 1, 2 or 4 channels.
• 5-pin XLR DMX input and output.
• 4-pin XLR connection for an optional remote controller.
• 30-second self-cleaning cycle.
• UK/EU operating supply: AC 230V, 50Hz.
• Maximum power consumption: 2150W.
• Locking power input connection.
• Over Voltage Protection.
• Fan-cooled construction.
• Maximum ambient operating temperature: 40°C.

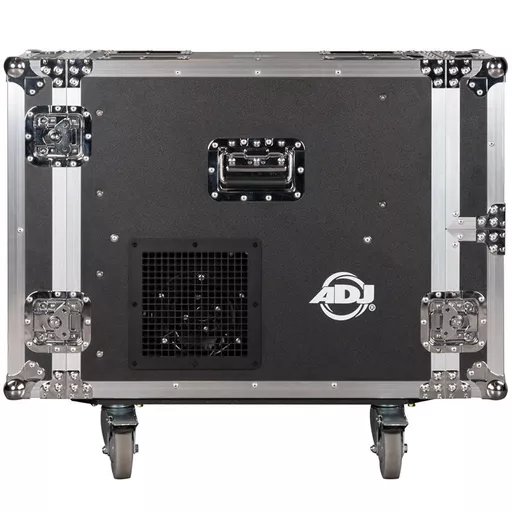

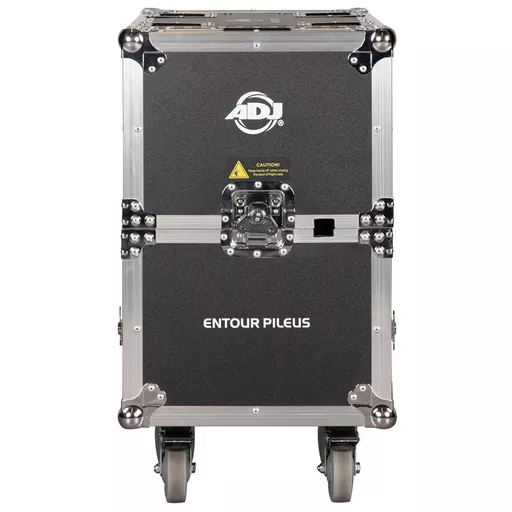

• Integrated road case with heavy-duty locking castors.
• Indoor use.
• Manufacturer part number: 1411100035.
• Dimensions including wheels (L × W × H): 841 × 408 × 829mm.
• Weight: 63kg.

Applications

The Entour Pileus suits concert stages, theatre productions, indoor entertainment venues and professional event installations requiring both fog bursts and more restrained atmospheric coverage. Its combination of adjustable output, DMX operation and transport-ready construction makes it a versatile addition to a production or rental inventory.

Please note: This item can only be delivered to Mainland UK - delivery is a pallet delivery and someone must be available to receive the item on the day of delivery which will be advised.  This item is sold as a professional grade commercial product and therefore is excluded from our 14 day change of mind return policy.


FAQs

Q: Can the Entour Pileus produce both fog and haze-style effects?
A: Yes. It produces dense fog and a finer faze effect using water-based fog fluid, with adjustable fan speed helping control dispersion.

Q: Does it automatically switch between the two fluid tanks?
A: No. It uses one tank at a time. The operator manually transfers the feed hose to the second tank.

Q: Can it run continuously at maximum output?
A: Maximum-output bursts are specified at up to 35 seconds with Continuous Mode disabled. Continuous Mode regulates output to allow longer bursts.

Q: Can it be controlled from a DMX lighting desk?
A: Yes. It has 5-pin DMX input and output with selectable 1-, 2- and 4-channel modes.

Q: Is a flight case included?
A: Yes. The machine is housed in an integrated road case with locking castors.
