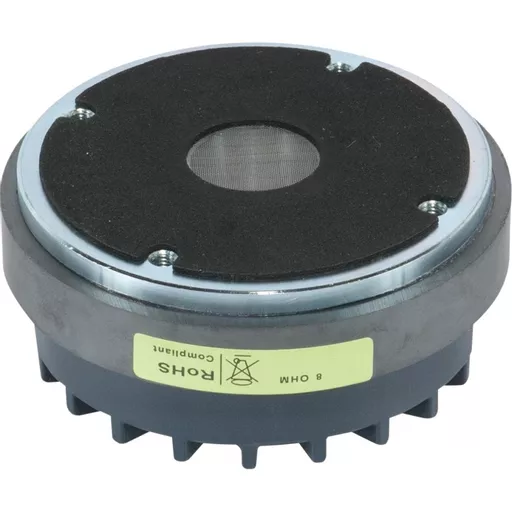

Fane CD.131 8 Ohm Bolt On Compression Driver

Brand: Fane

Fane CD.131 8 Ohm Bolt On Compression Driver

Product Code: FA120

£49.00

8 in stock

2 to 4 Working Days Delivery

Qty

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later

455 reviews on

Product Details

The CD131 is a 1 inch (25.4mm) small format diaphragm compression driver. The 1 inch (25.4mm) exit is an industry standard. The CD-131 combines high BL and a very lightweight diaphragm assembly, producing high output that offers extended bandwidth and a well defined frequency response to 18 kHz. The driver has a rated low frequency response limit of 2 kHz and has a smooth response throughout its bandwidth. The CD131 features an industry standard bolt on mounting system that is ideally matched to commercially available bolt on horns.

1” Standard Throat
Titanium diaphragm.
1.375” / 34.4 mm Aluminum Voice Coil
30 W (AES).
Screw fit mounting

Diameter "/ mm 1 / 25.4 mm
Power (AES) 30
Frequency Response (Hz) 2 kHz - 18 kHz
Impedance (Ohms) 8
Sensitivity (dB) 106 dB
Throat Size " / mm 1" / 25.4 mm
Voice Coil Diameter " / mm 1.375" / 34.4 mm
Product Dimensions (mm) 90 x 44
Weight (kg) 0.91

Fane CD.131 8 Ohm Bolt On Compression Driver

Fane CD.131 8 Ohm Bolt On Compression Driver

£49.00
