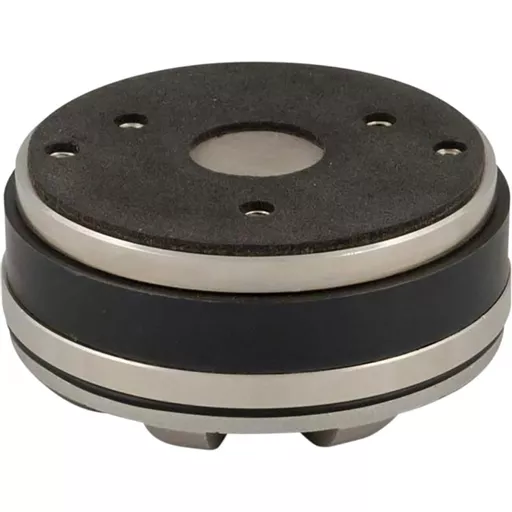

Fane CD.140 8 Ohm Bolt On Compression Driver

FA122



Product Code: FA122

Brand: Fane



Fane CD.140 8 Ohm Bolt On Compression Driver

Brand: Fane

Fane CD.140 8 Ohm Bolt On Compression Driver

Product Code: FA122

£99.00

8 in stock

2 to 4 Working Days Delivery

Qty

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later




The CD140 is an excellent choice for professionals who are looking to achieve high sound pressure level performance and clarity of sound from compact dimension. The compression driver exit diameter is an industry standard 1 inch (25.4mm). The CD140 combines high BL and a lightweight diaphragm assembly to produce a very high output device that also features extended bandwidth and well defined frequency response. TheCD140 is optimised for high performance system designs. The driver has a rated low frequency response limit of 2 kHz and features extended response to 18 kHz. The throat diameter and fixings are industry standard and will will match to commercially available high frequency horns. The ferrite based permanent magnetic system produces a very high efficiency to weight and size ratio. This makes the CD140 ideal for high level professional touring applications as well as high level fixed installation.

  • 1.75” / 43mm Copper clad aluminium voice coil.
  • 1” Exit ferrite magnet compression driver.
  • Copper inductance ring for extended response.
  • Ferrofluid cooled.
  • Titanium diaphragm with double sinusoidal roll surround (titanium).
  • 40 Wrms (AES standard).
  • Self-aligning diaphragm for easy field replacement.

  • Diameter "/ mm 1” / 25.4 mm
  • Power (AES) 40 w (A.E.S.)
  • Frequency Response (Hz) 2 kHz - 18 kHz
  • Impedance (Ohms) 8
  • Mounting Bolt On
  • Sensitivity (dB) 105 dB
  • Throat Size " / mm 1" / 25.4 mm
  • Voice Coil Diameter " / mm 1.75" / 44 mm
  • Product Dimensions (mm) 51 x 102
  • Net weight (kg) 1.54
