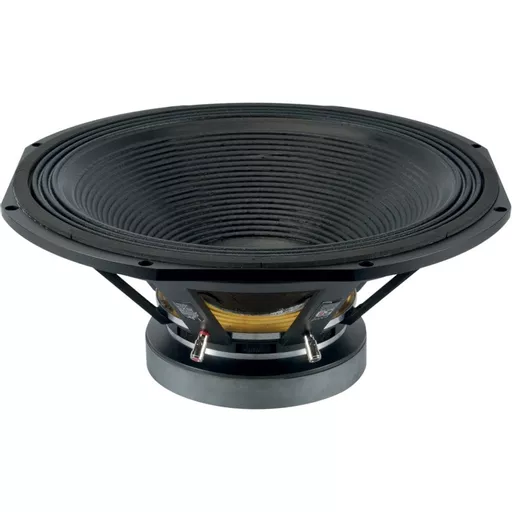

Fane Colossus Prime 18XS 8 Ohm High Output Bass Driver

FA115



Product Code: FA115

Brand: Fane



Fane Colossus Prime 18XS 8 Ohm High Output Bass Driver

Brand: Fane

Fane Colossus Prime 18XS 8 Ohm High Output Bass Driver

Product Code: FA115

£349.00

6 in stock

2 to 4 Working Days Delivery

Qty
Qty Price per item Savings
2 - 3 £339.00 £10.00
4 + £329.00 £20.00

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later




The Prime 18XS is intended for use as a high output bass driver in multi-way systems and features a 4 inch ‘sandwich’ (inside and outside windings) voice coil, immersed in a symmetric magnetic field yielding increased linearity and lower distortion. This, coupled with laminated silicone suspensions, a large Xmax of 12 mm with peak-to-peak travel of 60 mm, ensures fast accurate bass at high levels of excursion. The cone membrane, manufactured from polycellulose, is much stronger and more durable than conventional paper pulp alternatives. This allows the driver to combine high sensitivity with the structural integrity required to produce undistorted low frequencies at extreme sound pressure levels. The driver handles 1200 Watts (A.E.S.) continuous and can cope with peaks in excess of 4800 Watts. This is due to advanced thermal management in the form of vented die-cast chassis and increased motor system venting. These measures effectively remove heat from the voice coil, resulting in extremely low power compression. The Prime 18XS exhibits 100 dB sensitivity and can deliver bass down to 29 Hz (-6 dB) in a 200 Litre ported enclosure.

  • Highest grade Y35 ferrite magnet structure.
  • For bass reflex and scoop enclosure designs. Also works well in horn loaded systems.
  • 64 mm peak to peak maximum linear excursion.
  • Fibre loaded, UK manufactured cone offering increased strength, durability, and performance.
  • Aluminium demodulation ring.
  • Low interference flux path.




  • Diameter "/ mm 18” / 457.2 mm
  • Power (AES) 1200 W (A.E.S.)
  • Diameter (mm) 457.2 mm
  • Frequency Response (Hz) 35 Hz - 500 Hz
  • Impedance (Ohms) 8
  • Magnet Weight (oz) 145 oz
  • Peak Music Power (W) 4800 W
  • Sensitivity (dBV/Pa) 100 dB
  • Voice Coil Diameter " / mm 4.0" / 101.6 mm
  • Product Dimensions (mm) 216 x 485
  • Net weight (kg) 15.3
