ADJ 40 HEX IP Panel IP65 Wash Light with 40 x 20w HEX LEDs

40HEXIP



Product Code: 40HEXIP

Brand: ADJ



ADJ 40 HEX IP Panel IP65 Wash Light with 40 x 20w HEX LEDs

Brand: ADJ

ADJ 40 HEX IP Panel IP65 Wash Light with 40 x 20w HEX LEDs

Product Code: 40HEXIP

£1269.00

8 in stock

2 to 3 Working Days Delivery

Qty

User Manual

Download now

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later

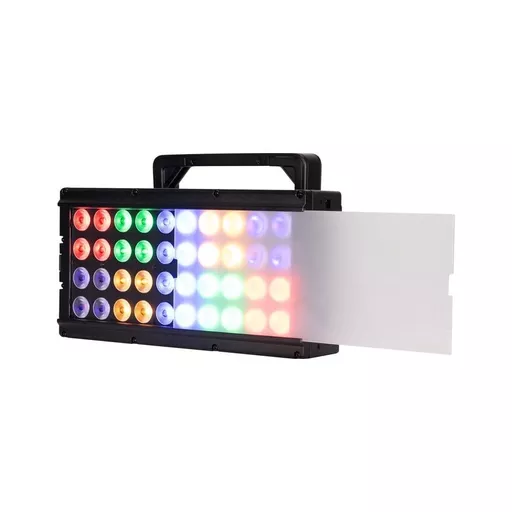

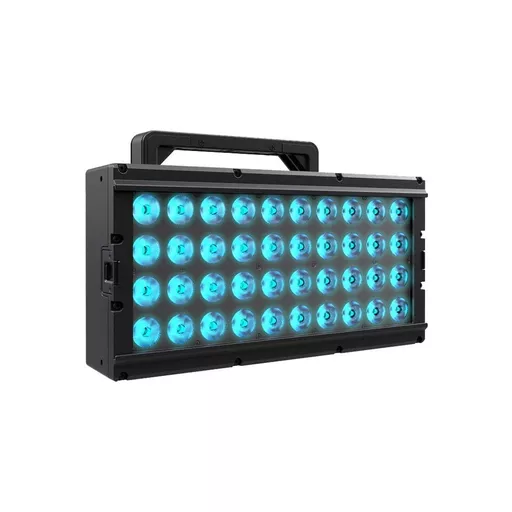

The ADJ 40 HEX Panel IP is a versatile, IP65-rated fixture designed for both indoor and outdoor applications as a wash light, blinder, or colour strobe. It is equipped with 40x 20W HEX LEDs (6-in-1: RGBAL+UV) and features 10 independently controllable sections with Pixel Zone Control. Its durable all-metal, black housing is IP65-rated, offering protection against dust, sand, moisture, and liquids. A magnetic, removable filter frame allows for the addition of a diffusion filter to adjust the beam angle._x005F_x000D__x005F_x000D_

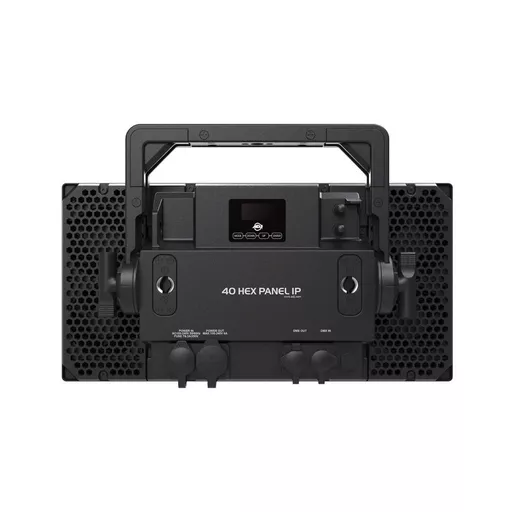

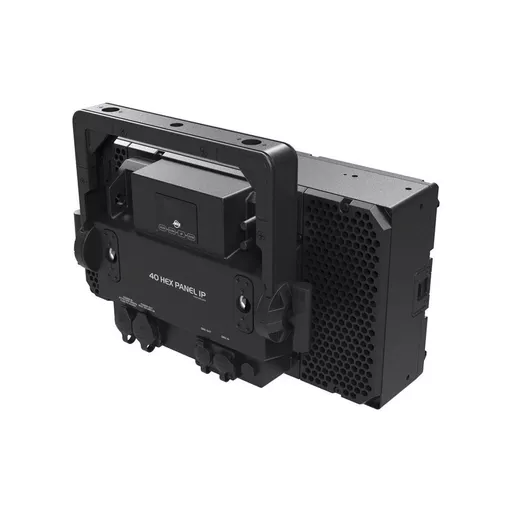

The rear panel includes IP65-rated 5-pin DMX In/Out and power locking In/Out connections, enabling seamless daisy chaining of power and data. Both the DMX and power ports are shielded with rubber protective covers. An intuitive OLED display with touch-sensitive buttons ensures easy access to the fixture's functions.

Perfect for film and broadcast, the 40 HEX Panel IP is flicker-free and offers various DMX control modes, dimming options, and LED refresh rate settings. Aria X2 wireless management system is built-in to the fixture for over the air firmware/software updates.


  • LED: 40x 20W HEX (6-In-1) RGBAL+UV LEDs (50,000 hr.)
  • Beam Angle: X = 28.61°, Y = 23.72°
  • Field Angle: X = 50.82°, Y = 44.95°
  • Lumens: 19,590
  • IP65 rated - protects from dust, sand, moisture, water
  • Aria X2 Management System
  • All-metal construction with black housing
  • Includes heavy-duty bracket
  • Flicker free for film and broadcast
  • Linear variable white temperature control
  • OLED display with function buttons
  • All-metal heavy-duty housing built to last in outdoor or touring applications
  • 24 DMX Control Modes; 6ch 1G / 12Ch 1G / 15Ch 1G / 16Ch 1G / 20Ch 1G / 24Ch 1G / 12Ch 2G / 20Ch 2G / 24Ch 2G / 27Ch 2G / 29Ch 2G / 36Ch 2G / 30Ch 5G / 40Ch 5G / 60Ch 5G / 63Ch 5G / 68Ch 5G / 72Ch 5G / 60Ch 10G / 70Ch 10G / 120Ch 10G / 123Ch 10G / 128Ch 10G & 132Ch 10G modes
  • 4 Control Groups: 1 / 2 / 5 & 10 Groups
  • 0-100% Dimming + smooth 16-bit Dimming
  • 5 Dimming Curve Modes
  • Control Mode: DMX512, RDM (Remote Device Management)
  • LED Refresh Rate: Multiple settings
  • With Wired Digital Communication Network
  • Data: IP65 Locking 5-pin DMX In/Out
  • Power: IP65 Locking Power In/Out
  • Power 100-240V 50Hz/60Hz (Auto Sensing)
  • Max Power Consumption: 492W @220V, Max Power Link: 4pcs @230V
  • Fuse Protected: T4A/250V Glass Fuse (5x20MM)
  • Dimensions (LxWxH): 417 x 296.8 x 212mm
  • Weight: 11.15 kg
