Global Truss F34 PL CA-3 Ground Support Box Sleeve Aluminium

GLF34SLEEVEPL



Product Code: GLF34SLEEVEPL



Global Truss F34 PL CA-3 Ground Support Box Sleeve Aluminium

Global Truss F34 PL CA-3 Ground Support Box Sleeve Aluminium

Product Code: GLF34SLEEVEPL

£1259.00

Out of Stock

2 to 3 Working Days Delivery

Out of stock.

User Manual

Download now

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later

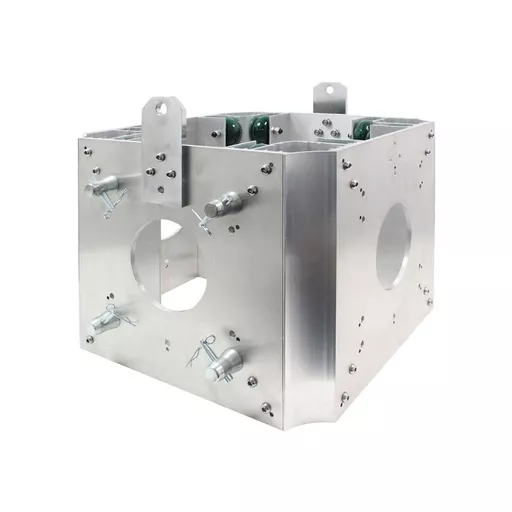

Raise the roof with Global Truss! The Global Truss aluminium CA-3 truss sleeve is designed to work in conjunction with the aluminium Top Pulley and Steel Ground Support Base to enable the simple lifting of the roof of a stand or cross bar. The CA-3 sleeve block slides over the F34PL truss, with conical points on all 4 sides for use with F34PL, F44 P or F44 standard.  Supplied with 8 pieces of PL half conical, which may be interchanged with Standard half conicals if required. Additional half conicals available separately.




  • Sleeve block slides over the F34PL truss with conical points on all 4 sides
  • The side conical points can be used with F34PL or F44 P/F44 truss lengths

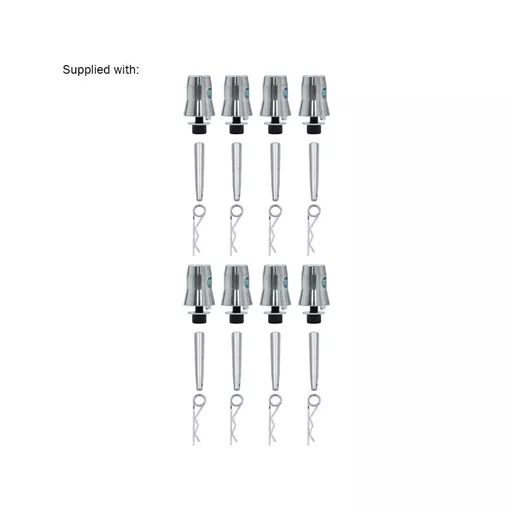

  • Supplied with 8 x Half Conicals, Pins and R-Clips (if using with F44 you will need standard conicals for this - sold separately)
  • Max load lifted with one side used: 1450kg
  • Max load lifted with 4 sides used: 3360kg
  • Dimensions: 480 x 500 x 500mm
  • Weight: 35.0kg
