Chord XU1-H UHF 1 Channel Handheld UHF Microphone System

XU1-H



Product Code: XU1-H

Brand: Chord



Chord XU1-H UHF 1 Channel Handheld UHF Microphone System

Brand: Chord

Chord XU1-H UHF 1 Channel Handheld UHF Microphone System

Product Code: XU1-H

£120.00

38 in stock

2 to 3 Working Days Delivery

Qty

User Manual

Download now

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later

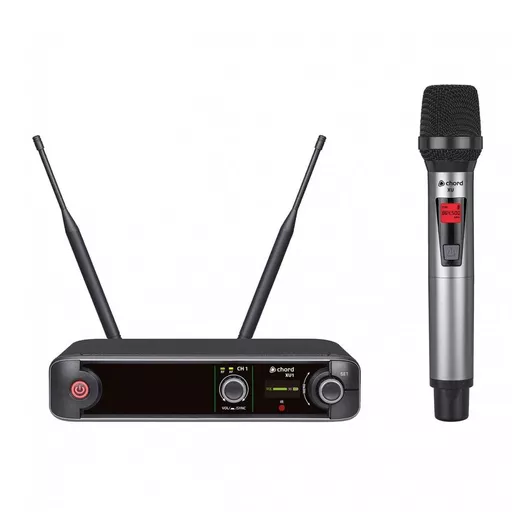

XU series wireless microphone systems offer pro-level features in a compact receiver with premium microphone transmitters. Supplied as a half-width 1U rack receiver with 1 channel of handheld microphone transmitter. The receiver is a true diversity type with dual antennas and internal distribution for minimizing dropouts. The front panel has a volume control and indicator LEDs per channel alongside a colour TFT display with level indications for each channel and settings for channel frequencies and colours. Each transmitter also has its own LCD display for frequency and battery status, with a backlight that can be set to one of 6 colours for identification. Carrier frequencies are arranged in 10 groups with carriers in both the UK/EU license-free UHF and PMSE licensed duplex gap UHF bands. Each set is supplied with hardware for mounting into a 1U rack space with extension cables to enable front mounting of the antennas. For a wireless microphone system with straightforward operation and intuitive features, the XU series delivers freedom and reliable operation to vocalists, presenters and instructors in a compact and convenient package.

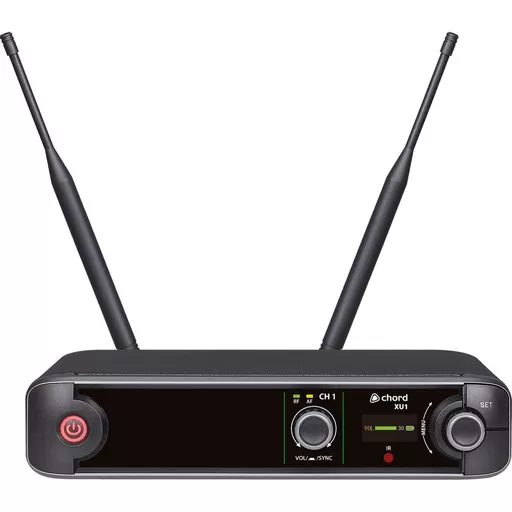

  • Compact half-width rack receiver
  • True diversity antennas with internal distro for reliable reception
  • 10 groups of 9 selectable UHF carrier frequencies
  • Selectable backlight colours for each channel

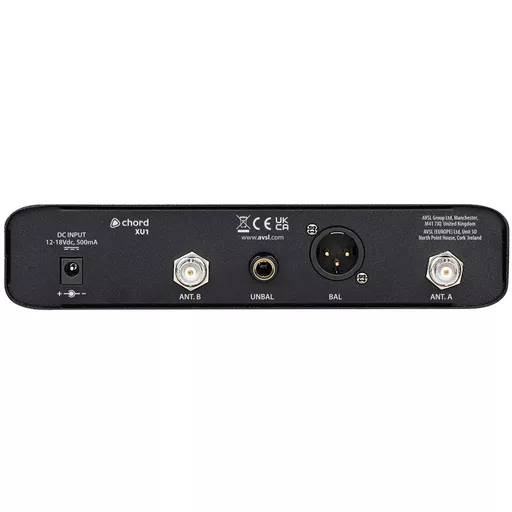

  • 1 XLR outputs + 1 x 6.3mm output
  • Settings sync I.R. from receiver to transmitters
  • Colour TFT display for settings menu

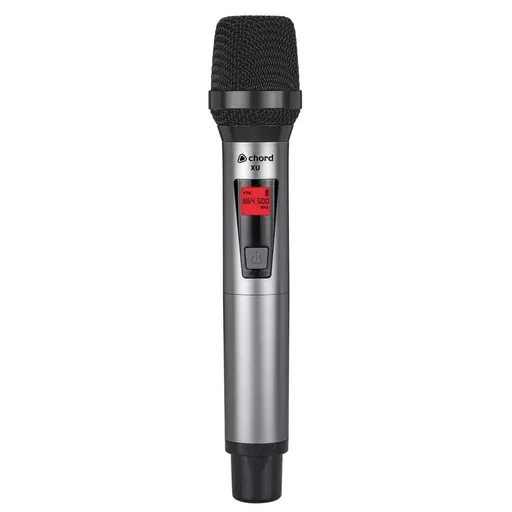

  • Weight : handheld transmitter 246g (no battery)
  • Dimensions : handheld transmitter 258 x 47mmØ
  • Power supply 12-18Vdc, 500mA (mains adaptor supplied)
  • Batteries 2 x AA per transmitter
  • Carrier frequencies 823-832 / 863-865MHz
  • Wireless range Up to 60m
  • Antenna connection : 2 x BNC
  • Dimensions : receiver 205 x 205 x 44mm
  • Weight : receiver 755g
