Chord XU4-H UHF 4 Channel Handheld UHF Microphone System

XU4-H



Product Code: XU4-H

Brand: Chord



Chord XU4-H UHF 4 Channel Handheld UHF Microphone System

Brand: Chord

Chord XU4-H UHF 4 Channel Handheld UHF Microphone System

Product Code: XU4-H

£299.00

57 in stock

2 to 3 Working Days Delivery

Qty

User Manual

Download now

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later

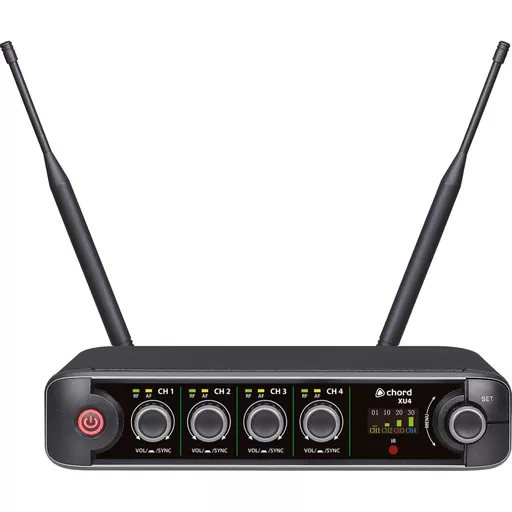

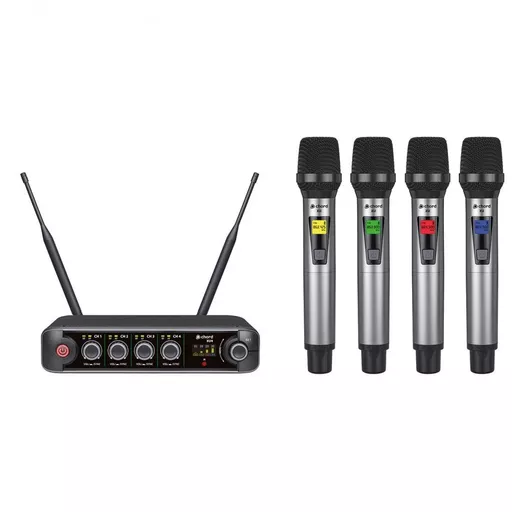

XU series wireless microphone systems offer pro-level features in a compact receiver with premium microphone transmitters. Supplied as a half-width 1U rack receiver with 4 channels of handheld microphones. The receiver is a true diversity type with dual antennas and internal distribution for minimizing dropouts. The front panel has a volume control and indicator LEDs per channel alongside a colour TFT display with level indications for each channel and settings for channel frequencies and colours. Each transmitter also has its own LCD display for frequency and battery status, with a backlight that can be set to one of 6 colours for identification. Carrier frequencies are arranged in 10 groups with carriers in both the UK/EU license-free UHF and PMSE licensed duplex gap UHF bands. Each set is supplied with hardware for mounting into a 1U rack space with extension cables to enable front mounting of the antennas. For a wireless microphone system with straightforward operation and intuitive features, the XU series delivers freedom and reliable operation to vocalists, presenters and instructors in a compact and convenient package.

In the Box

  • XU-series true diversity UHF receiver

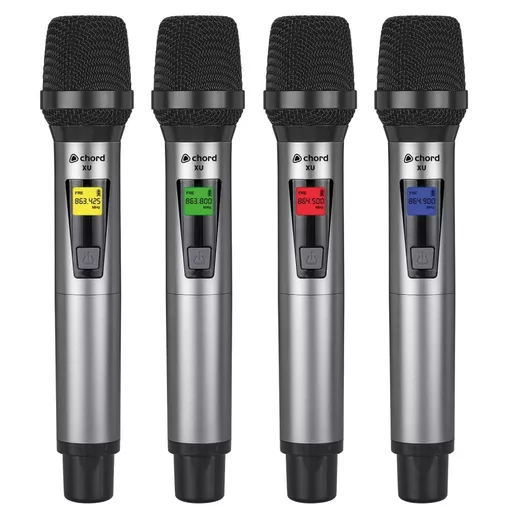

  • 4 handheld transmitters
  • 2 x UHF antennas
  • 2 x BNC antenna extension leads
  • Rack-mounting brackets for 1 or 2 receivers in a 19" 1U space
  • UK power adaptor
  • 6.3mm male to male cable
  • 8 x AA batteries

  • Compact half-width rack receiver
  • True diversity antennas with internal distro for reliable reception
  • 10 groups of 9 selectable UHF carrier frequencies
  • Selectable backlight colours for each channel

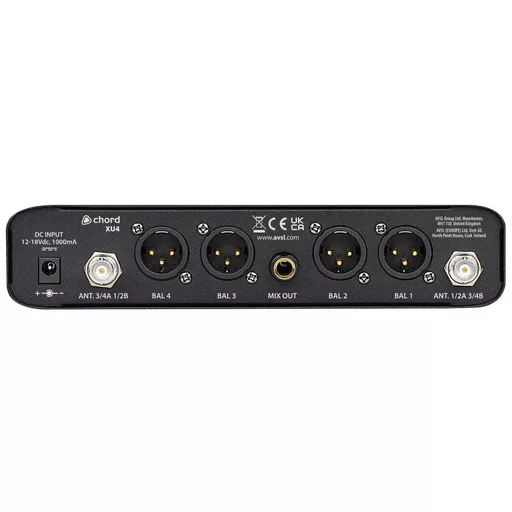

  • 4 x XLR outputs + 1 x 6.3mm mix output
  • Settings sync I.R. from receiver to transmitters
  • Colour TFT display for settings menu
  • Weight : handheld transmitter 246g (no battery)
  • Dimensions : handheld transmitter 258 x 47mmØ
  • Power supply 12-18Vdc, 1000mA (mains adaptor supplied)
  • Batteries 2 x AA per transmitter
  • Carrier frequencies 823-832 / 863-865MHz
  • Wireless range Up to 60m
  • Antenna connection 2 x BNC
  • Dimensions : receiver 205 x 205 x 44mm
  • Weight : receiver 755g
