JTS UF-20DA UHF Dual Channel Microphone Receiver c/w Dante

JTSUF20DA



Product Code: JTSUF20DA

Brand: JTS

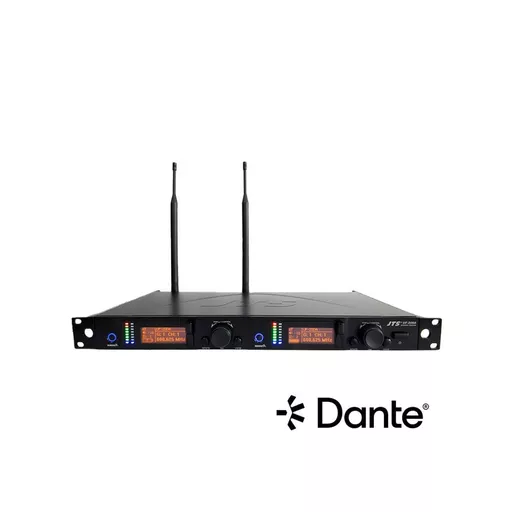

JTS UF-20DA UHF Dual Channel Microphone Receiver c/w Dante

Brand: JTS

JTS UF-20DA UHF Dual Channel Microphone Receiver c/w Dante

Product Code: JTSUF20DA

£849.00

15 in stock

2 to 3 Working Days Delivery

Qty

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later

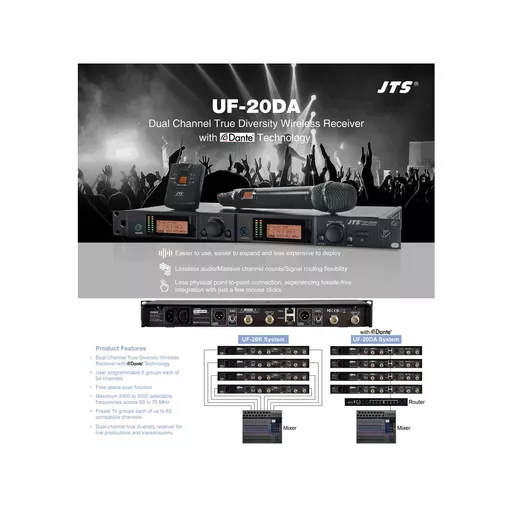

JTS' UF-20 series has proved a staple in many installed and production situations for many years. Now JTS have stepped up the game with the NEW UF-20DA - Featuring all that you love about the UF-20R, now with Dante integration for networked audio and control.

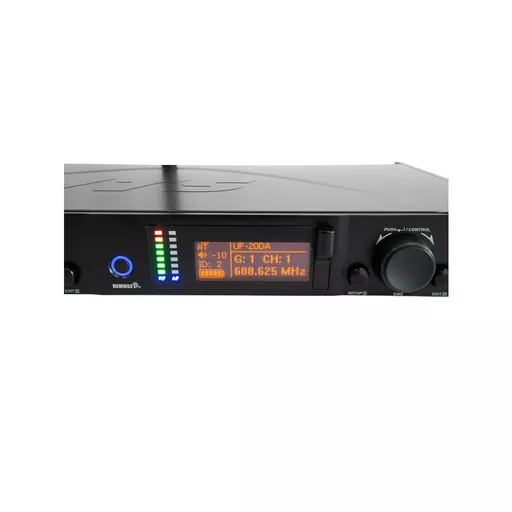

Users will find the familiar menu and workflow from the UF-20R in the UF-20DA, making the transition into the next generation simple and hassle-free whilst still integrating the Dante configuration through the front of the receiver and through Dante Controller. The embedded Dante Ultimo chip is capable of up to 96kHz sample rates with selectable bitrates of 16/24/36-bit. This is alongside the existing balanced outputs on each channel for the option of digital or analogue audio without needing to change the configuration of the receiver.

UF-20DA is compatible with existing transmitters within the UF-20 family, enabling the use of JSS-20 dynamic microphones, JSS-22 condenser microphones and UF-20TB bodypack transmitters with the new receiver. The UF-20DA features JTS' patented REMOSET technology for synchronisation of transmitter settings over 2.4GHz, meaning the transmitters do not need to be brought to the receiver to apply changes to RF power, EQ, channel naming, frequency changes and input sensitivity among other things.


  • Dante Ultimo Specifications
    48/96kHz selectable sample rate
    PCM 16/24/32 encoding options
    1ms minimum latency
  • Frequency Preparation: PLL Synthesized Control
  • Frequency Setting: JTS patented obstacle-free RF REMOSET
  • Channel: Dual
  • Bandwidth: 75MHz Wideband (MAX)
  • S/N Ratio: >108dB(A)
  • T.H.D: <0.5%@1KHz
  • Chassis: 1U standard metal chassis
  • Preset Channels/Group: From group 1 - 15 up to 63 inteference-free compatible channels. 844 preset channels/group and 3000 selectable frequencies across 60 to 75Hz bandwidth
  • Display: LCD
  • Display Contents: Group, Channel, Frequency, Antenna A/B, RF/AF Level Meter, Mute Display, Transmitter Battery Status, REMOSET ID Number, User Name, Squelch
  • Receiving Mode: True Diversity
  • Audio Output Level: Maximum 6dBu
  • Frequency Response: 50Hz - 18kHz, with high,pass filter
  • Squelch: Pilot Tone & Noise Mute
  • Power Supply: 100-240V

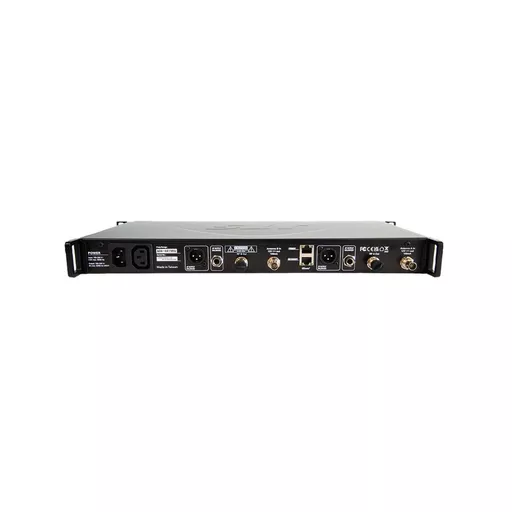

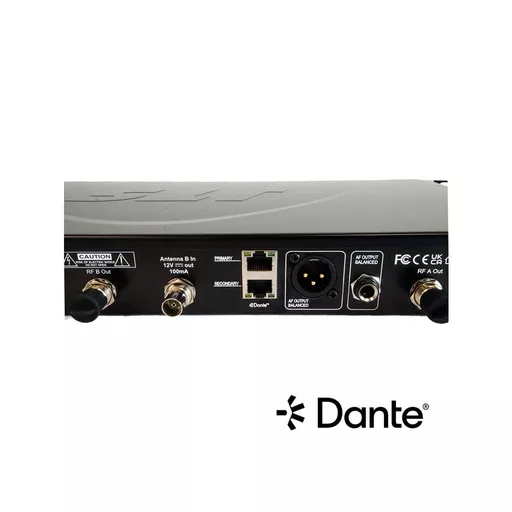

  • Output Connector: 2x XLR Balanced Socket, 2x 6.35mm jack, 2x RJ45 (for Dante ONLY)
  • Dimension mm: 480mm x 45mm x 260mm
  • Carrier Frequency Range: 606-681MHz
  • Weight: 2.9kg
