JTS UF-20S Wireless Microphone Receiver

JTSUF20S



Product Code: JTSUF20S

Brand: JTS

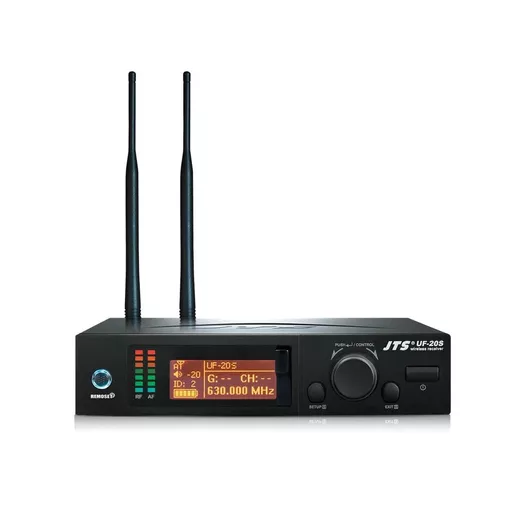

JTS UF-20S Wireless Microphone Receiver

Brand: JTS

JTS UF-20S Wireless Microphone Receiver

Product Code: JTSUF20S

£439.00

1 in stock

Next Working Day Delivery

Qty
Qty Price per item Savings
2 + £429.00 £10.00

User Manual

Download now

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later




The JTS UF-20S single channel receiver is our flagship model. It offers True Diversity reception over a massive 75MHz frequency range. Many high end features are included such as extended operating distance (200-480m), REMOSET remote control over 2.4GHz. JTS LCX circuit design technology minimizes companding noise. This now not only sends the frequency data but also transmitter’s RF power, sensitivity, low cut, key lock and user's name.

  • Preset 15 groups each of up to 63 compatible channels
  • User programmable 6 groups each of 64 channels
  • Free space scan function
  • JTS Patented obstacle-free RF
  • Function synchronizes a transmitter by pushing a button
  • RF “NO SIGNAL” alert function.
  • AF “MUTE” alert function.
  • Transmitter “LOW BATTERY” alert function.
  • Built in equalizer

  • Frequency response: 50Hz - 18kHz with High-pass filter
  • Net Dimension (WxHxD): 212 x 44 x 213.9mm
  • Sensitivity: 6dBμV, at S/N > 80dB
  • Frequency Preparation: PLL Synthesized Control
  • S/N Ratio: >108dB (A)
  • Display: LCD
  • Display Contents: Group, Channel, Frequency, Antenna A / B, RF / AF Level Meter, Mute Display, Transmitter Battery Status, REMOSET ID Number, User Name, Squelch
  • Audio Output Level: Maximum 6dBu
  • Squelch: Pilot Tone & Noise Mute
  • Output Connector: 1x XLR Balanced Socket, 1x 6.3mm Unbalanced Jack Socket
  • Carrier Frequency Range: 606-681MHz
  • Chassis: 1/2U Standard Width Metal Chassis, 1U Standard Height
  • AF Output Impedance: 600Ω
  • Frequency Setting: JTS Patented obstacle-free RF Remoset
  • Receiving Mode: True Diversity
  • Bandwidth: 60-75MHz Wideband
  • Power Supply: 100-240v
  • Preset Channels/Groups:* From group 1 ~ 15 up to 63 interference-free compatible channels. * 844 preset channels / group and 3000 selectable frequencies across 63 to 75 Hz Bandwidth. * User programmable from U1 ~ U6 each of 64 channels reserved.
