JTS USP-900 Passive UHF Antenna Splitter/UHF Combiner

USP-900



Product Code: USP-900

Brand: JTS



JTS USP-900 Passive UHF Antenna Splitter/UHF Combiner

Brand: JTS

JTS USP-900 Passive UHF Antenna Splitter/UHF Combiner

Product Code: USP-900

£45.00

42 in stock

2 to 3 Working Days Delivery

Qty

User Manual

Download now

Free Standard Delivery over £50

Spend another £50 to qualify

PayPal Pay Later

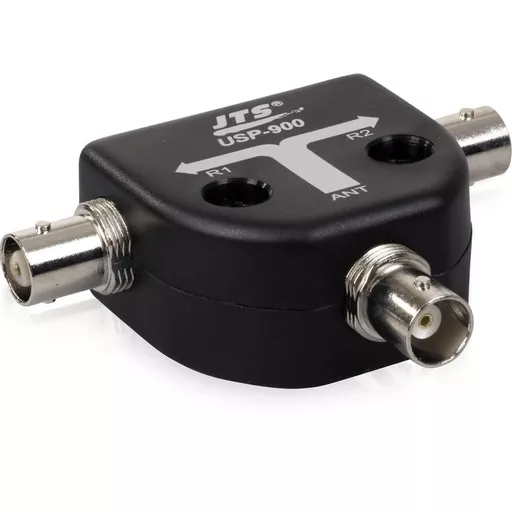

The JTS USP900 is a high quality passive UHF antenna splitter and combiner designed for professional wireless audio systems. It allows a single antenna to be connected to two separate receivers, helping to reduce equipment clutter and improve signal distribution.

With a wide frequency range covering 10 MHz to 1000 MHz and optimised performance between 470 and 870 MHz, the USP900 ensures reliable operation across most wireless microphone systems. It features low insertion loss of just 2 dB and strong isolation of 20 dB, delivering clear signal transfer with minimal interference.



Built with 50 ohm impedance and a low VSWR of 1.2, it maintains excellent RF matching for stable signal performance. Three BNC connectors provide easy integration with standard antenna cables, and the compact housing makes it ideal for use in rack systems, stage environments, or portable setups. DC suppression is built-in to protect connected equipment from unwanted voltage backfeed.


  • Frequency Range: 10 MHz to 1000 MHz
  • Optimised Frequency Band: 470 to 870 MHz
  • Insertion Loss: 2 dB
  • Isolation: 20 dB
  • Impedance: 50 ohm
  • VSWR: 1.2
  • Connectors: 3 x BNC jacks
  • Dimensions: 72 x 24 x 56 mm
  • Weight: Approx. 63 grams



The JTS USP900 is ideal for live sound setups, broadcast applications, and multi-receiver wireless systems where clean signal distribution and equipment efficiency are essential. Its passive design means no power is required, making it a simple and reliable solution for any RF setup.
