Q-Audio QWM1970 6-Way Handheld Wireless System with ADU

BUNDLE569



Product Code: BUNDLE569

Brand: Q-Audio



Q-Audio QWM1970 6-Way Handheld Wireless System with ADU

Brand: Q-Audio

Q-Audio QWM1970 6-Way Handheld Wireless System with ADU

Product Code: BUNDLE569

£849.00

16 in stock

2 to 3 Working Days Delivery

Qty

PayPal Pay Later

Klarna

Free Standard Delivery over £50

Spend another £50 to qualify




The Q-Audio QWM1970HH-6W is a complete six-way wireless package designed for venues and teams that need reliable, easy-to-use radio mics across multiple performers. At its heart are three dual true diversity receivers paired with six Handheld transmitters.

To keep RF stable across all channels, the bundle includes the Q-Audio QAD-4 antenna distribution unit and the required BNC leads. The QAD-4 routes a pair of antennas to up to four diversity receivers, simplifying cabling and improving reception in busy RF environments. It is a dual 1:4 active splitter designed for wideband UHF operation, with loop-through for system expansion and DC power distribution for your receivers.

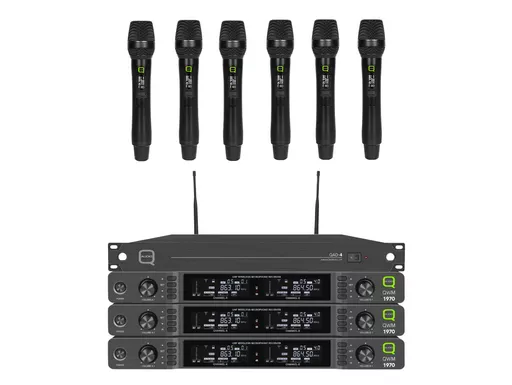

Complete 6 way handheld package
Supplied in channel 38 (606 - 614MHz)

This Bundle Includes:
3x QWM 1970 True Diversity Dual Receivers
6x QWM 1970BP Handheld Transmitters
1x QAD 4 Antenna Distribution Unit

Receiver
Frequency: 606 -614 MHz
Bandwidth: 8MHz
Dynamic Range: 96dB
Distortion: <0.1%
Signal/Noise Ratio: 96dB
Frequency Response: 30Hz - 20kHz ±2dB
Signal/Noise Ratio: 90dB
Receiving Sensitivity: -95dBm
Power Supply: DC 12V 1A

Handheld Transmitter
Frequency: 606 - 614 MHz
Frequency Switching: IR Sync
Harmonic Radiation: <- 50dBc
Output Power: Up to 30mW
Batteries Required: 2x1.5V AA batteries
Battery life: >5h

Antenna Distribution
Bandwidth: UHF 450 - 1000 MHz
Antenna In/Link Out Connections: BNC
Antenna Inputs: 2
Antenna Link: 2
Antenna Outputs: 8
Antenna Power (via Antenna Input): 9v 100mA
Power Input Connection: 1x 12v DC Jack
Power Output Connections: 4x 12v DC Jack
