XVIVE U3 Dynamic Microphone Wireless System, 2.4 GHz

Brand: XVIVE

XVIVE U3 Dynamic Microphone Wireless System, 2.4 GHz

Product Code: XU3

£179.00

2 in stock

Next Working Day Delivery

Qty

PayPal Pay Later

Klarna

User Manual

Download now

Free Standard Delivery over £50

Spend another £50 to qualify

Product Details

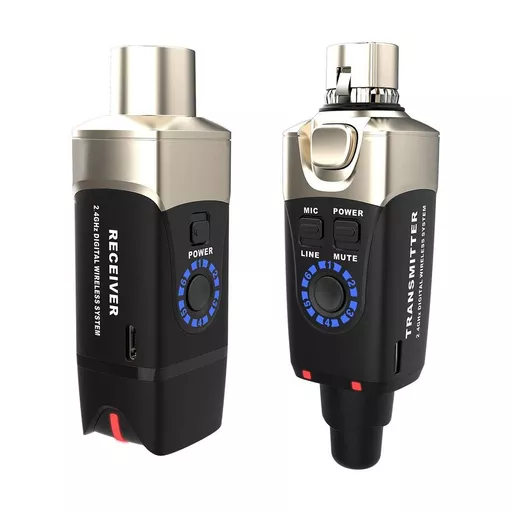

The Xvive U3 Wireless System is a plug on XLR transmitter and receiver set that makes a standard dynamic microphone wireless in seconds. It is built for performers, presenters, venues and event teams who want clean stages and fast changeovers without the complexity of traditional wireless mic systems.

Using the worldwide 2.4GHz band, the U3 delivers high resolution 24 bit 48kHz digital audio with a wide 20Hz to 20kHz frequency response, low distortion and stable performance. With 6 selectable channels and low 5ms latency, it feels natural for live vocals and speech, while giving you the freedom to move during sets and presentations.

Setup is simple. The transmitter plugs into your microphone and the receiver plugs into a mixer, interface, preamp, stage box, XLR cable or snake. It can also be used with active loudspeakers as a wireless extension for XLR cables, letting you place powered speakers without running long leads across busy floors.

Both units have internal rechargeable batteries with up to 5 hours use, can be used while charging, and are charged via USB, making the U3 a practical choice for mobile rigs and regular venue use.

Specifications

System

Tuning Bandwidth: 2.4GHz - 2.4835GHz
Working Range: Up to 90ft unobstructed (dependent on RF signal absorption, reflection, and interference)
Audio Frequency Response: 20Hz - 20kHz (-3dB) (dependent on microphone type or input signal)
Dynamic Range: 110dB
RF Sensitivity: -88dBm
RF Output Power: 10mW E.I.R.P max.
Total Harmonic Distortion: 0.2-percent
Channel Count: Up to 6 channels

U3 Transmitter

Housing: Moulded plastic and cast metal
Battery Type: 3.7V rechargeable Li-Ion, 860mA
Battery Life: Up to 5 hours
Input Connector: Balanced XLR, male
Input Impedance: 15k Ohms (1kHz)
Gain Adjustment Range: 0dB (mic), -10dB (line)
Suitable Microphone Types: XLR dynamic, battery-powered XLR condenser
Antenna Type: 1/4 wave sleeve dipole, non-removable (x 1)
Antenna Impedance: 50 Ohms
Dimensions: 31mm x 29mm x 98mm
Weight: 93g

U3 Receiver

Housing: Moulded plastic and cast metal
Battery Type: 3.7V rechargeable Li-Ion, 860mA
Battery Life: Up to 5 hours
Output Connector: Balanced XLR, female
Output Impedance: 470 Ohms (1kHz)
Maximum Output Level: 2.8Vp-p
Antenna Type: 1/4 wave sleeve dipole, non-removable (x 1)
Antenna Impedance: 50 Ohms
Dimensions: 31mm x 29mm x 98mm
Weight: 92g

IN THE BOX
U3 transmitter
U3 receiver
USB cable
Manual

MINI FAQ
Q: Will it work with any microphone
A: It is designed for dynamic microphones, and it also supports battery powered condenser microphones.

Q: How far will it work
A: Range is rated up to 90ft line of sight, with real world performance depending on the environment.

Q: Can I use it to avoid long XLR runs to powered speakers
A: Yes, the receiver can plug into the XLR input of an active speaker, making it a useful wireless XLR extension for faster, safer setups.
